QNAP TS-431XeU-2G 4-Bay NAS Enclosure
Buy QNAP TS-431XeU-2G 4-Bay NAS Enclosure, Qnap from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quality Service
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Form factor | 1U Rackmount |
Product details
Key Features

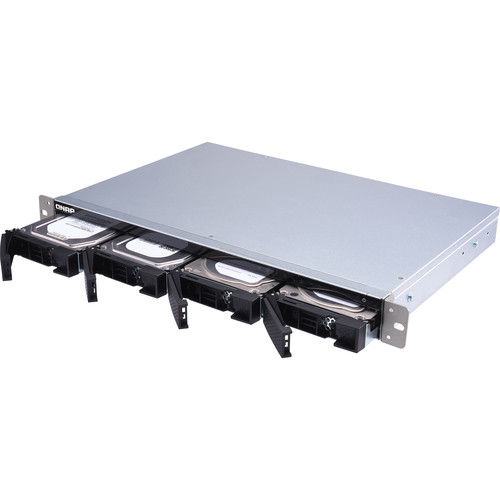

- 4 x 3.5"/2.5" SATA III Drive Bays
- 1.7 GHz Alpine AL-314 Quad-Core
- 2GB of 1600 MHz DDR3 RAM
- 1 x 10GbE SFP+ Port | 4 x 1GbE Ports
- 4 x USB 3.1 Gen 1 Ports Type-A Ports
- RAID 0, 1, 5, 6, 10, JBOD, and Single
- Up to 1055 MB/s Download Speeds
- Up to 580 MB/s Upload Speeds
- AES 256-Bit Volume Encryption
- QTS 5.0.1 Operating System
| CPU | AnnapurnaLabs Alpine AL314 32-bit ARM® Cortex-A15 4-core 1.7GHz processor | |||
| CPU Architecture | 32-bit ARM | |||
| Floating Point Unit | ||||
| Encryption Engine | ||||
| System Memory | 2 GB SODIMM DDR3 (1 x 2 GB) | |||
| Maximum Memory | 8 GB (1 x 8 GB) | |||
| Memory Slot | 1 x SODIMM DDR3 | |||
| Flash Memory | 512MB (Dual boot OS protection) | |||
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s | |||
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives | |||
| Hot-swappable | ||||
| SSD Cache Acceleration Support | ||||
| Gigabit Ethernet Port (RJ45) | 2 | |||
| 10 Gigabit Ethernet Port | 1 x 10GbE SFP+ | |||
| Wake on LAN (WOL) | ||||
| Jumbo Frame | ||||
| USB 3.2 Gen 1 port | 4 | |||
| Form Factor | 1U Short Depth Rackmount | |||
| LED Indicators | HDD 1-4, Status, USB, LAN1-3 | |||
| Buttons | Power, Reset | |||
| Dimensions (HxWxD) | 43.3 × 430 × 291 mm Excludes ear hook and the protruding part of the Power Supply Unit. | |||
| Weight (Net) | 5 kg | |||
| Weight (Gross) | 5.9 kg | |||
| Operating Temperature | 0 - 40 °C (32°F - 104°F) | |||
| Storage Temperature | -20 - 70°C (-4°F - 158°F) | |||
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | |||
| Power Supply Unit | Open-frame 100W, Input: 100V-240V ~ / 3.5A, 50Hz-60Hz | |||
| Power Consumption: HDD Sleep Mode | 12.42 W | |||
| Power Consumption: Operating Mode, Typical | 30.99 W Tested with drives fully populated. | |||
| Fan | System fan: 3 x 40mm, 12VDC | |||
| System Warning | Buzzer | |||
| Kensington Security Slot | ||||
| Standard Warranty | 3 | |||
| Max. Number of Concurrent Connections (CIFS) - with Max. M
