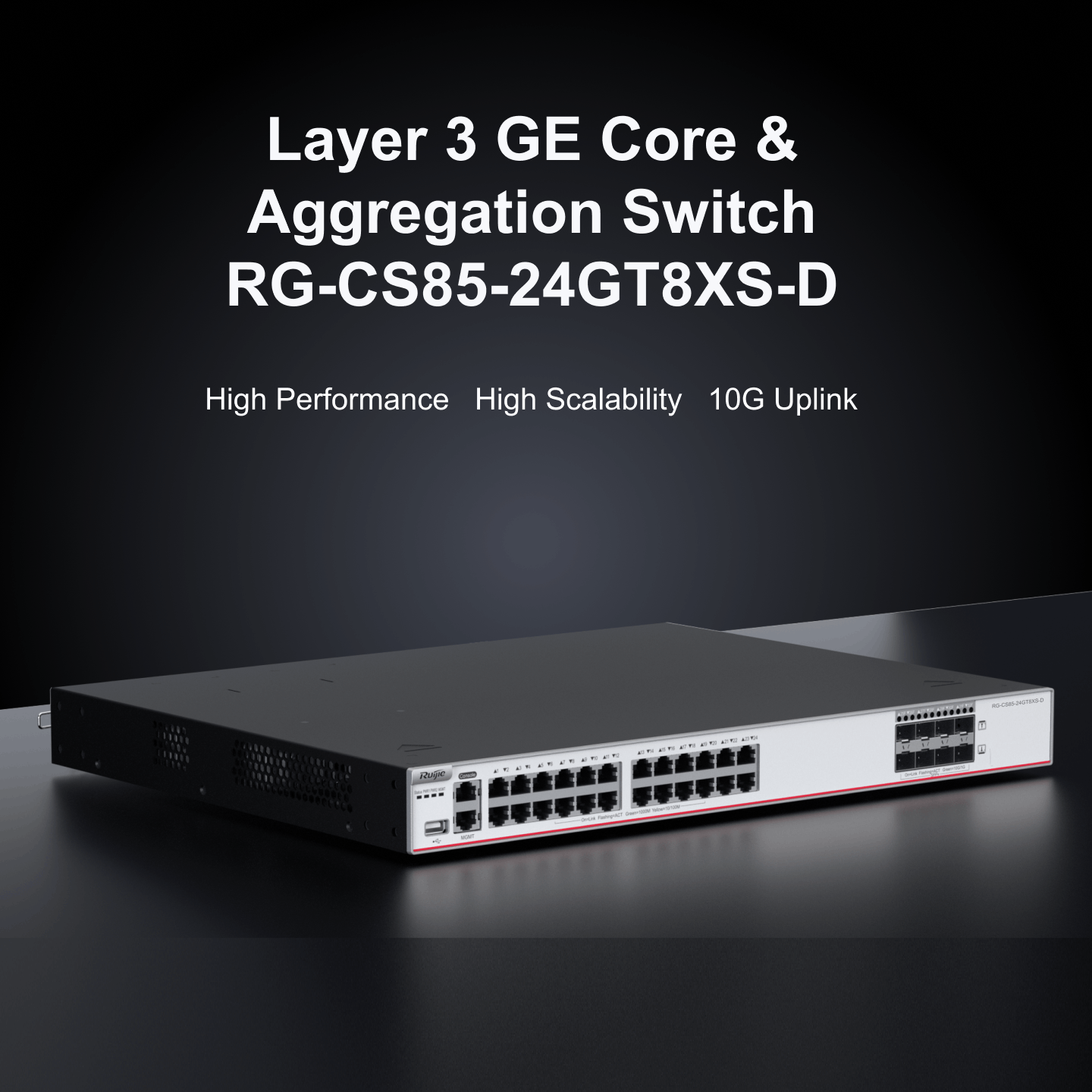

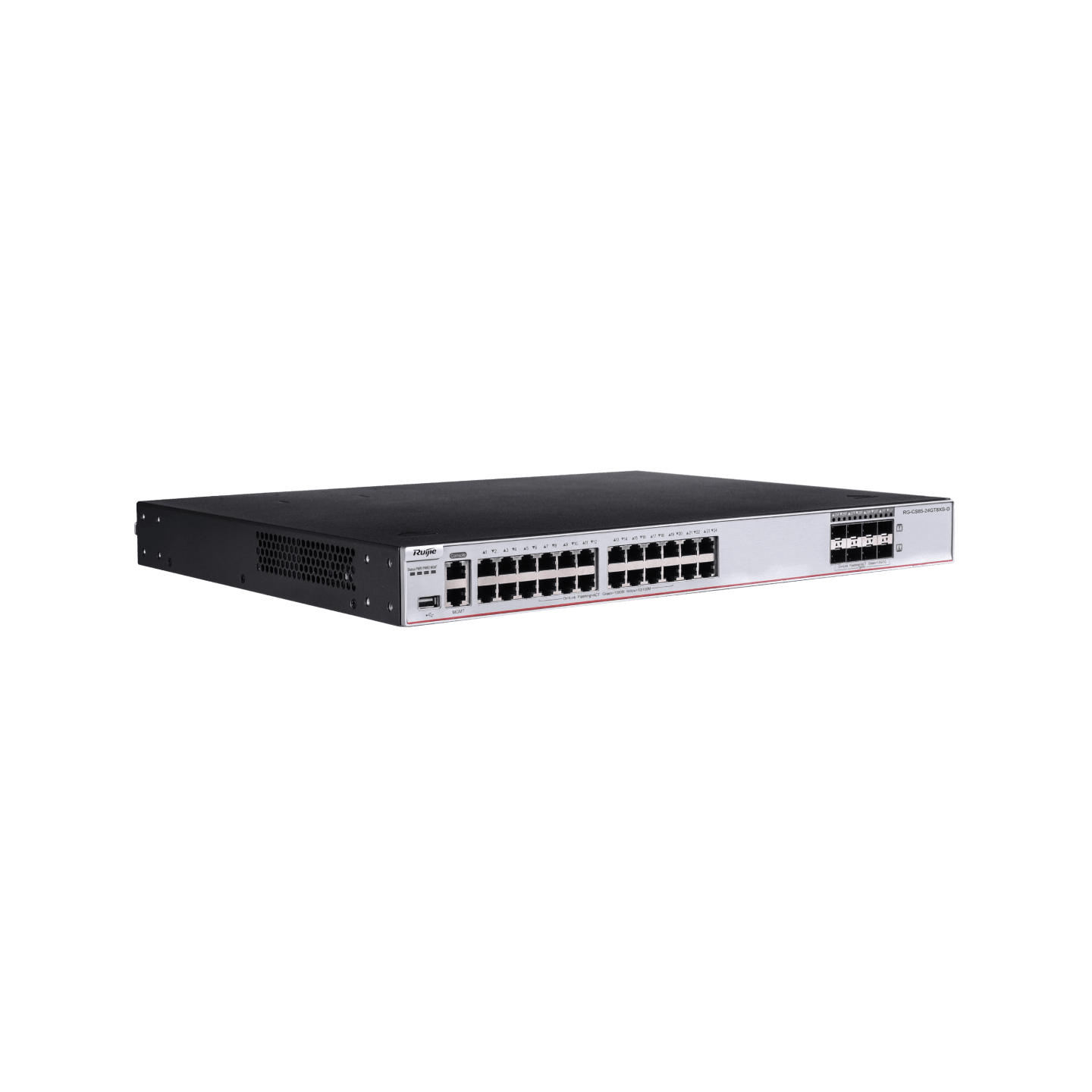

RUIJIE RG-CS85-24GT8XS-D 24-Port GE Electrical Layer 3 Enterprise-Class Core or Aggregation Switch,8 × 10G Uplink Ports
Highlight FeaturesRich port types, 24 x 1000 Mbps Ethernet ports, and 8 × 10G optical ports for uplinkHardware redundancy, guaranteed service continuity and net...
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Service ports | 24 x 10/100/1000 Mbps electrical ports, 8 x 1GE/10GE SFP+ ports |
| Switching Capacity | 880 Gbps |
| Forwarding Rate | 426 Mpps/600 Mpps |
| Operating Temperature | 0–45°C |
| Power Consumption | < 60 W (without expansion module), or < 85 W (with expansion module) |
Product details
- Rich port types, 24 x 1000 Mbps Ethernet ports, and 8 × 10G optical ports for uplink

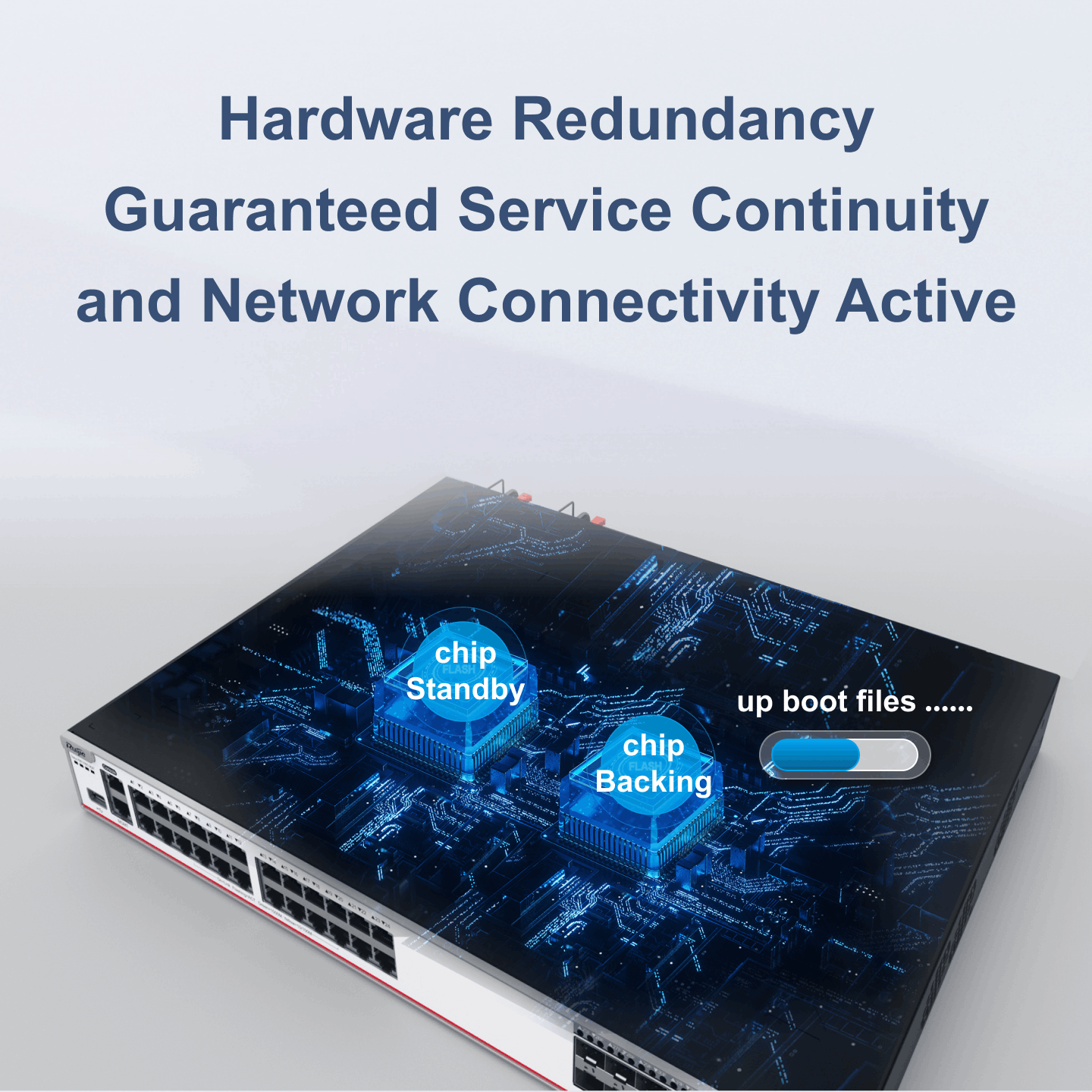

- Hardware redundancy, guaranteed service continuity and network connectivity
- VSU virtualization, flexible networking and high reliability.

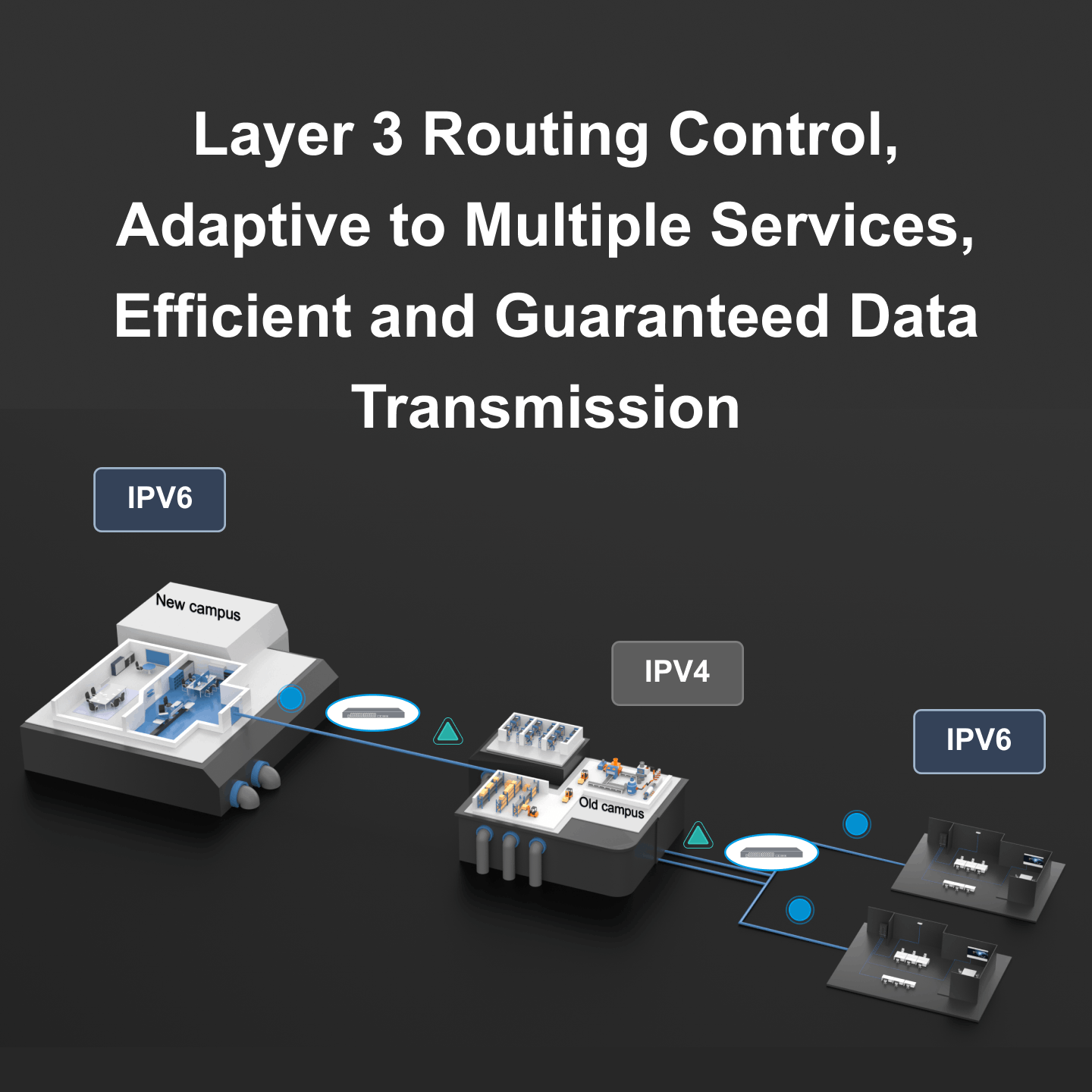

- Layer 3 routing control, adaptive to multiple services, efficient and guaranteed data transmission

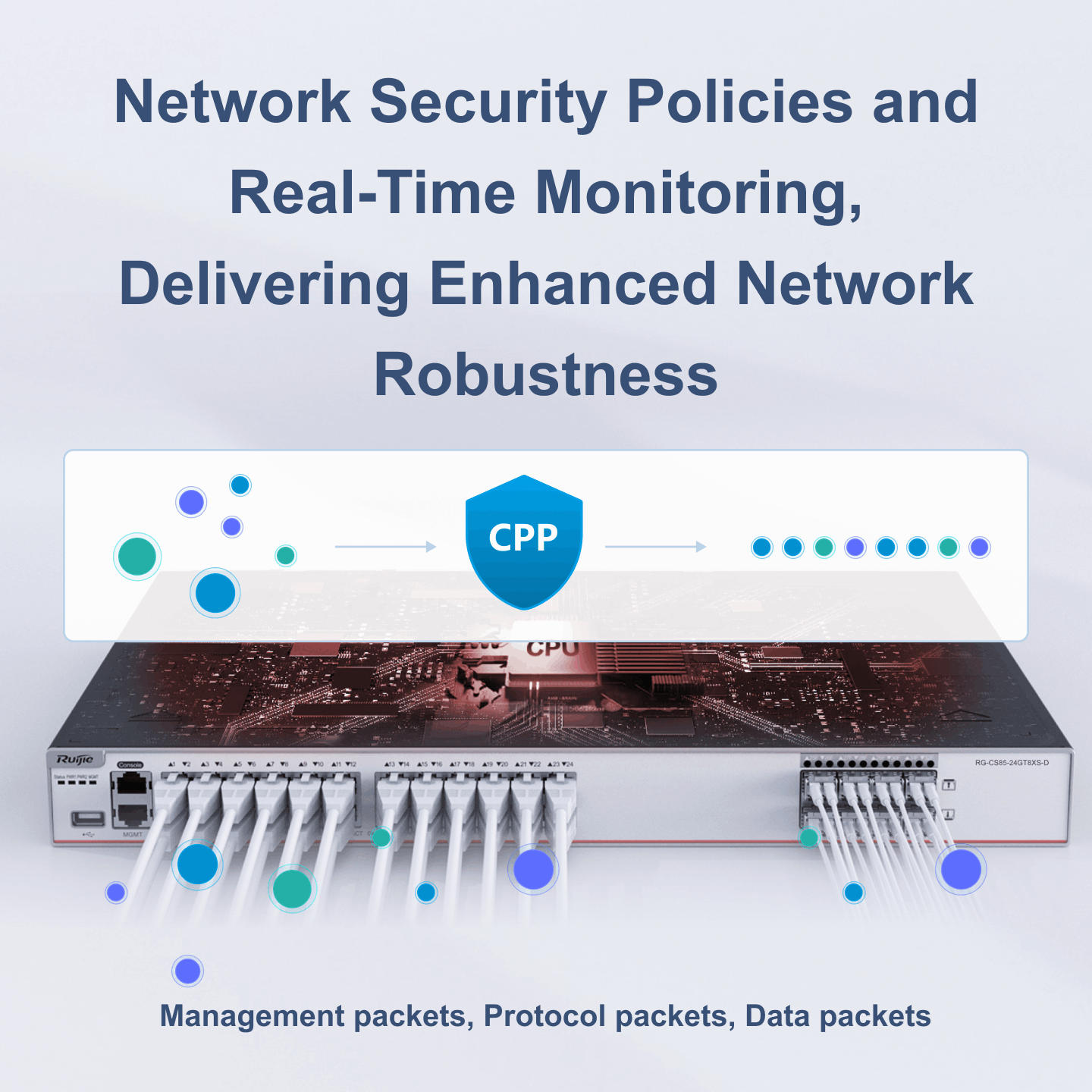

- Network security policies, real-time monitoring, CPP and NFPP, delivering enhanced network robustness
- SNMP, RMON, Syslog, USB log backup features, CLI, Eweb, telnet and other management modes, easy network maintenance
Key Specification
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Service ports | 24 x 10/100/1000 Mbps electrical ports, 8 x 1GE/10GE SFP+ ports |
| Switching Capacity | 880 Gbps |
| Forwarding Rate | 426 Mpps/600 Mpps |
| Operating Temperature | 0–45°C |
| Power Consumption | < 60 W (without expansion module), or < 85 W (with expansion module) |
| Dimensions | 440 mm x 340 mm x 44 mm |
| Management Ports | 1 x management port, 1 x console port, and 1 x USB 2.0 port |
| Warranty Period | 3 years |
Related products
You recently viewed
Frequently asked questions
How much does the RUIJIE RG-CS85-24GT8XS-D 24-Port GE Electrical Layer 3 Enterprise-Class Core or Aggregation Switch,8 × 10G Uplink Ports cost?
The reference price is MYR 26,397.00. Contact us for a formal quotation — project pricing depends on quantity and installation scope.
Is this product available in Malaysia?
Yes — available to order. Supplied and installed nationwide by RYZEN ESOLUTIONS (M) SDN. BHD..
Who manufactures the RUIJIE RG-CS85-24GT8XS-D 24-Port GE Electrical Layer 3 Enterprise-Class Core or Aggregation Switch,8 × 10G Uplink Ports?
It is manufactured by Ruijie. We supply genuine units with manufacturer warranty.
Do you provide installation and support?
Yes — we design, install, configure and support this product as part of a complete solution. Ask us about maintenance packages.
