Ruijie · Switches

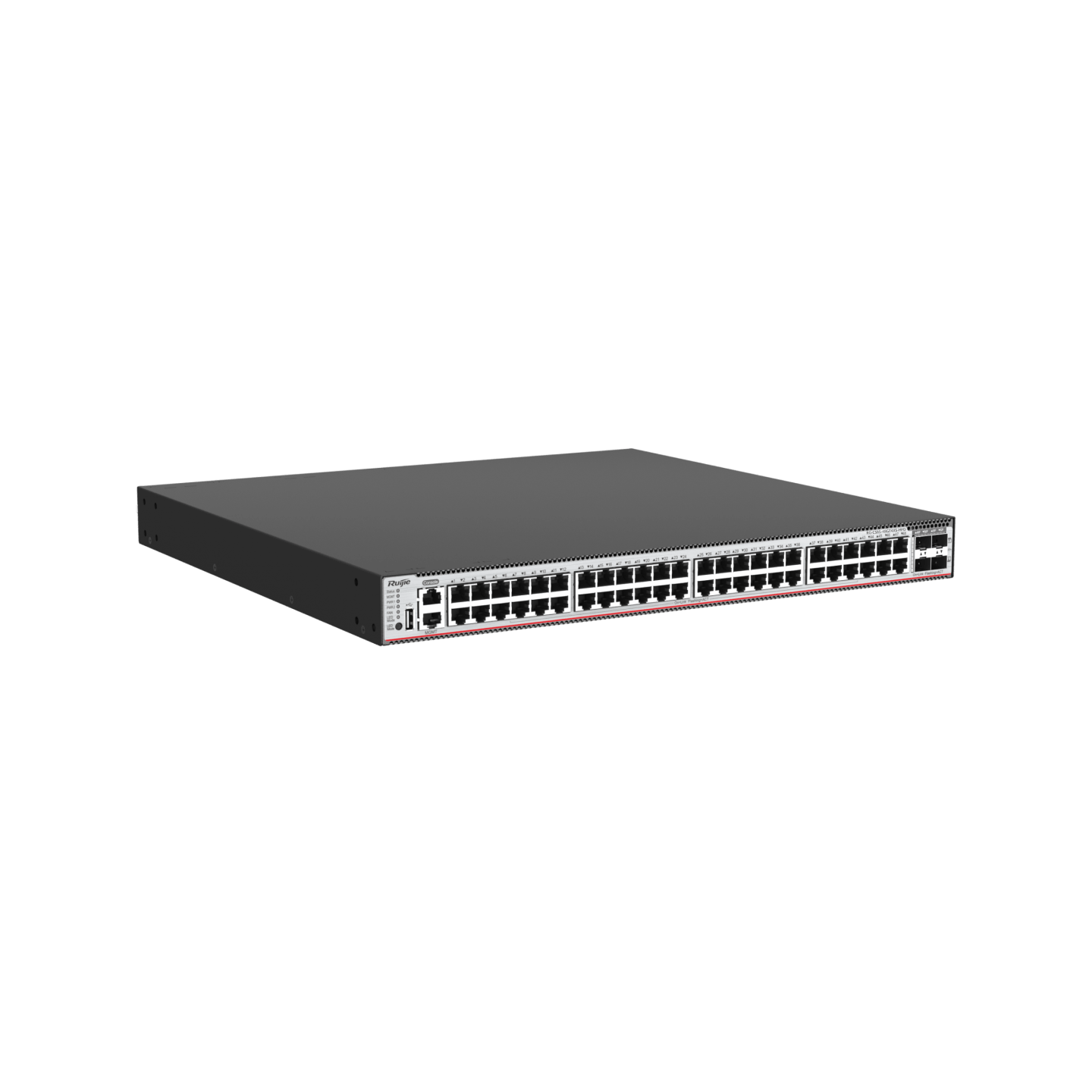

RUIJIE RG-CS85-48GT4XS-HPD 48-Port GE Electrical Layer 3 Enterprise-Class PoE Core or Aggregation Switch, 4 × 10G Uplink Ports
RUIJIE RG-CS85-48GT4XS-HPD 48-Port GE Electrical Layer 3 Enterprise-Class PoE Core or Aggregation Switch, 4 × 10G Uplink Ports - Highlight FeaturesRich port typ...
MYR 37,902.00
— buy online, or request a project quotation
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Service ports | 48 x 10/100/1000 Mbps electrical ports with PoE/PoE+ support, 4 × 1G/10G SFP+ ports |
| Switching Capacity | 176Gbps/656Gbps (including expansion module) |
| Forwarding Rate | 131Mpps/488Mpps (including expansion module) |
| Operating Temperature | 0 - 45°C |
| Power Consumption | < 120 W (without expansion module), or < 1600 W (fully loaded) |
Product details
- Rich port types, 48 x 1000 Mbps Ethernet ports, PoE/PoE+ supported, and 4 × 10G optical ports for uplink
- Hardware redundancy, guaranteed service continuity and network connectivity
- VSU virtualization, flexible networking and high reliability.

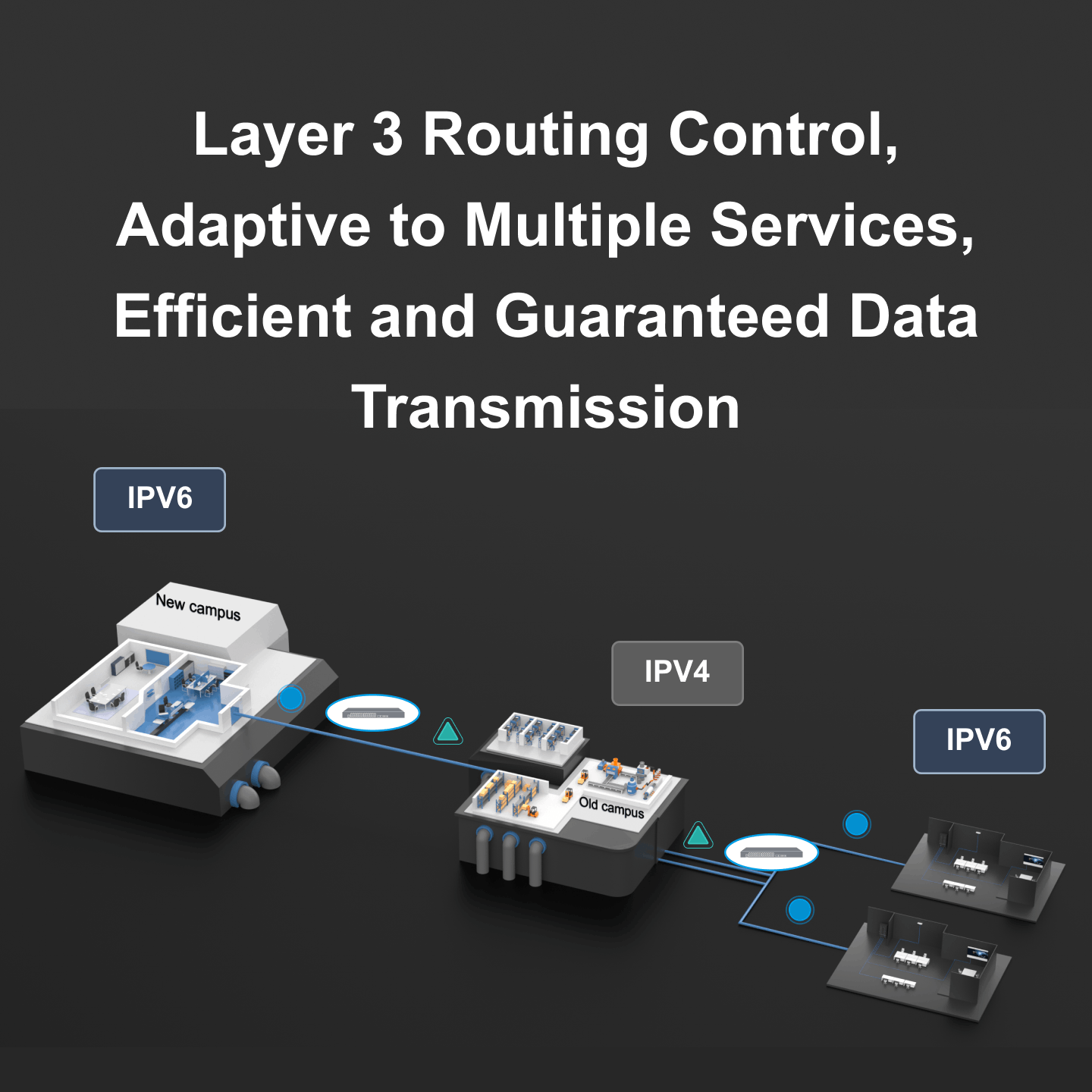

- Layer 3 routing control, adaptive to multiple services, efficient and guaranteed data transmission
- Network security policies, real-time monitoring, CPP and NFPP, delivering enhanced network robustness

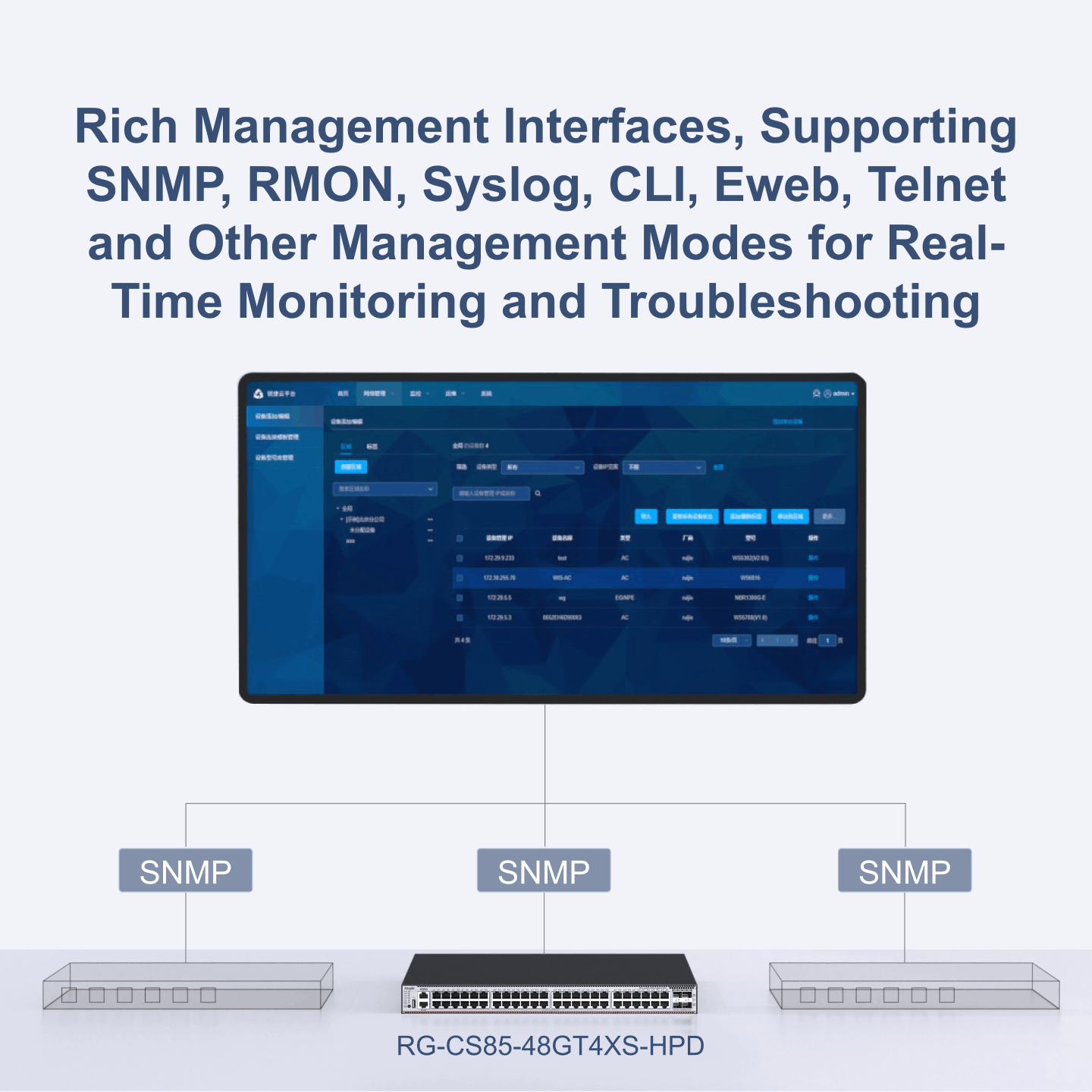

- SNMP, RMON, Syslog, USB log backup features, CLI, Eweb, telnet and other management modes, simplified and easy network maintenance
Key Specification
Service port
48 x 10/100/1000 Mbps electrical ports with auto-negotiation,4 × 1G/10G SFP+ ports, and two modular power slots, PoE/PoE+ supported
Switching Capacity
176Gbps/656Gbps(including expansion module)
Cooling mode
Fan cooling
DC
240 VDC
Link Aggregation
Supported
Operating Temperature
0 - 45°C
PoE
Supported
Management port
1 x management port, 1 x console port, and 1 x USB 2.0 port
Forwarding rate
131Mpps/488Mpps(including expansion module)
AC
100 - 240 VAC,50/60 Hz
Power Consumption
< 120 W (without expansion module), or < 1600 W (fully loaded)
Dimensions (W x D x H)
440 mm x 340 mm x 43.6 mm
Warranty period
3 years
Supplied & supported by PrinterBullet
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Need help choosing?
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Service ports | 48 x 10/100/1000 Mbps electrical ports with PoE/PoE+ support, 4 × 1G/10G SFP+ ports |
| Switching Capacity | 176Gbps/656Gbps (including expansion module) |
| Forwarding Rate | 131Mpps/488Mpps (including expansion module) |
| Operating Temperature | 0 - 45°C |
| Power Consumption | < 120 W (without expansion module), or < 1600 W (fully loaded) |
| Dimensions | 440 mm x 340 mm x 43.6 mm |
| Management Ports | 1 x management port, 1 x console port, 1 x USB 2.0 port |
| Warranty | 3 years |
Compare similar
Related products
Your research
You recently viewed
Frequently asked questions
How much does the RUIJIE RG-CS85-48GT4XS-HPD 48-Port GE Electrical Layer 3 Enterprise-Class PoE Core or Aggregation Switch, 4 × 10G Uplink Ports cost?
The reference price is MYR 37,902.00. Contact us for a formal quotation — project pricing depends on quantity and installation scope.
Is this product available in Malaysia?
Yes — available to order. Supplied and installed nationwide by RYZEN ESOLUTIONS (M) SDN. BHD..
Who manufactures the RUIJIE RG-CS85-48GT4XS-HPD 48-Port GE Electrical Layer 3 Enterprise-Class PoE Core or Aggregation Switch, 4 × 10G Uplink Ports?
It is manufactured by Ruijie. We supply genuine units with manufacturer warranty.
Do you provide installation and support?
Yes — we design, install, configure and support this product as part of a complete solution. Ask us about maintenance packages.
