Ruijie · Switches

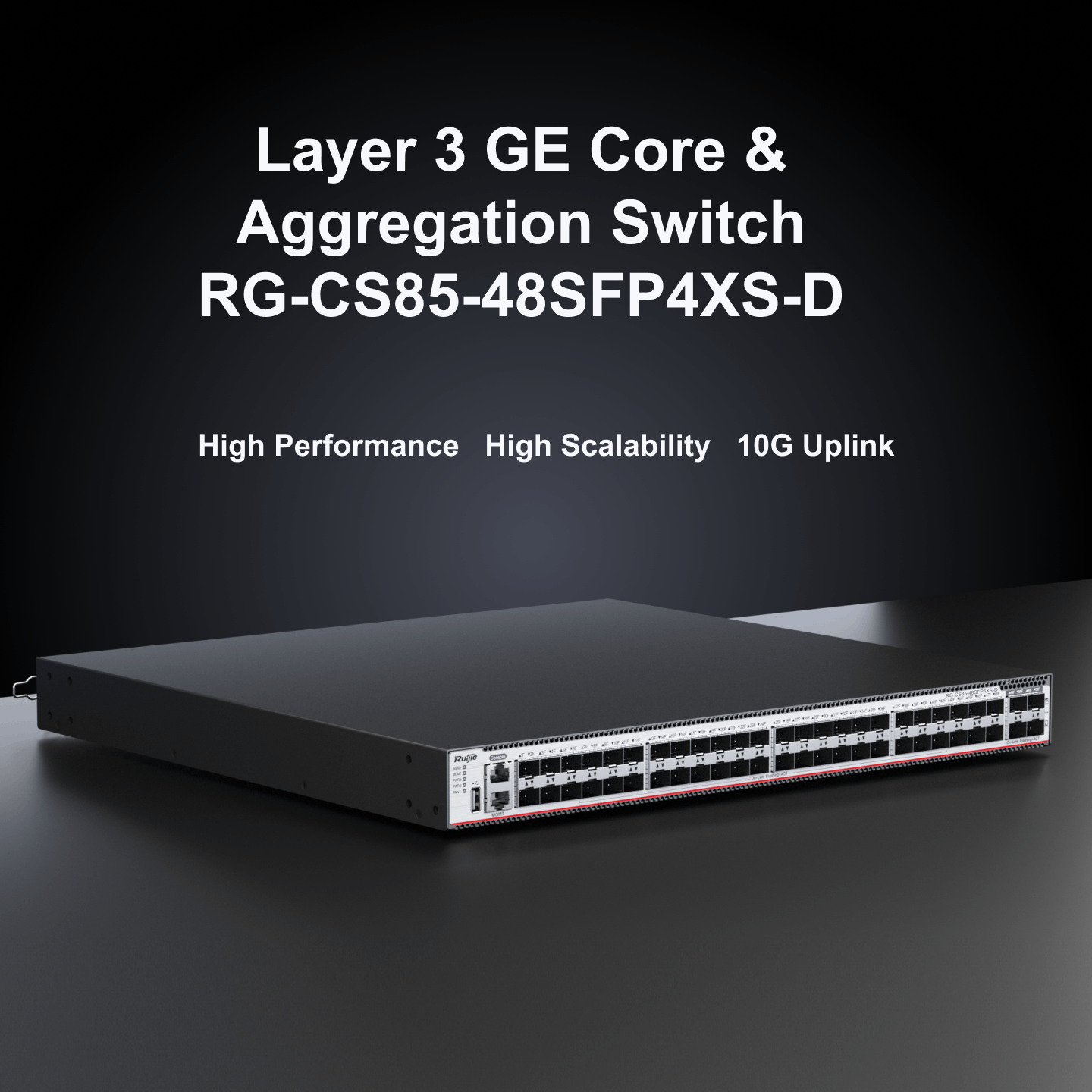

RUIJIE RG-CS85-48SFP4XS-D 48-Port GE All-Optical Layer 3 Enterprise-Class Core or Aggregation Switch, 4 × 10G Uplink Ports
Buy RUIJIE RG-CS85-48SFP4XS-D 48-Port GE All-Optical Layer 3 Enterprise-Class Core or Aggregation Switch, 4 × 10G Uplink Ports, Ruijie from Printer Bullet - Eve...
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Service ports | 48 × 1000 Mbps SFP ports, 4 × 1G/10G SFP+ ports |
| Switching Capacity | 176 Gbps / 656 Gbps (including expansion module) |
| Forwarding Rate | 131 Mpps / 488 Mpps (including expansion module) |
| Operating Temperature | 0 - 45°C |
| Power Consumption | < 105 W (without expansion module), < 125 W (with expansion module) |
Product details

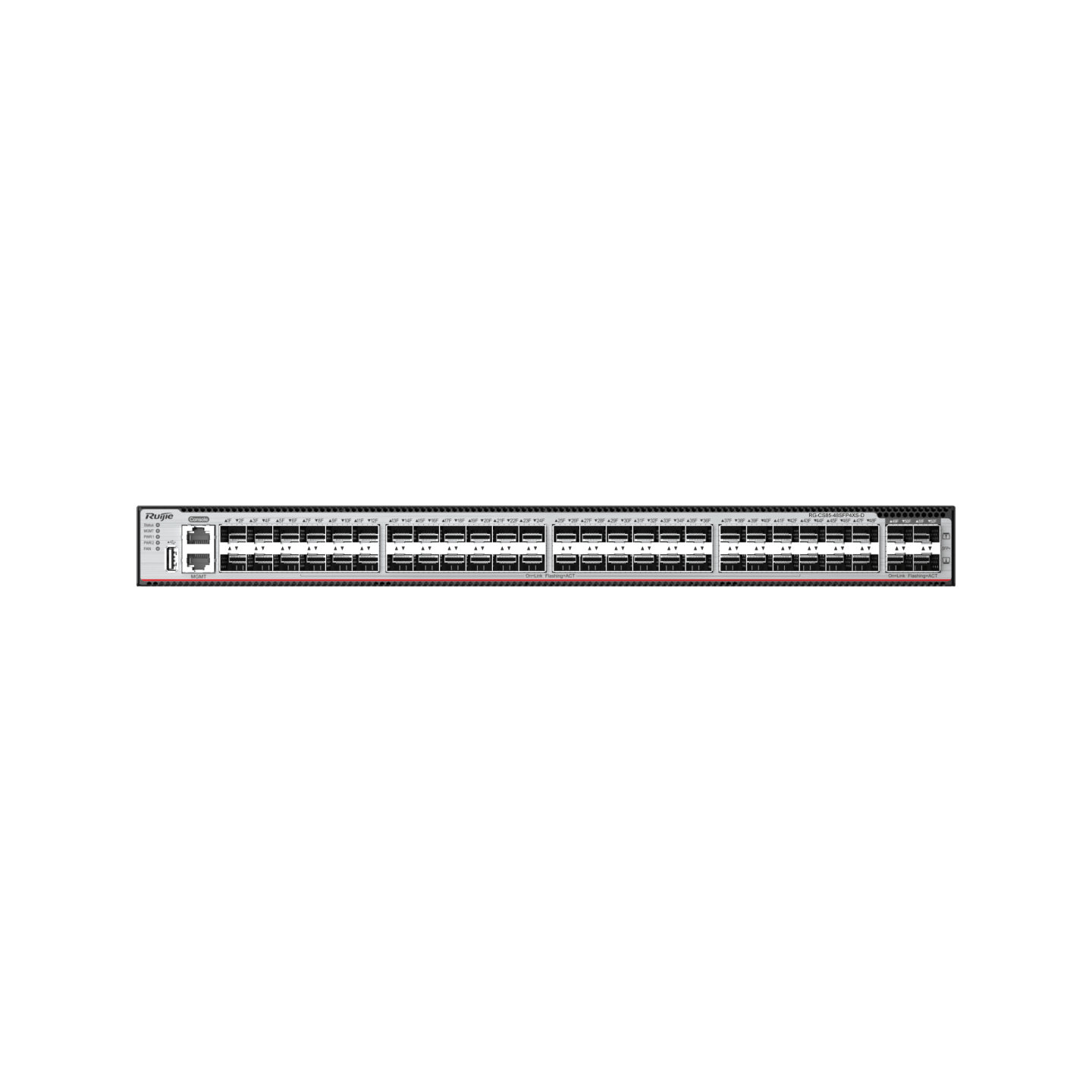

- Rich port types, 48 x SFP ports, and 4 × 10G optical ports for uplink
- Hardware redundancy, guaranteed service continuity and network connectivity
- VSU virtualization, flexible networking and high reliability
- Layer 3 routing control, adaptive to multiple services, efficient and guaranteed data transmission
- Network security policies, real-time monitoring, CPP and NFPP, delivering enhanced network robustness

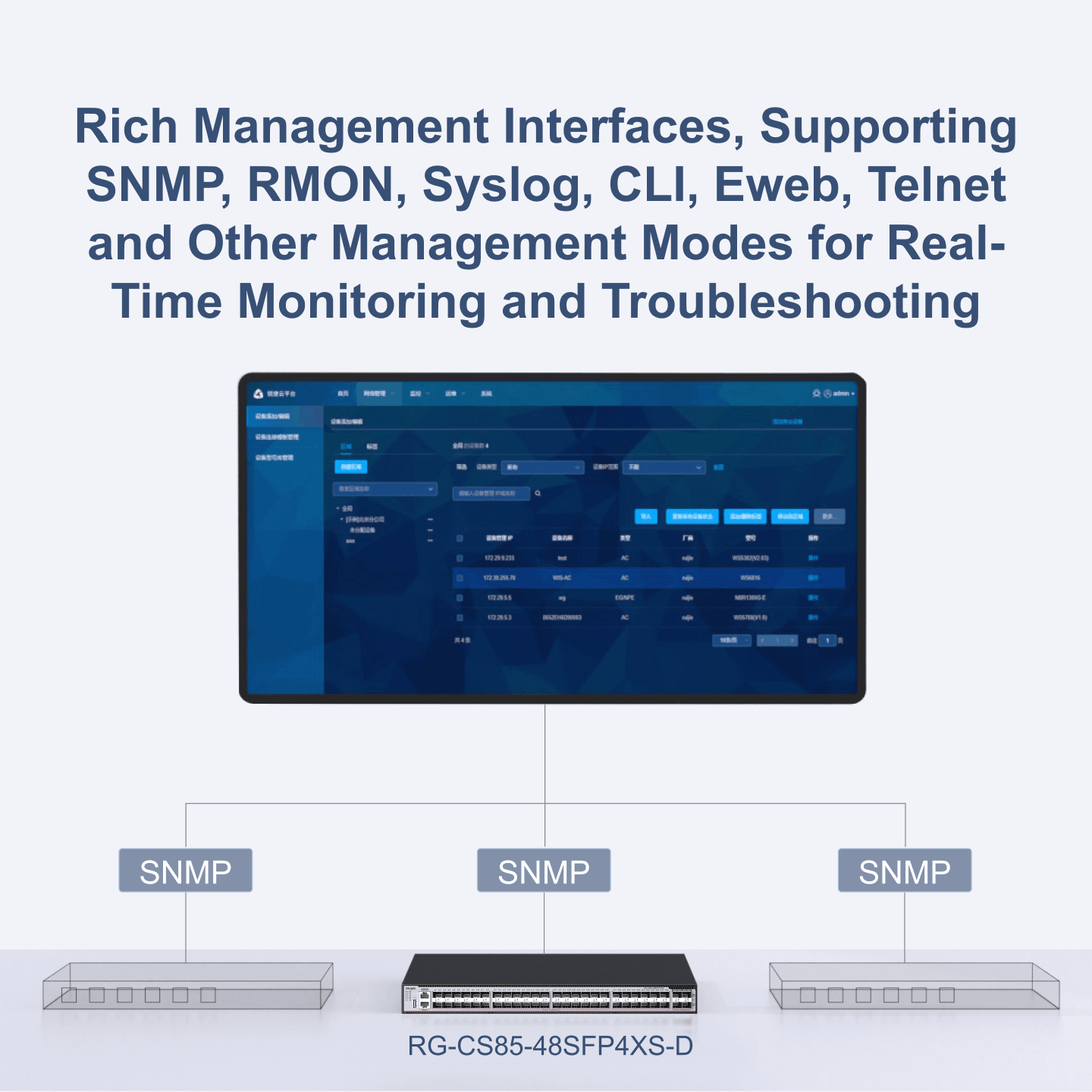

- SNMP, RMON, Syslog, USB log backup features, CLI, Eweb, telnet and other management modes, simplified and easy network maintenance
Key Specification
Service port
48 x 1000 Mbps SFP ports, 4 × 1G/10G SFP+ ports, three modular fan slots, and two modular power slots
Switching Capacity
176Gbps/656Gbps(including expansion module)
Cooling mode
Fan cooling
DC
240 VDC
Link Aggregation
Supported
Operating Temperature
0 - 45°C
Management port
1 x management port, 1 x console port, and 1 x USB 2.0 port
Forwarding rate
131Mpps/488Mpps(including expansion module)
AC
100 - 240 VAC,50/60 Hz
Power Consumption
< 105 W (without expansion module), or < 125 W (with expansion module)
Dimensions (W x D x H)
440 mm x 340 mm x 43.6 mm
Warranty period
3 years
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Need help choosing?
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Service ports | 48 × 1000 Mbps SFP ports, 4 × 1G/10G SFP+ ports |
| Switching Capacity | 176 Gbps / 656 Gbps (including expansion module) |
| Forwarding Rate | 131 Mpps / 488 Mpps (including expansion module) |
| Operating Temperature | 0 - 45°C |
| Power Consumption | < 105 W (without expansion module), < 125 W (with expansion module) |
| Dimensions | 440 mm × 340 mm × 43.6 mm |
| Management Ports | 1 × management port, 1 × console port, 1 × USB 2.0 port |
| Warranty Period | 3 years |
