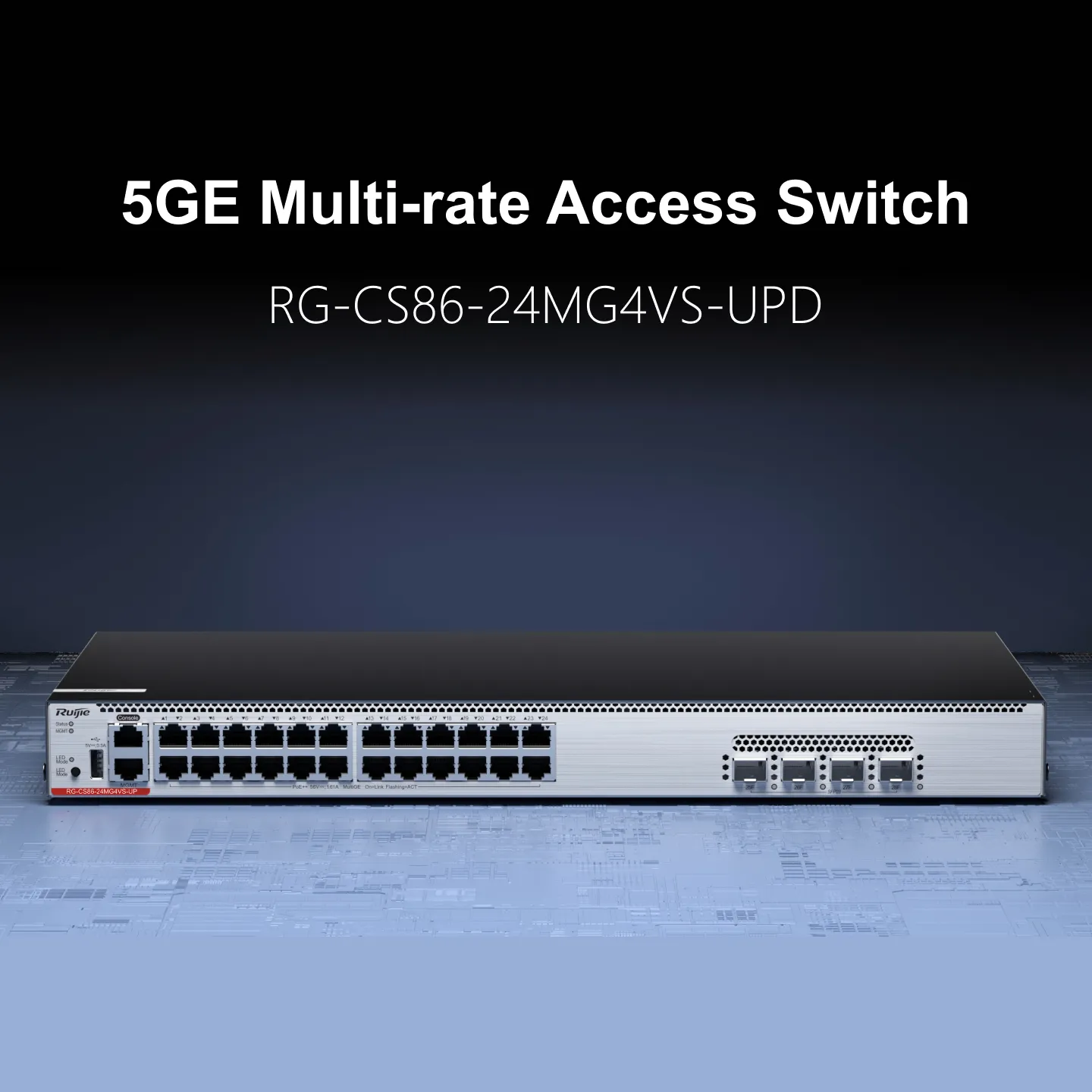

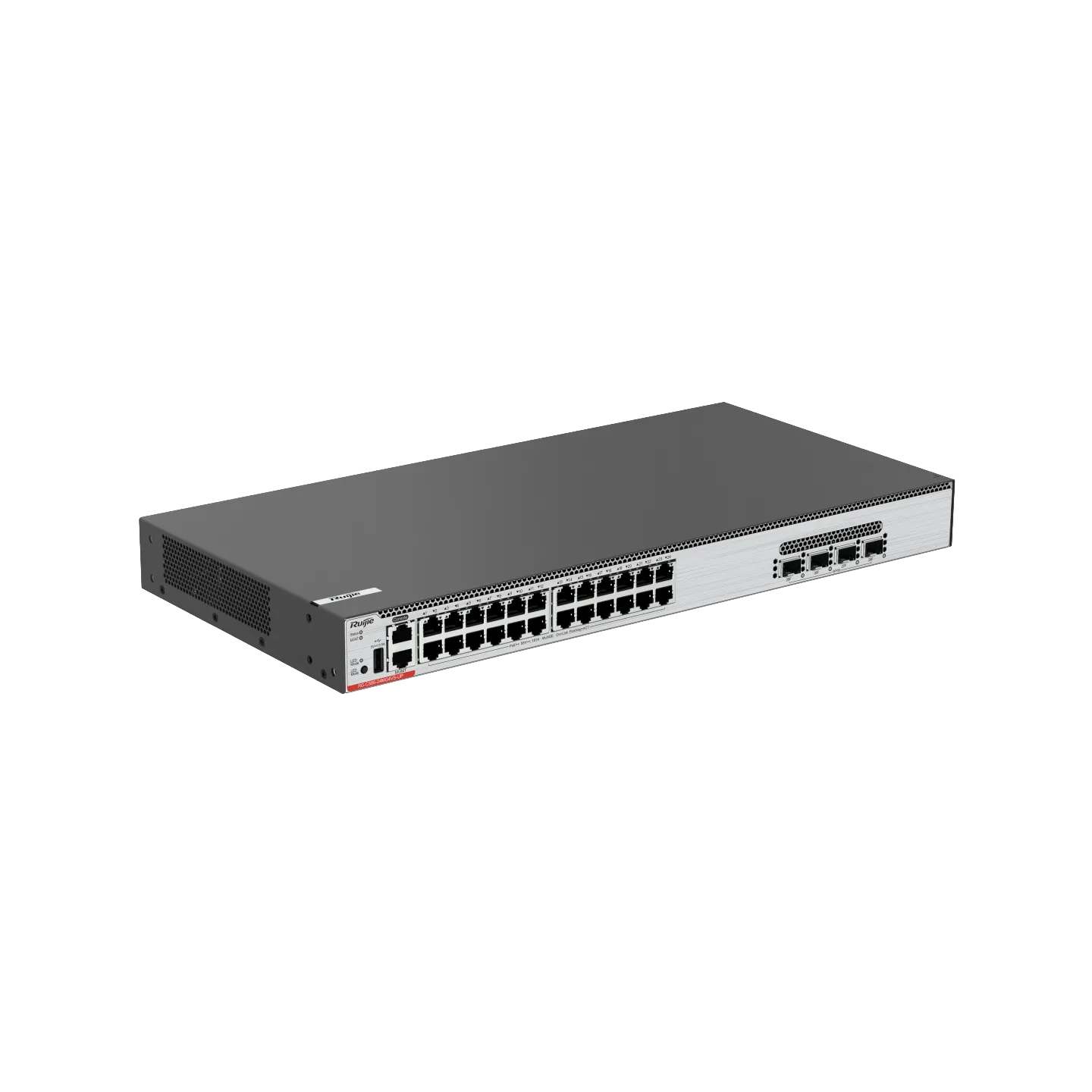

RUIJIE RG-CS86-24MG4VS-UP: 24-Port Ruijie Cloud-Managed Multi-GE Switch, Full 1/2.5/5GE Access with PoE++

Hardware Specifications

RG-CS86-24MG4VS-UP

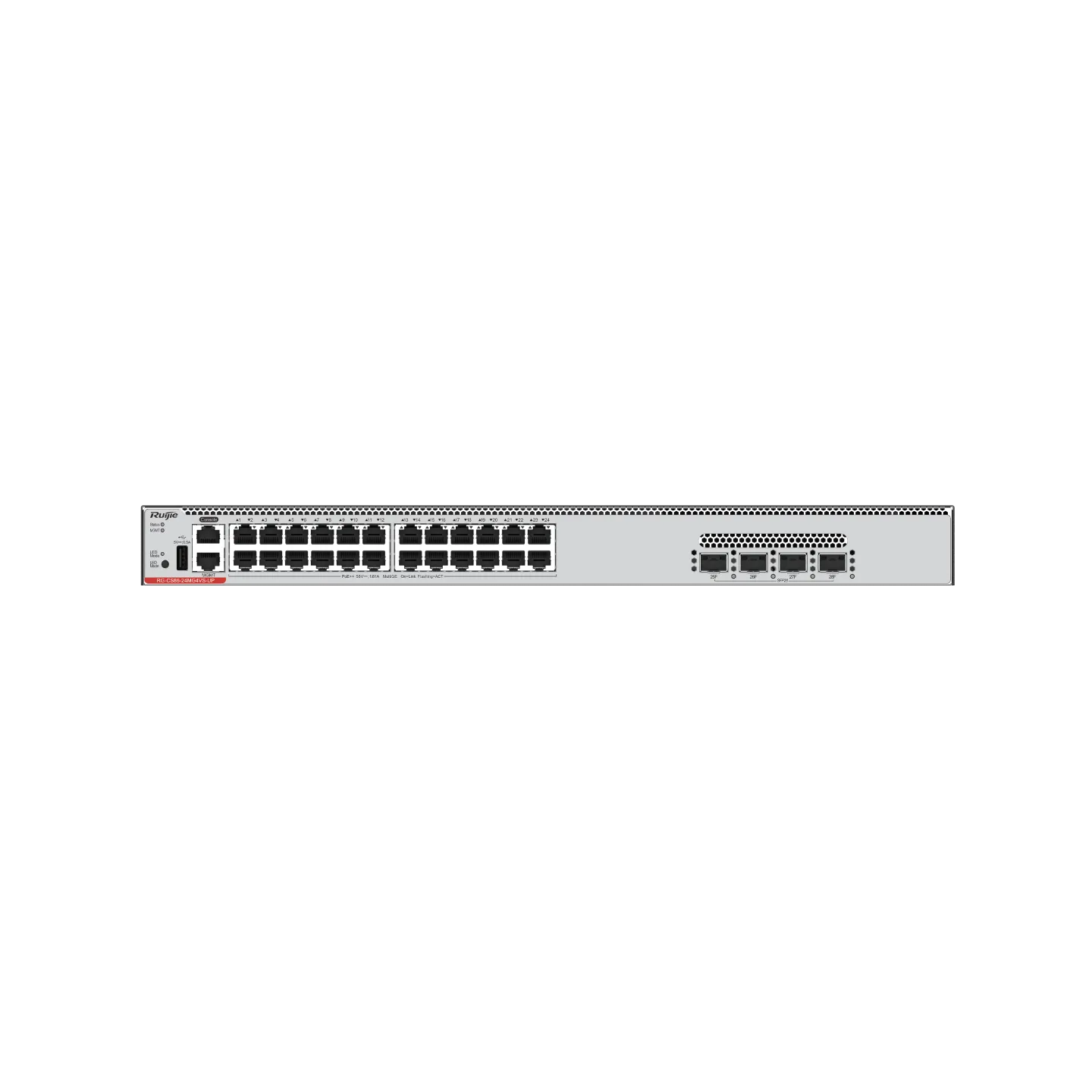

Interface Specifications

Fixed Service Port

24 x 100M/1000M/2.5GE/5GE electrical ports with auto-negotiation
4 x 10GE/25GE SFP28 ports

Fan modules

2 fixed fans

Power modules

1 Built-in power module

Fixed Management Port

1 x MGMT port

1 x console port

1 x USB port

System Specifications

Switching Capacity

440 Gbps/2.56Tbps

Packet Forwarding Rate

(Actual)

327 Mpps

MAC Table Capacity

32,768

ARP table

16,000

IPv4 Unicast Routes

16,000

IPv4 Multicast Routes

4,000

IPv6 Unicast Routes

16,000

IPv6 Multicast Routes

2,000

ACL entries

In: 2,500

Out:1,000

Dimensions and Weight

Dimensions (W x D x H)

442 × 220 × 43.6 mm (17.40 × 29.92 × 6.89 in.) , 1 RU

Weight

3.65 kg (8.82 lbs)

Power Supply and Consumption

Typical Power Consumption

Without PoE: < 110 W (Total power consumption of all modules)

Full PoE load: < 370 W (Total power consumption of all modules)

Power Module Model

Built-in power module

Rated Input Voltage

Built-in power module

AC input

Rated voltage range: 100 V AC to 240 V AC

Maximum voltage range: 90 V AC to 264 V AC

Frequency: 50/60 Hz

Rated current per circuit: 6 A

PoE-capable Port

Ports 1 to 24 support PoE/PoE+ and HPoE power supply
Maximum output power of a HPoE-capable port: 90 W

Environment and Reliability

Surge Protection

6 kV

Temperature Monitoring

Temperature alarm

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

–40°C to +70°C (–40°F to +158°F)

Operating Humidity

10% RH to 90% RH (non-condensing)

Storage Humidity

5% RH to 95% RH (non-condensing)

Software Specifications

RG-CS86-24MG4VS-UP

RG-CS86-48MG4VS2QXS-UPD

RG-CS86-24XMG4XS4VS-UPD

Ethernet Switching

Jumbo frame (maximum length: 9216 bytes)

IEEE 802.1Q (supporting 4K VLANs)

Voice VLAN

Super VLAN, Private VLAN

MAC VLAN, Port based VLAN, Protocol based VLAN, IP-Subnet based VLAN

GVRP

Basic QinQ

Flexible QinQ

STP, RSTP, and MSTP

ERPS (G.8032)

LLDP/LLDP-MED

LACP (IEEE 802.3ad)

IP Service

ARP

DHCP client, DHCP relay, and DHCP server

DHCP snooping

DNS

DHCPv6 client and DHCPv6 relay

DHCPv6 snooping

Neighbor Discovery (ND) and ND snooping

IP Routing

Static routing

RIP and RIPng

OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6

BGP4 and BGP4+

IPv4 and IPv6 PBR

ECMP

Multicast

IGMP v1/v2/v3, and IGMP proxy

IGMP v1/v2/v3 snooping

PIM-DM, PIM-SM, and PIM-SSM

MSDP

MLD v1/v2

MLD snooping v1/v2

PIM-SMv6 and PIM-SSM v6

ACL and QoS

Standard IP ACLs

Extended IP ACLs

Extended MAC ACLs

Time-based ACLs

Expert-level ACLs

ACL80

IPv6 ACL

Port traffic rate limiting

Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ

Congestion avoidance: tail drop, RED, and WRED

802.1p/DSCP/ToS traffic classification

Eight priority queues per port

Security

Multiple AAA modes

RADIUS and TACAS+

Port-based and MAC-based 802.1x authentication

Web authentication

HTTPS

SSHv1, SSHv2

Global IP-MAC binding

IP source guard

SAVI

CPP and NFPP

Strict and loose RPF

uRPF ignoring default routes

Reliability

REUP, RLDP, DLDP
