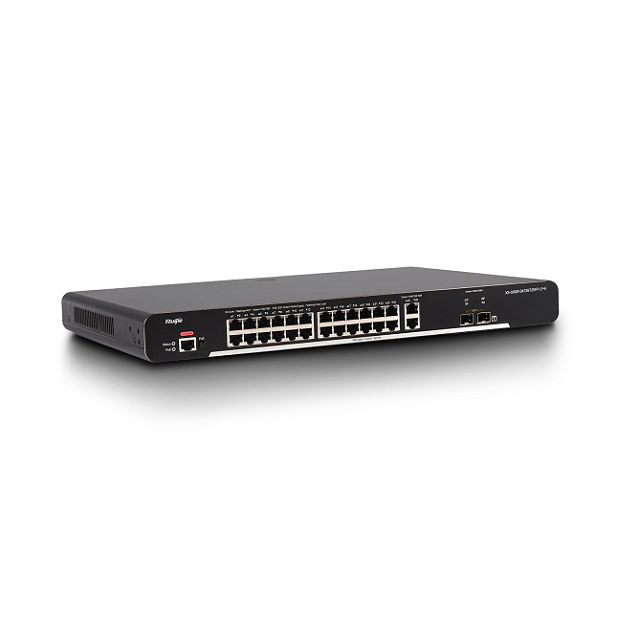

RUIJIE XS-S1920-24T2SFP-LP-E CLOUD MANAGED SWITCH, 24 FE PORT, 2 GE SFP (NON COMBO) , 24 POE PORT

Product details

XS-S1920 Switch Series

Ruijie XS-S1920-E Series Switches are the next-generation cost-effective smart managed Layer 2 switches for commercial real estate, hotels and CCTV. The series is designed for small and medium-sized businesses looking for easy-to-deploy solution.Ruijie XS-S1920-E Series is part of the Ruijie SME networking products. The series consists of 5 switches including one 8-port Gigabit PoE+ models, two 24-port Fast Ethernet PoE+ models, and two 24-port Gigabit PoE+ switch models.

These switches can be deployed with plug-and-play out the box. Also they can be fine-tuned with features available from built-in Web-UI as well as command lines(CLI). Features including VLAN, Spanning Tree, IGMP Snooping can be configured.

With Ruijie Cloud, fast deployment, centralized monitoring and remote maintenance can be done in much efficient ways.

Key Features

● Easy management using Ruijie Cloud, Web-UI and command lines

● 24-port 10/100, 8- and 24-port Gigabit models with GT and SFP ports for uplink

● All 8/24 ports are PoE/PoE+ capable

● Multiple PoE power budget choice between 185W and 370W on 24-port models

● 3-Year Warranty Free of Charge

Features

Easy Management

●Ruijie Cloud

The XS-S1920-E Series fully supports Ruijie Cloud, which is a cloud-based service that helps user deploy and manage devices and networks.

●Built-in Web management

Even non-technical users can do easy management for the network through a Web browser and XS-S1920-E’s Web-UI.

●Command Line Interface

With RGOS’s full command line support, complex configuration and troubleshooting can be done as well.

●SNMP v1/v2c/v3

Switches can be discovered and monitored from NMS system or other SNMP-based network tools.

●Network Time Protocol

Enables synchronization of time among time servers and clients, fulfill the need for clock-dependent devices in the network.

High Performance

●IGMP Snooping v1/v2/v3

Instead of flooding traffic to all ports, the switch filters multicast traffic to improve network performance, especially useful for IPTV and CCTV deployment.

●VLAN support and tagging

Supports IEEE802.1Q VLAN, providing security between device groups.

●Jumbo Frame support

Improves the performance of large data packet transfers, supports frame size up to 9216 Bytes.

Connectivity and Resiliency

●SFP ports for fiber connectivity

Provides fiber uplinks on all models. SFP ports are in addition to RJ45 Ethernet ports, providing higher total number of available ports.

●Power over Ethernet(PoE/PoE+)

Provides up to 30Watt per port, which allows support of latest PoE+ capable devices such like high-performance access points and IP cameras, as well as any IEEE802.3af(PoE)-compliant powered devices.

For XS-S1920-9GT1SFP-P-E, Ports 1-8 provide PoE/PoE+. For other four 24-port models, Ports 1-24 provide PoE/PoE+.

●STP, RSTP and MSTP

Supports IEEE802.1D(STP), IEEE802.1w(RSTP) and IEEE802.1s(MSTP) standards, provides redundant links while preventing network loops.

● Rapid Link Detection Protocol(RLDP)

   Detect the connectivity of links, and supports the enhanced loop detection function to       prevent network faults caused by devices such as Hubs.

● Energy Efficient Ethernet(EEE)

   Compliant with IEEE802.3az standard requirements in order to save energy.

● 3-Year Warranty Free of Charge

Specifications
