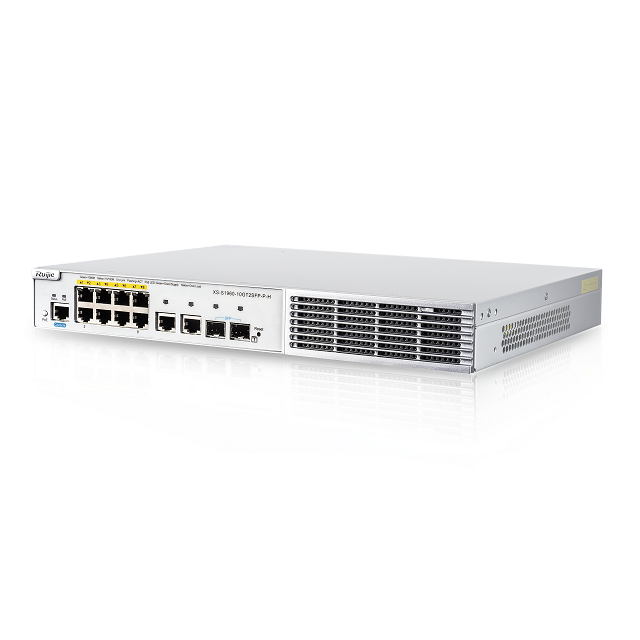

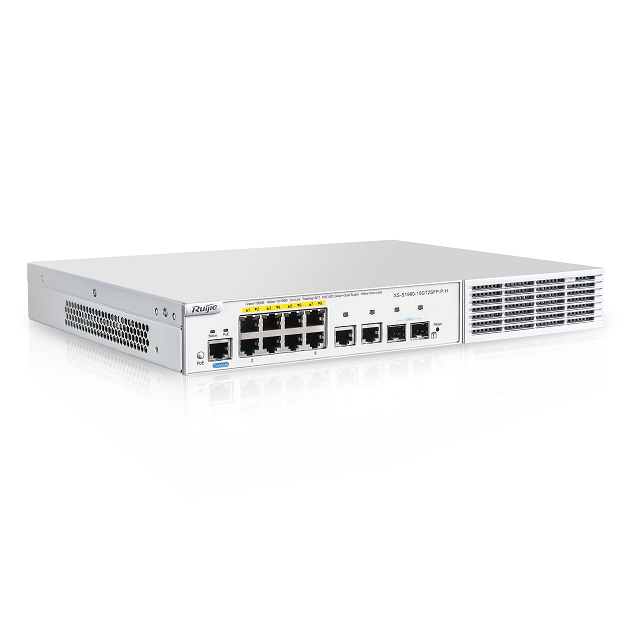

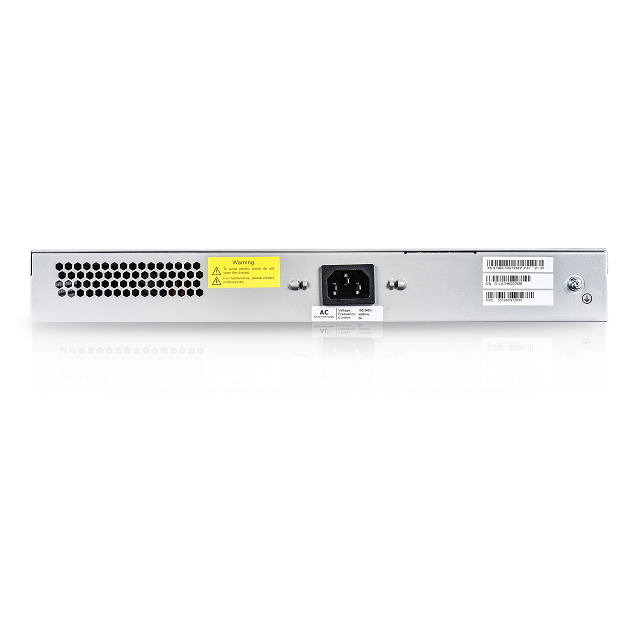

RUIJIE XS-S1960-10GT2SFP-P-H CLOUD MANAGED SWITCH, 10 GE PORT, 2 GE SFP (NON COMBO), 8 POE PORT
RUIJIE XS-S1960-10GT2SFP-P-H CLOUD MANAGED SWITCH, 10 GE PORT, 2 GE SFP (NON COMBO), 8 POE PORT -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Ports | 10 10/100/1000BASE-T ports, 2 100/1000BASE-X SFP ports (non-combo) |
| PoE Support | PoE/PoE+ with up to 370W power budget and up to 60W H-PoE per port |
| PoE Ports | Port 1-8 |
| Switching Capacity | 24Gbps |
| Packet Forwarding Rate | 18Mpps |
Product details
XS-S1960 Switch Series
XS-S1960 Switch Series is the newest access switch series for SMB market. XS-S1960-H Series Switches are fixed-configuration, Gigabit Ethernet switches that provide enterprise-class access switching for branch offices, the switches are managed switches offer advanced Layer 2 and basic Layer 3 features as well as High-power PoE Technology (IEEE 802.3bt). The switches adopt new web interface and can be managed at the Ruijie Cloud platform, provides easy device onboarding, configuration, monitoring, and troubleshooting.
Feature highlights of XS-S1960-H Switch Series:
● Ruijie cloud and web/CLI managed
● PoE+ support with up to 370W power budget and up to 60W H-PoE support by a single port
● Delivers enhanced network security, network reliability
● Design for Durability
Specifications
| Ports | 10 10/100/1000BASE-T |
| ports, 2 100/1000BASE-X | |
| SFP ports (non-combo), | |
| Port 1-8 support PoE/PoE+ | |
| Fan Slots | Fanless |
| Management Ports | 1 console port |
| Switching Capacity | 24Gbps |
| Packet Forwarding Rate | 18Mpps |
| Port Buffer | 1.5MB |
| ARP Table | 500 |
| MAC Address | Up to 16K |
| Routing Entries | 64 |
| IP Host Entries (IPv4/IPv6) | 500 (IPv4/IPv6) |
| ACL Entries | Up to 750 |
| ACL | Standard/Extended/Expert ACL, Extended MAC ACL, ACL 80, IPv6 ACL, ACL logging, ACL counter, ACL remark, Global ACL, ACL redirect |
| QoS | 802.1p/DSCP/TOS traffic classification Multiple queue scheduling mechanisms, such as SP, WRR, DRR,SP+WFQ, SP+WRR, SP+DRR Input port-based speed limit. Port-based traffic recognition Each port supports 8 queue priorities |
| VLAN | 4K 802.1q VLANs, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, QinQ, IP subnet-based VLAN, GVRP |
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Ports | 10 10/100/1000BASE-T ports, 2 100/1000BASE-X SFP ports (non-combo) |
| PoE Support | PoE/PoE+ with up to 370W power budget and up to 60W H-PoE per port |
| PoE Ports | Port 1-8 |
| Switching Capacity | 24Gbps |
| Packet Forwarding Rate | 18Mpps |
| Port Buffer | 1.5MB |
| MAC address | Up to 16K |
| Management | Ruijie cloud and web/CLI managed |
