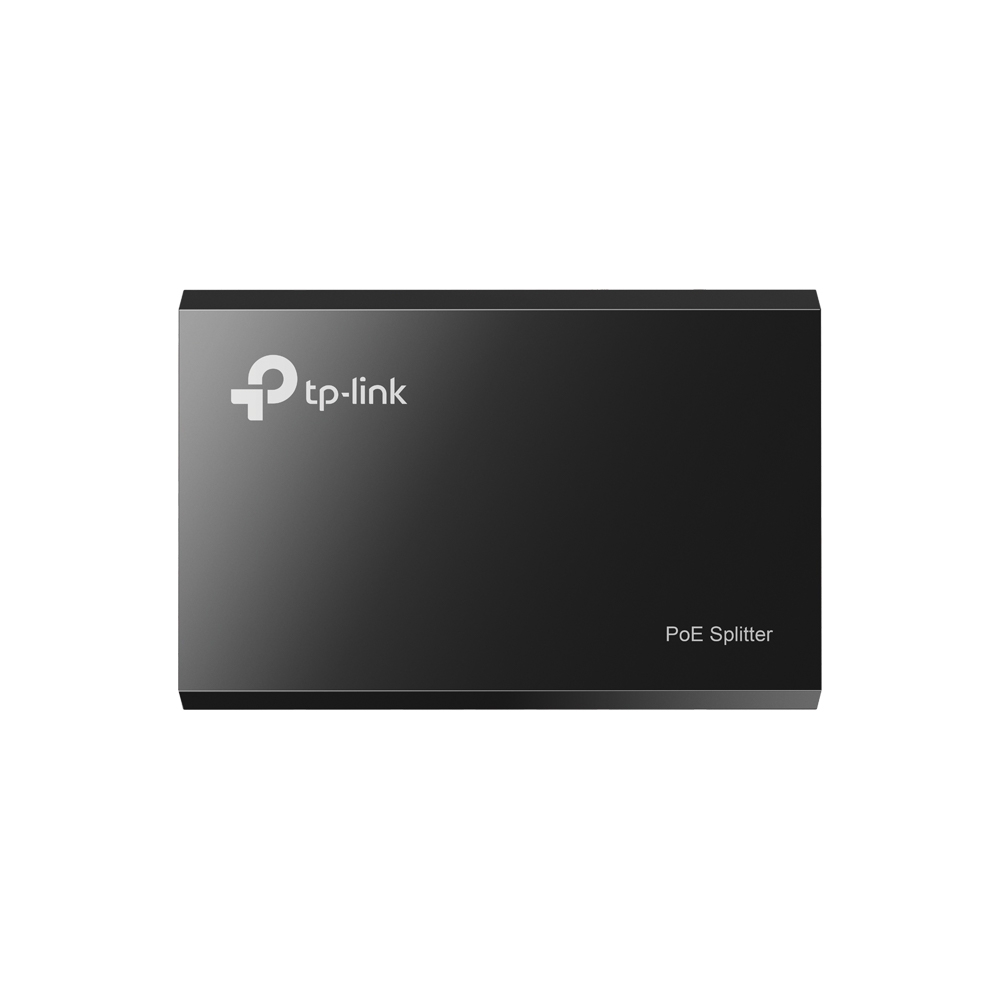

TP-Link TL-POE10R PoE Splitter
TP-Link · Switches

TP-Link TL-POE10R PoE Splitter

Buy TP-Link TL-POE10R PoE Splitter, TP-Link from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quality Service

Quote on request
✓ Available to order · supplied & installed in Malaysia
Request Quotation WhatsApp Ask a question
  • Genuine unit through the authorised channel — manufacturer warranty
  • Itemised quotation within 1 working day, B2B invoicing
  • Delivery nationwide — installation available for enterprise gear
Key specifications
Interface 2 10/100/1000Mbps RJ45 Port
Power Output 12V/9V/5V
Standards Compliant IEEE 802.3af
Maximum Cable Distance 100 Meters
Dimensions 3.2 x 2.1 x 0.9 in (80.8 x 54 x 24 mm)
Full specifications ↓

Product details

PoE Splitter Adapter

PORT: 1× Gigabit PoE Port, 1× Gigabit Non-PoE Port

SPEC: 802.3af Compliant, Data and Power Carried over The Same Cable Up to 100 Meters, 12V/9V/5V Power Output, Plastic Case, Pocket Size


HARDWARE FEATURES

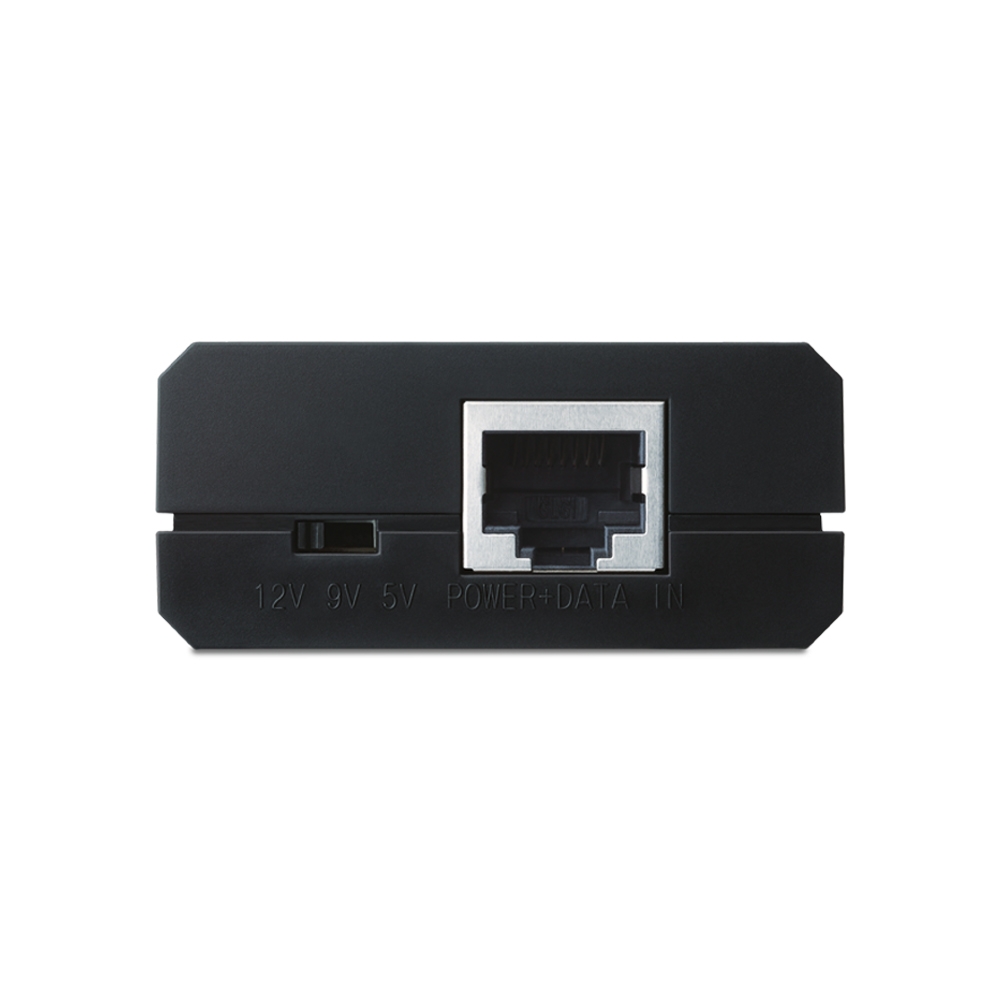

Interface2 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX

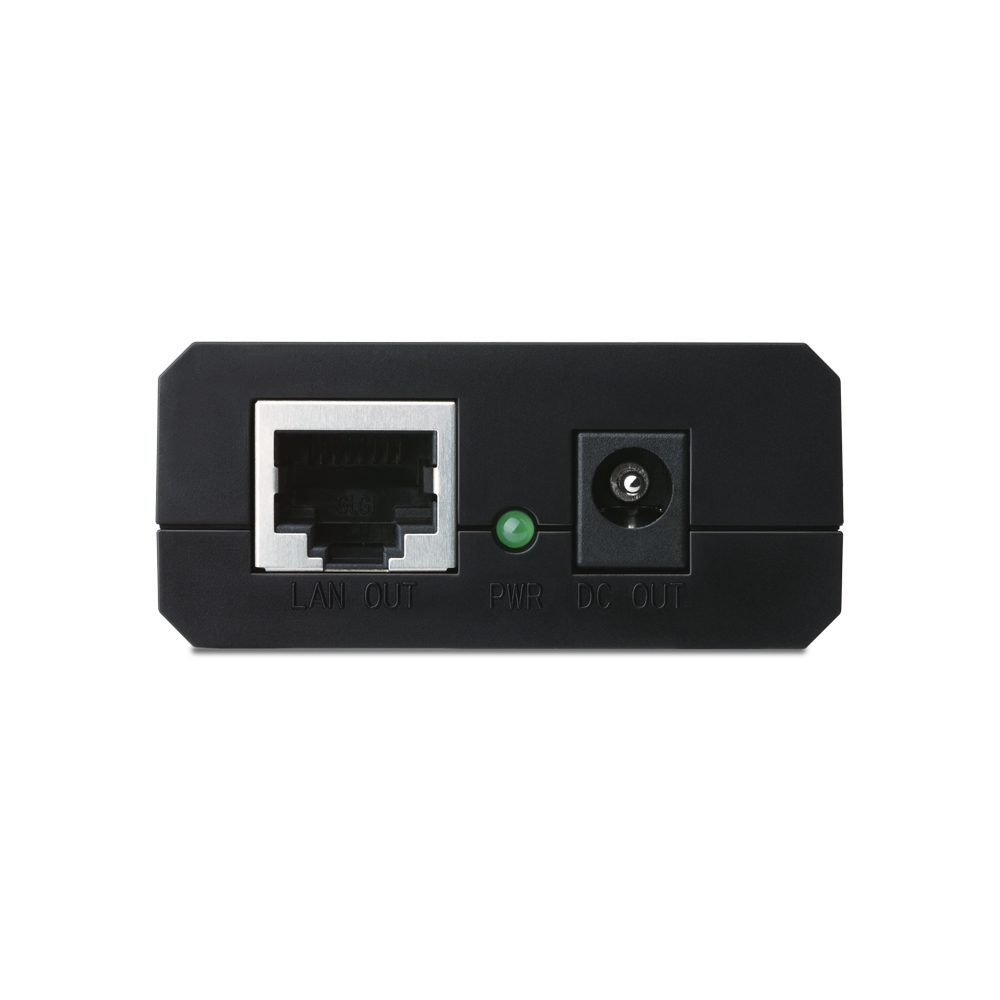

1 POWER OUTPUT PORT
Network Media10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply12VDC 1A, 9VDC 1A, 5VDC 2A
Basic FunctionCompatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Output
LED IndicatorPWR
Dimensions ( W x D x H )3.2*2.1*0.9 in.(80.8*54*24 mm)
SOFTWARE FEATURES
Basic FunctionCompatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Supply
OTHERS
CertificationFCC, CE, RoHS

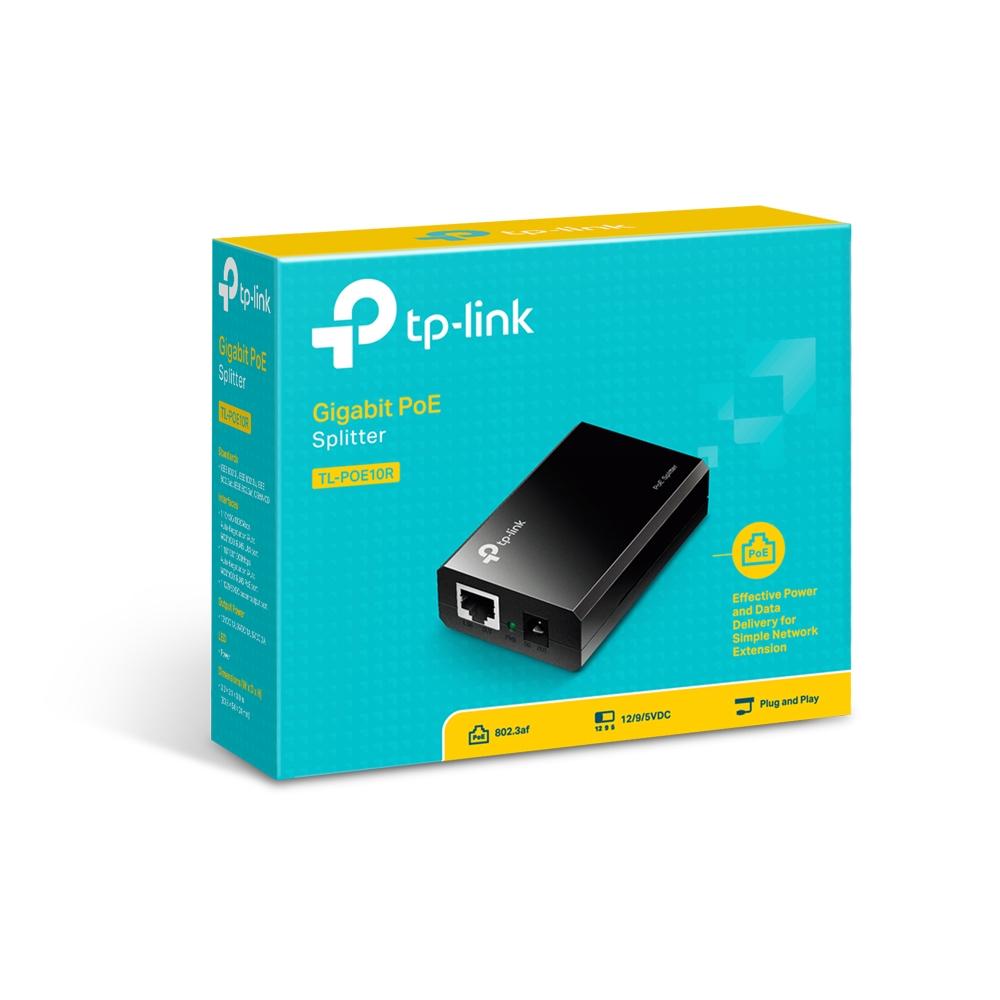

Package ContentsPoE Splitter TL-POE10R
Power Cord
RJ45 Cable
Installation Guide
System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Supplied & supported by PrinterBullet

Engineering by our services division, Ryzen ESolutions — Network design & engineering →

Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

012-282 2340 WhatsApp Request Quotation

Specifications

Printing & Imaging Specs
Interface2 10/100/1000Mbps RJ45 Port
Power Output12V/9V/5V
Standards CompliantIEEE 802.3af
Maximum Cable Distance100 Meters
Dimensions3.2 x 2.1 x 0.9 in (80.8 x 54 x 24 mm)
Operating Temperature0℃~40℃
CertificationsFCC, CE, RoHS
