TP-Link · Switches

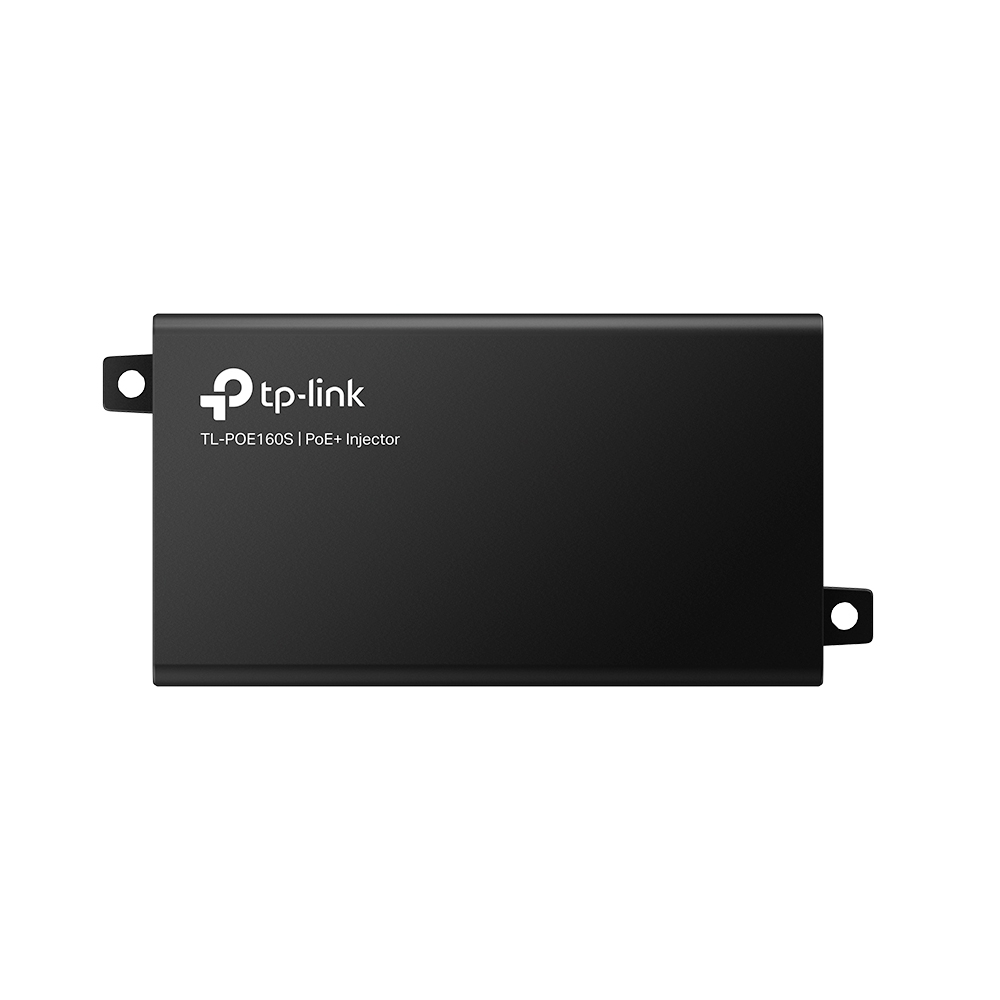

TP-Link TL-POE160S PoE+ Injector

Name: TP-Link TL-POE160S PoE+ Injector
Brand: TP-Link
SKU: PRD-202607-4487

TP-Link TL-POE160S PoE+ Injector - PoE+ Injector AdapterPORT: 1× Gigabit PoE Port, 1× Gigabit Non-PoE PortSPEC: 802.

Quote on request

✓ Available to order · supplied & installed in Malaysia

Key specifications
Ports	1× Gigabit PoE Port, 1× Gigabit Non-PoE Port
Standards	802.3af/at Compliant
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Power Output	Max. 30 W

Product details

PoE+ Injector Adapter

PORT: 1× Gigabit PoE Port, 1× Gigabit Non-PoE Port

SPEC: 802.3at/af Compliant, Data and Power Carried over The Same Cable Up to 100 Meters, Plastic Case, Pocket Size

NETWORK
Standards and Protocols	IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

GENERAL
Certification	FCC, CE, RoHS
Environment	Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing

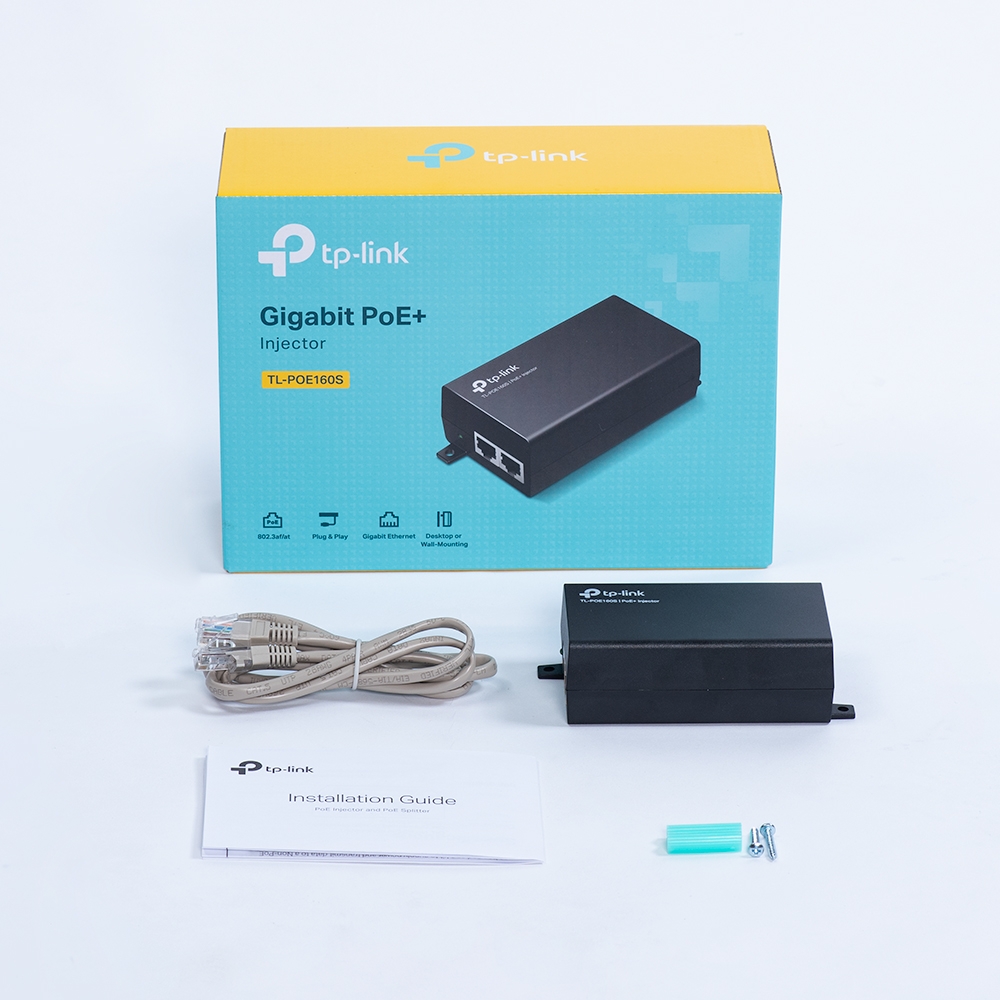

PACKAGE CONTENTS
Package Contents	PoE+ Injector TL-POE160S Installation Guide Power Cord RJ45 Cable Wall Mounting Kits

HARDWARE FEATURES
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

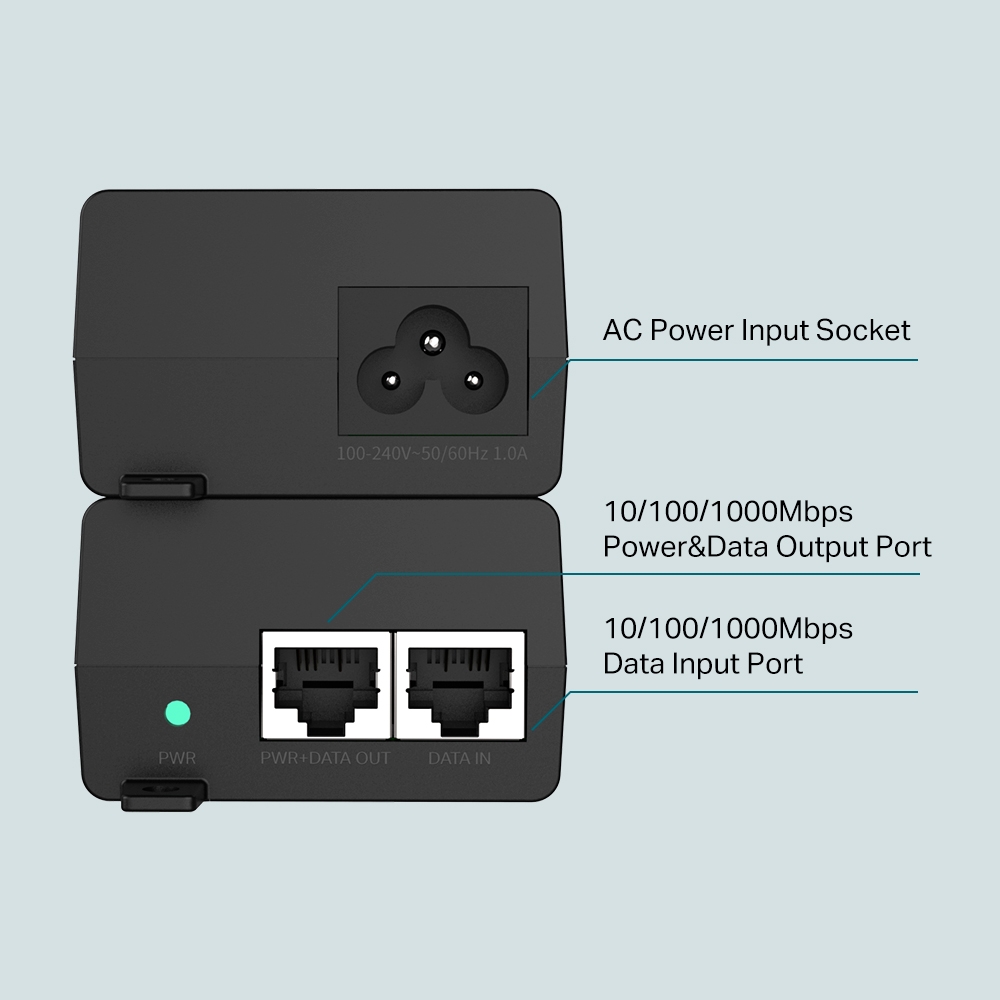

Ports	1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket
Power Consumption	Input: 100-240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W)

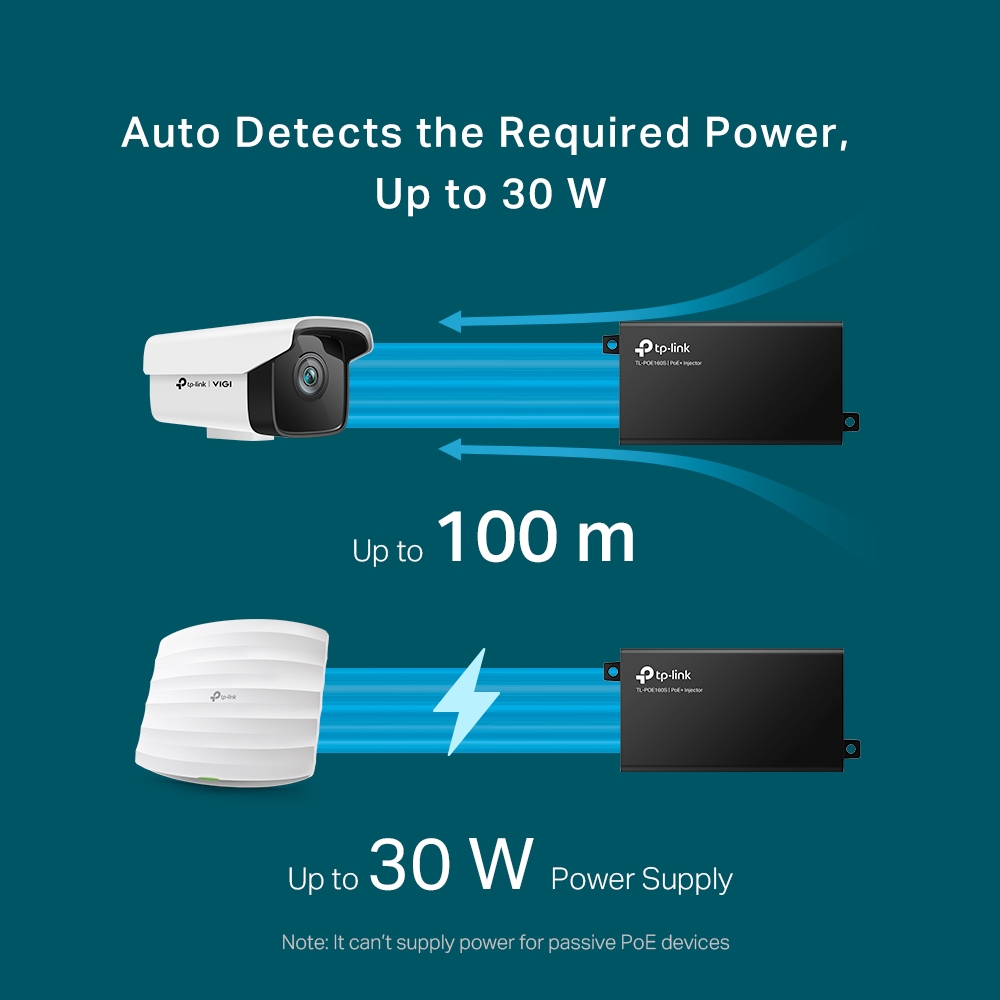

Basic Function	Auto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play
LED Indicator	ON: Supplying power normally OFF: No power supply
Dimensions ( W x D x H )	4.92.31.4 in (12559.436.8 mm)

Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD

Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

Printing & Imaging Specs
Ports	1× Gigabit PoE Port, 1× Gigabit Non-PoE Port
Standards	802.3af/at Compliant
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Power Output	Max. 30 W
Cable Distance	Up to 100 Meters
Dimensions	4.9 × 2.3 × 1.4 in
Input Power	100-240 V, 50/60 Hz
