TP-Link TL-POE170S PoE++ Injector

Name: TP-Link TL-POE170S PoE++ Injector
Brand: TP-Link
SKU: PRD-202607-4486

Buy TP-Link TL-POE170S PoE++ Injector, TP-Link from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quality Service

Quote on request

✓ Available to order · supplied & installed in Malaysia

Key specifications
Ports	1× Gigabit PoE Port, 1× Gigabit Non-PoE Port
Power Output	60 W
Standards	802.3bt/at/af Compliant
Operating Temperature	0°C to 45°C
Material	Metal Casing

Product details

PoE++ Injector Adapter

PORT: 1× Gigabit PoE Port, 1× Gigabit Non-PoE Port

SPEC: 802.3bt/at/af Compliant, 60 W PoE Power, Data and Power Carried over The Same Cable Up to 100 Meters, Steel Case, Pocket Size

NETWORK
Standards and Protocols	IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*

GENERAL
Certification	FCC, CE, RoHS
Environment	Operating Temperature: 0°C to 45°C (32°F to 113°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing
Material	Metal Casing

PACKAGE CONTENTS
Package Contents	PoE++ Injector TL-POE170S Installation Guide Power Cord RJ45 Cable

HARDWARE FEATURES
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

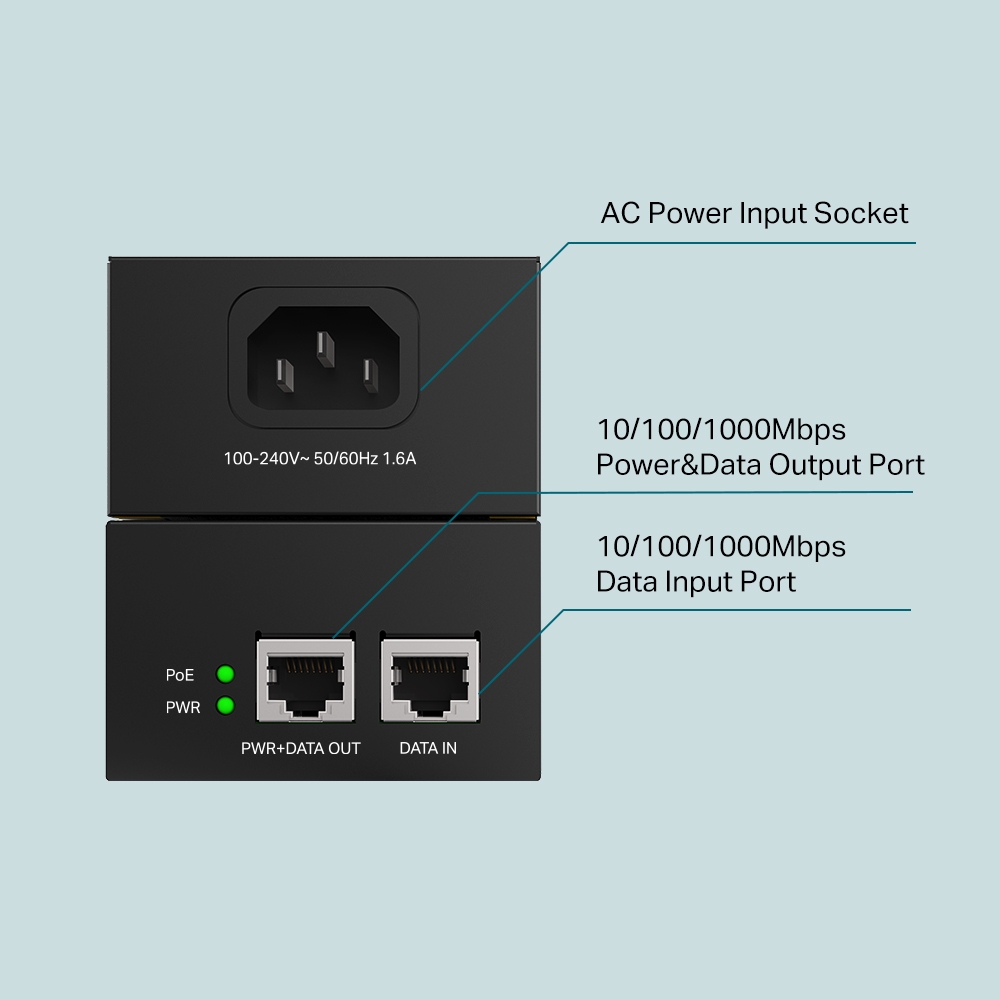

Ports	1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket
Power Consumption	Input: 100-240 V, 50/60 Hz, 1.6A Output: Auto-determine the necessary power requirements (max. 60 W)

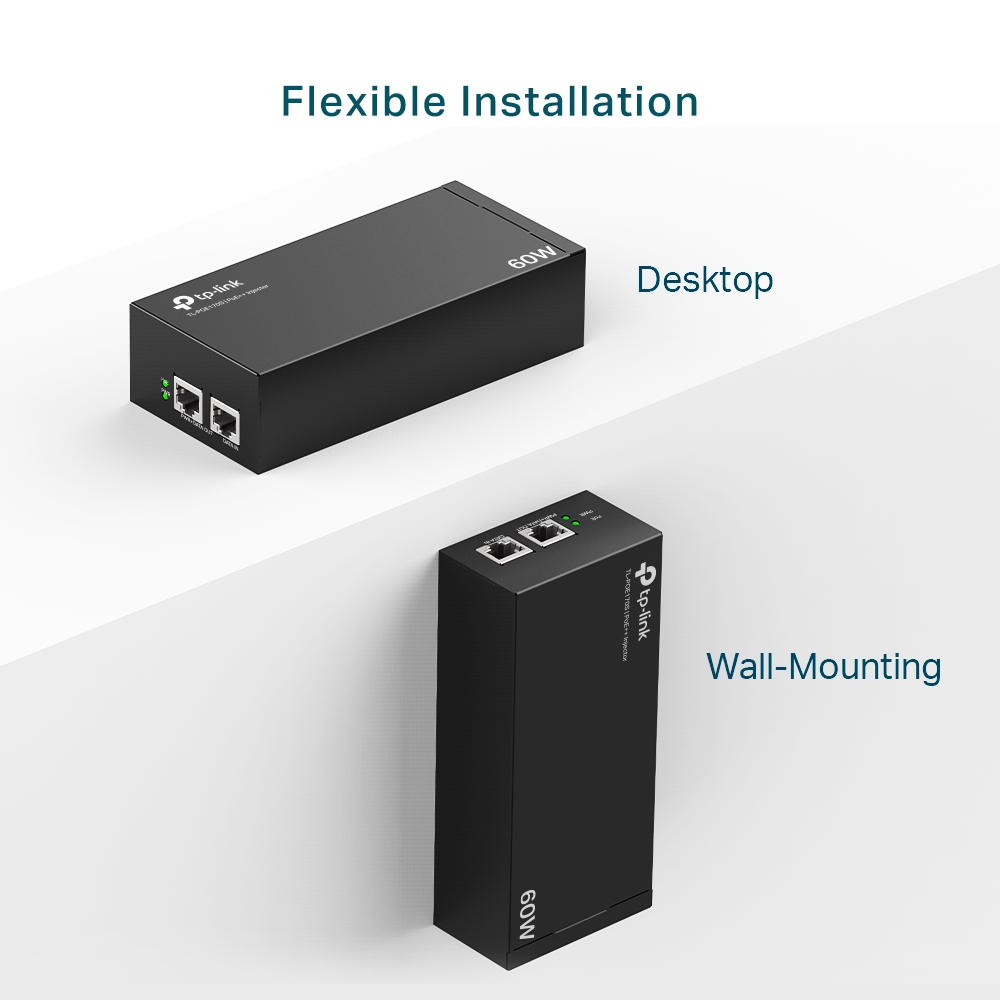

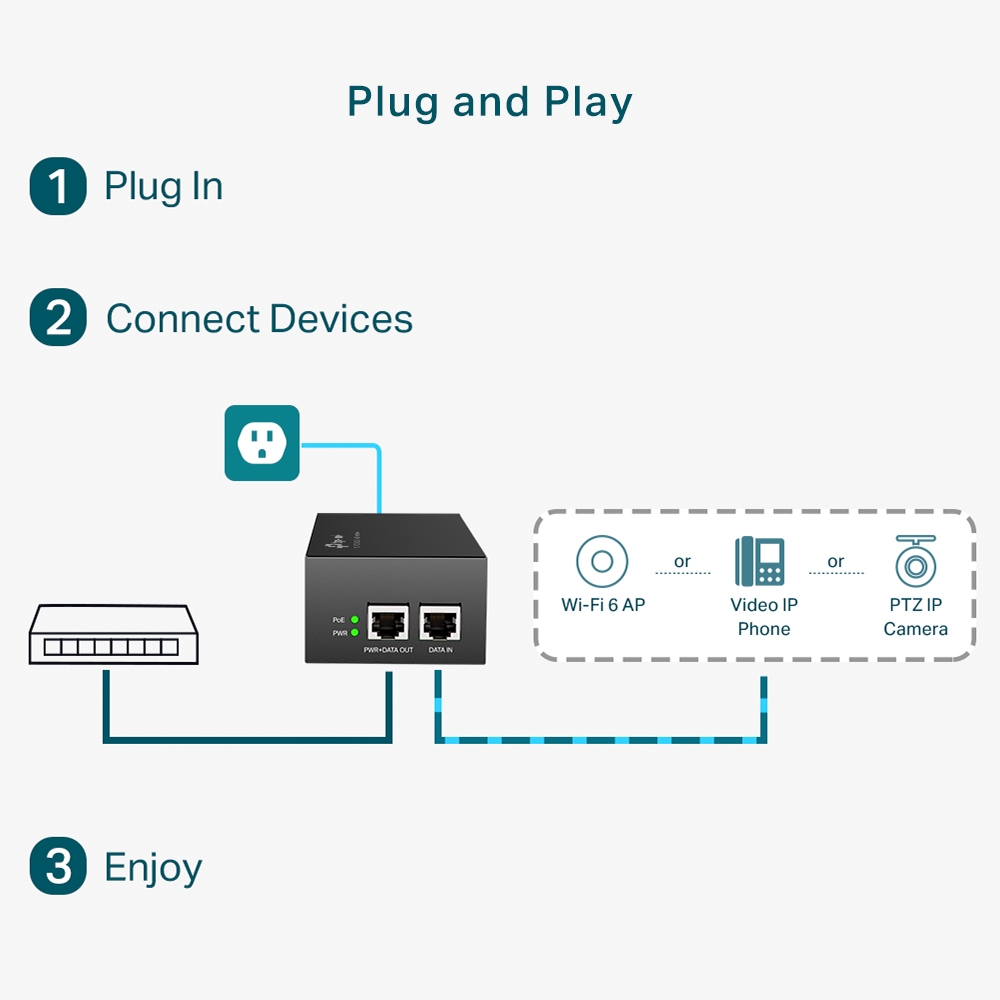

Basic Function	Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play
Dimensions ( W x D x H )	6.12.81.7 in (1557042 mm)

Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD

Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

Printing & Imaging Specs
Ports	1× Gigabit PoE Port, 1× Gigabit Non-PoE Port
Power Output	60 W
Standards	802.3bt/at/af Compliant
Operating Temperature	0°C to 45°C
Material	Metal Casing
Power Input	100-240 V, 50/60 Hz, 1.6A

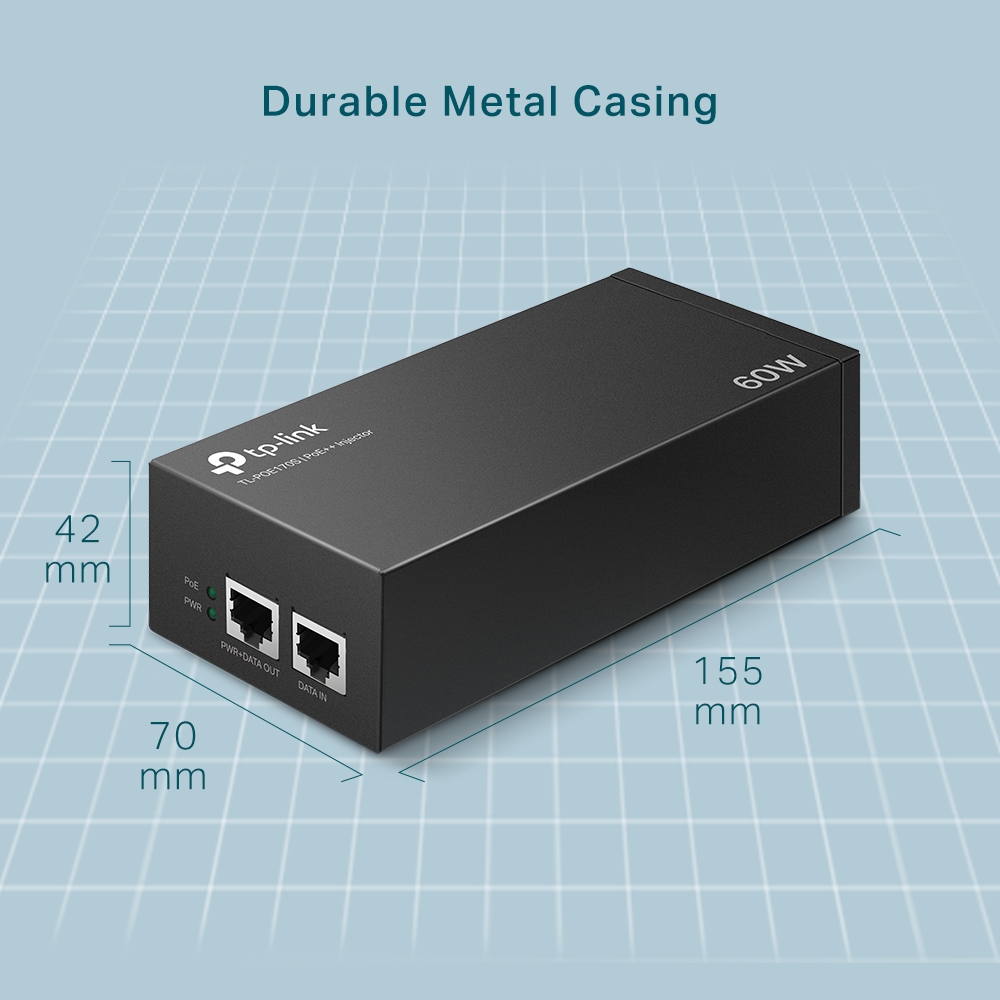

Dimensions	155 × 70 × 42 mm
Cable Distance	Up to 100 Meters
