TP-Link TL-POE4824G 48V Passive PoE Adapter
TP-Link · Switches

TP-Link TL-POE4824G 48V Passive PoE Adapter

TP-Link TL-POE4824G 48V Passive PoE Adapter - 48V Passive PoE Injector AdapterPORT: 1× Gigabit PoE Port, 1× Gigabit Non-PoE PortSPEC: Data and Power Carried ove...

Quote on request
✓ Available to order · supplied & installed in Malaysia
Request Quotation WhatsApp Ask a question
  • Genuine unit through the authorised channel — manufacturer warranty
  • Itemised quotation within 1 working day, B2B invoicing
  • Delivery nationwide — installation available for enterprise gear
Key specifications
Power Output 24 W
Voltage 48 V
Interface 1× Gigabit PoE Port, 1× Gigabit Non-PoE Port
Dimensions 4.3 × 2.3 × 1.5 in. (110×57×38.8 mm)
Operating Temperature 0℃~40℃ (32℉~104℉)
Full specifications ↓

Product details

48V Passive PoE Injector Adapter

PORT: 1× Gigabit PoE Port, 1× Gigabit Non-PoE Port

SPEC: Data and Power Carried over The Same Cable, 48 V Power Input, 24 W PoE Power, Plastic Case


HARDWARE FEATURES

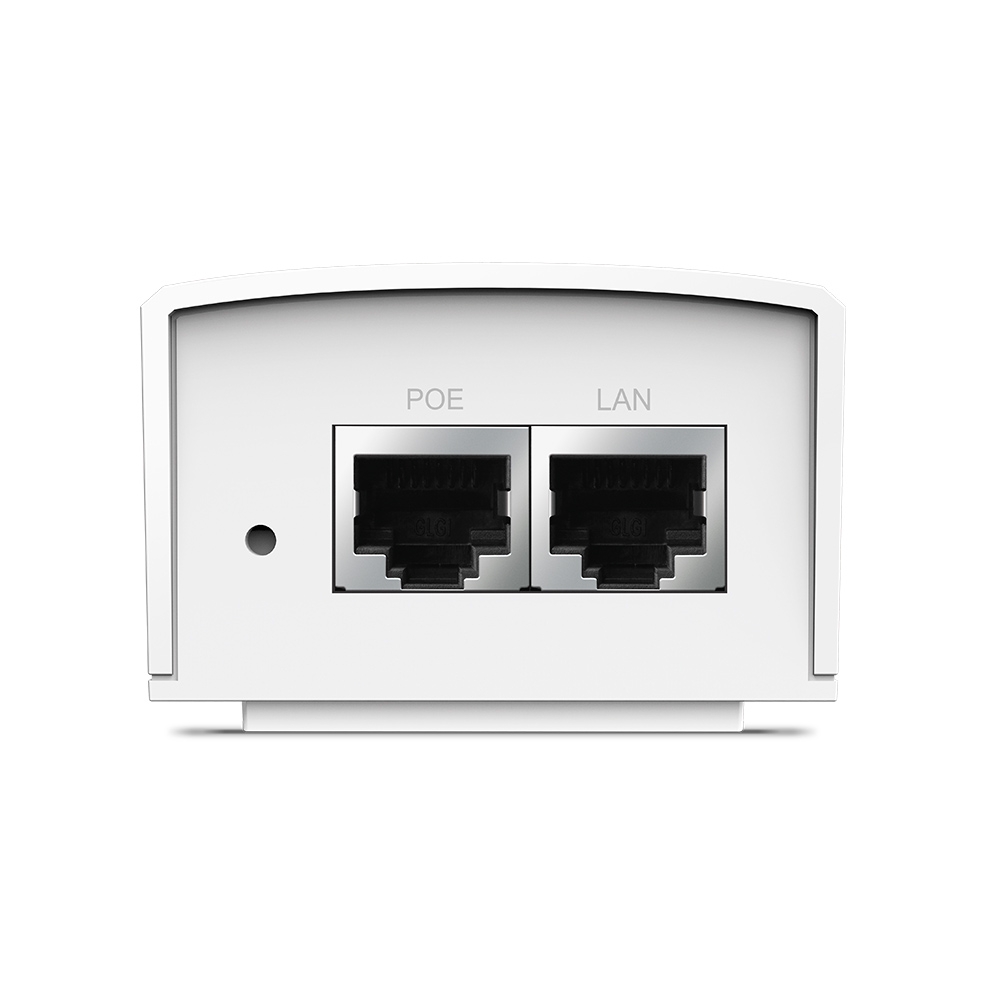

Interface1 10/100/1000Mbps RJ45 Shielded Data IN Port
1 10/100/1000Mbps RJ45 Shielded Passive PoE Port

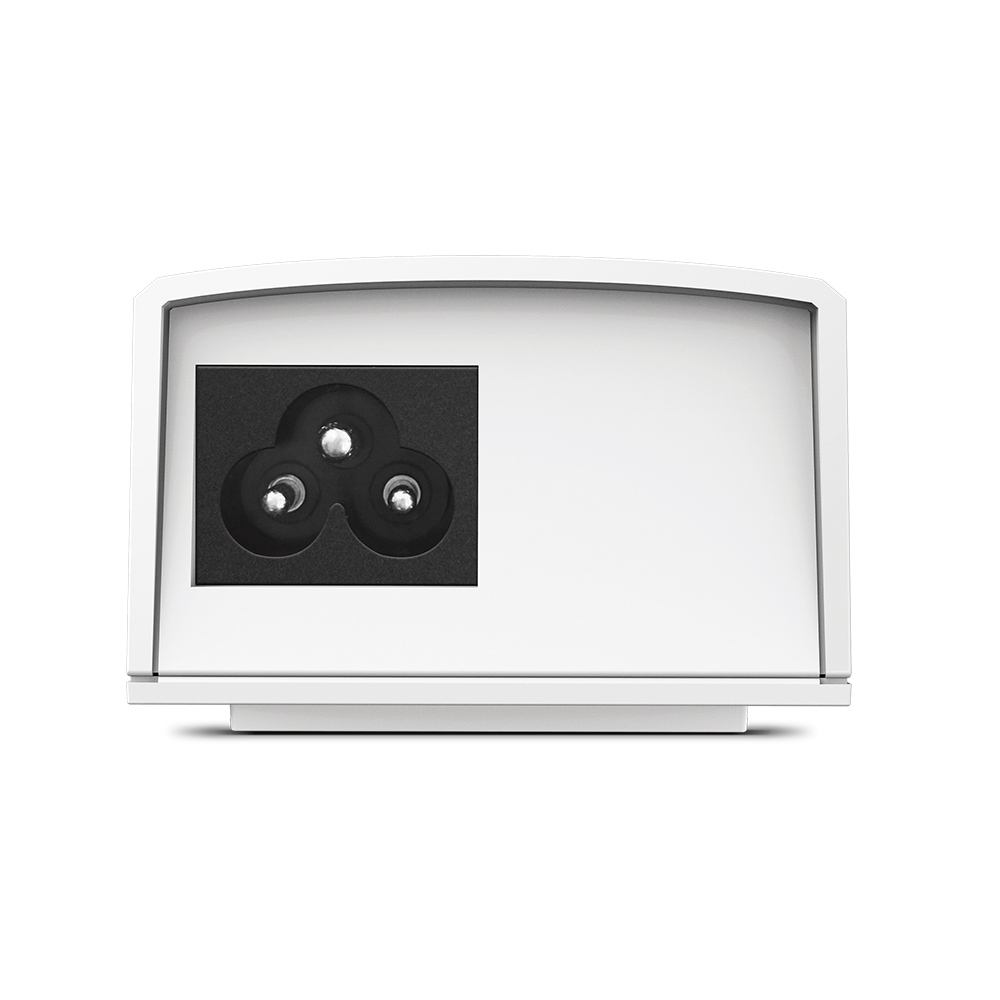

1 48VDC POWER INPUT PORT
Network Media10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

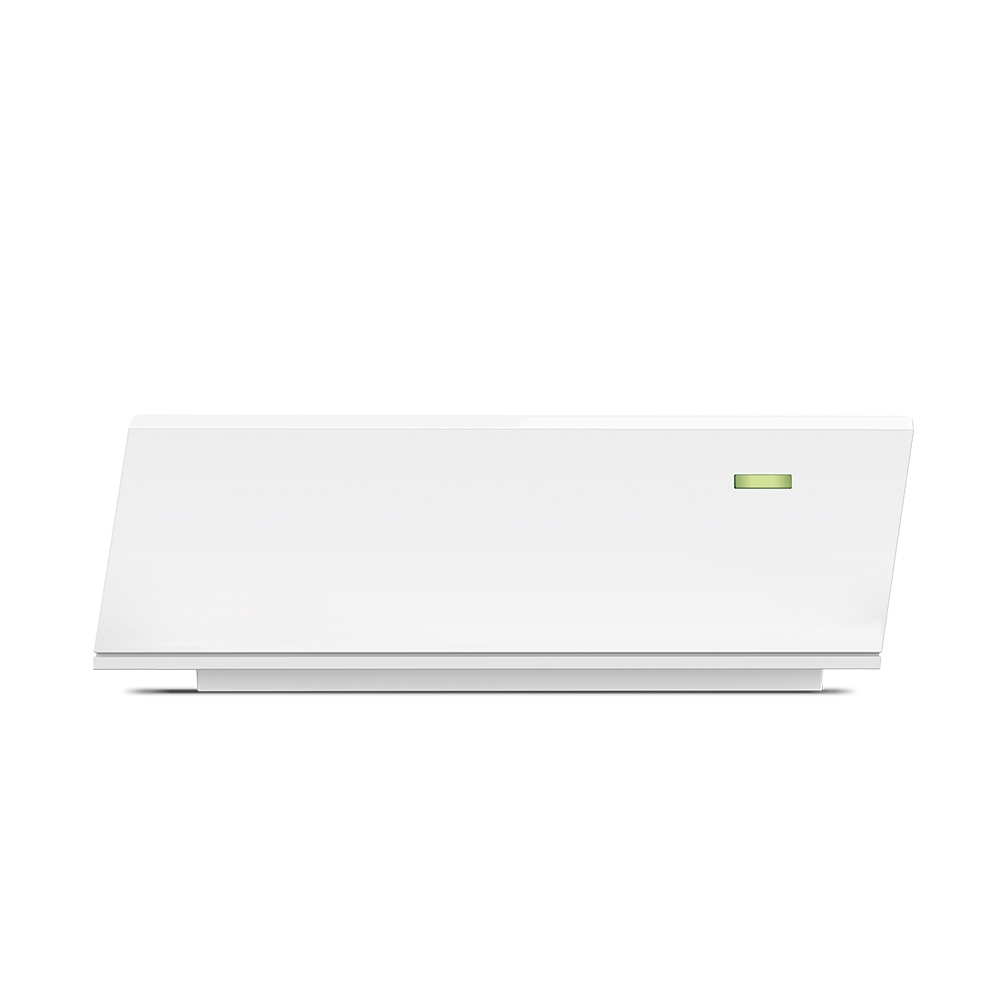

LED IndicatorPWR
Dimensions ( W x D x H )4.3 × 2.3 × 1.5 in.
(110×57×38.8 mm)
OTHERS
CertificationFCC, CE, RoHS
Package Contents48V 24W Passive PoE Adapter TL-POE4824G
Power Cord
Wall Mounting Kits
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
  • Delivery & professional installation
  • Configuration & migration
  • Manufacturer warranty handling
  • Annual maintenance & managed services (MSP)
Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

1700-81-8170 WhatsApp Request Quotation

Specifications

Printing & Imaging Specs
Power Output24 W
Voltage48 V
Interface1× Gigabit PoE Port, 1× Gigabit Non-PoE Port
Dimensions4.3 × 2.3 × 1.5 in. (110×57×38.8 mm)
Operating Temperature0℃~40℃ (32℉~104℉)
Storage Temperature-40℃~70℃ (-40℉~158℉)
CertificationFCC, CE, RoHS
Case MaterialPlastic
