Ubiquiti AFi-Ins AmpliFi Routers
Ubiquiti AFi-Ins AmpliFi Routers -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Wi-Fi Standard | 802.11ac |
| Speed | 2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps |
| Coverage Range | 4,000 sq. ft |
| MIMO | 2.4 GHz: 2x2, 5 GHz: 2x2 |
| Ethernet Ports | 1 Gigabit Ethernet (1 WAN, 1 LAN) |
Product details
With turbocharged 802.11ac Wi-Fi, AmpliFi utilizes multiple self-configuring radios and advanced Wi-Fi antenna technology to bring ubiquitous secure Wi-Fi coverage to any home network. Ensure that your smart TV, wireless security cameras, digital downloads, and streaming devices have the connectivity demanded in today’s modern home.

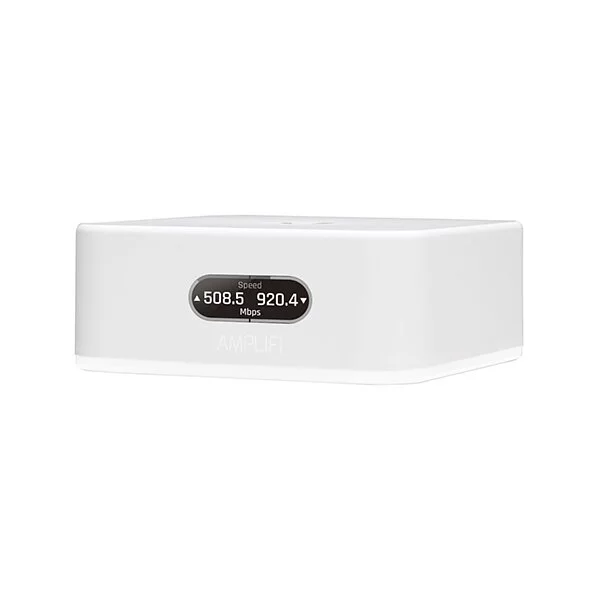

The AmpliFi Instant Wi-Fi System includes a router with an easy-to-use touchscreen display, 1 Gigabit Ethernet port, a WAN port, an Ethernet cable, and one MeshPoint with an Ethernet port to maximize coverage and eliminate dead zones in your home.
The AmpliFi Instant Wi-Fi system provides superior coverage with a range of up to 4,000 sq. ft and quick setup for whole home coverage with seamless Wi-Fi.
Specifications
| Dimensions | 99.5 x 97.8 x 33.05 mm (3.92 x 3.85 x 1.30") |
| Weight | 215 g (7.58 oz) |
| Max. TX Power | 22 dBm |
| MIMO | 2.4 GHz: 2x2, 5 GHz: 2x2 |
| Speeds | 2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps |

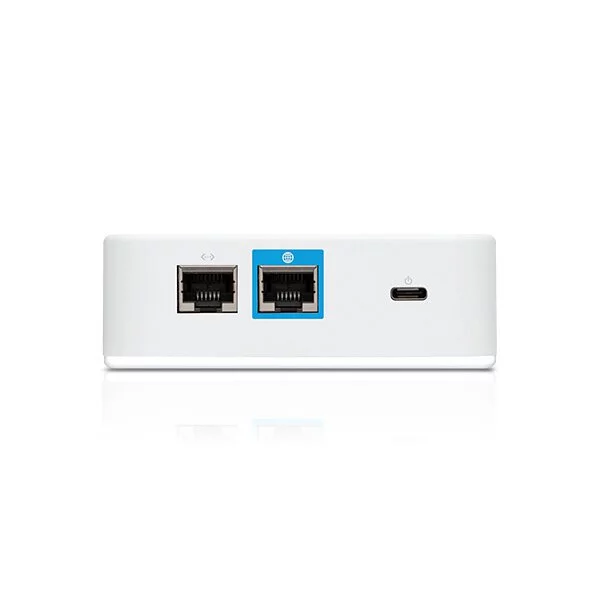

| Networking Interface | Wi-Fi/Gigabit Ethernet (1) WAN, (1) LAN |
| Max. Power Consumption | 9W |
| ESD/EMP Protection | ± 24kV Air/Contact |
| Buttons | Reset |
| Antennas | (2) Dual-Band Antennas, Single-Polarity |
| Router Display | 30.73 mm (1.21") Diagonal, 160 x 64, 142 ppi, Capacitive Touch, Grayscale |
| Wi-Fi Standards | 802.11ac |
| Power Save | Supported |
| Wireless Security | WPA2-PSK AES/TKIP |
| Operating Temperature | 14 to 131° F (-10 to 55° C) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, CE, IC |
Supported Data Rates
| 802.11ac | 13 Mbps to 866.7 Mbps (MCS0 - MCS9, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Wi-Fi Standard | 802.11ac |
| Speed | 2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps |
| Coverage Range | 4,000 sq. ft |
| MIMO | 2.4 GHz: 2x2, 5 GHz: 2x2 |
| Ethernet Ports | 1 Gigabit Ethernet (1 WAN, 1 LAN) |
| Wireless Security | WPA2-PSK AES/TKIP |
| Operating Temperature | 14 to 131° F (-10 to 55° C) |
| Max. Power Consumption | 9W |
