Ubiquiti airMAX 5GHz LiteAP AC Access Point (LAP-120)
Ubiquiti airMAX 5GHz LiteAP AC Access Point (LAP-120) -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Frequency | 5 GHz |
| Antenna Gain | 16 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter |
| Operating Temperature | -40 to 70° C |
Product details

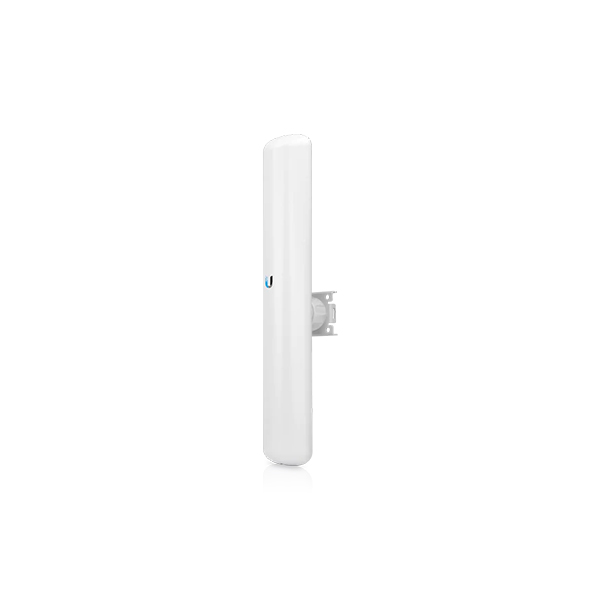

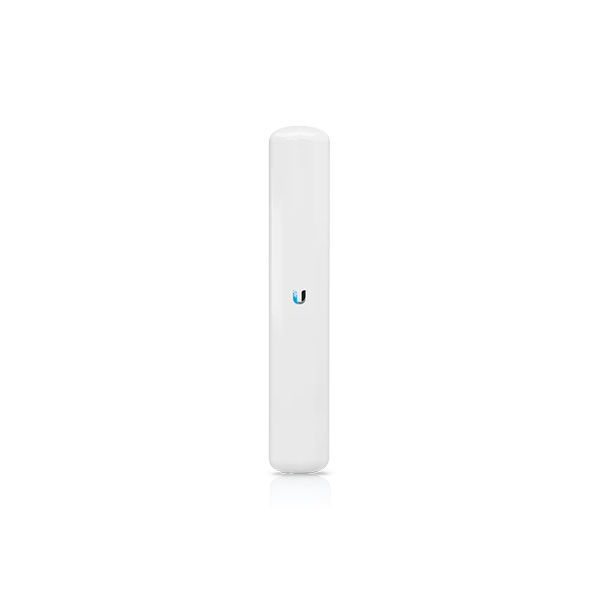

The LAP-120 is a 5 GHz, 16 dBi, 120° airMAX® AC AP featuring an ultra-lightweight form factor. It was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. The ball-joint mount provides adjustment flexibility for versatile mounting options. Minimal fasteners simplify installation. No tools are needed; only a single wrench is required for pole-mounting.
| LAP-120/th> | |
|---|---|
| Dimensions (Mount Not Included) | 452.3 x 78.7 x 54.4 mm (17.81 x 3.10 x 2.14") |
| Weight (Mount Not Included) | 420 g (14.82 oz) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Antenna Gain | 16 dBi |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20 - 26VDC |
| ESD/EMP Protection | ± 24kV Contact / Air |
| Shock and Vibrations | ETSI300-019-1.4 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 77 N @ 200 km/h (17.3 lbf @ 125 mph) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150 - 5250 5250 - 5350 5470 - 5725 5725 - 5850 |
| Worldwide | 5150 - 5875 |
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Frequency | 5 GHz |
| Antenna Gain | 16 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter |
| Operating Temperature | -40 to 70° C |
| Wind Survivability | 200 km/h |
| Weight | 420 g |
| Dimensions | 452.3 x 78.7 x 54.4 mm |
