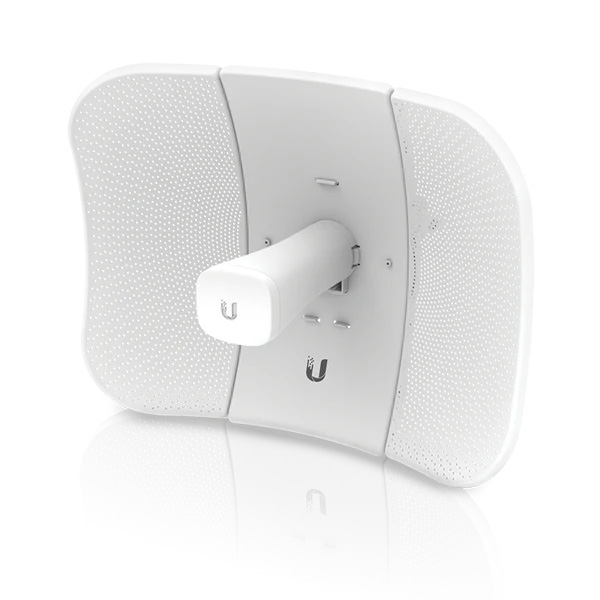

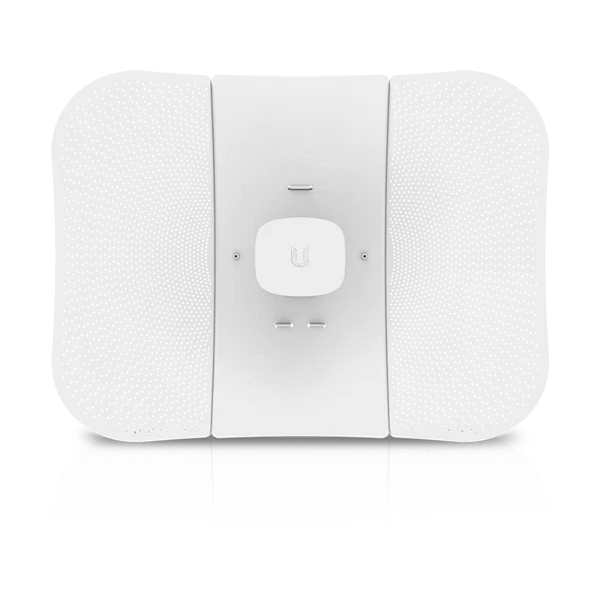

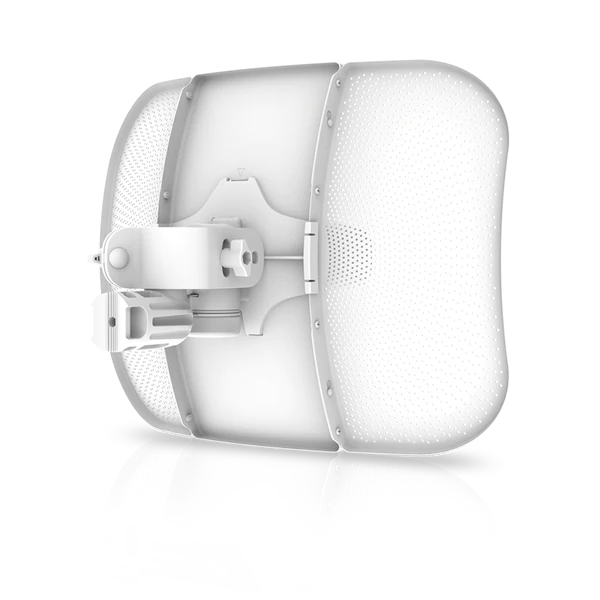

Ubiquiti LBE-5AC-GEN2 LiteBeam Wireless Bridge 100Mb LAN,GigE, AirMax AC, White
Buy Ubiquiti LBE-5AC-GEN2 LiteBeam Wireless Bridge 100Mb LAN,GigE, AirMax AC, White, Ubiquiti from Printer Bullet - Everything for office. Fast & Free Home Deli...
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Interface | 10/100/1000 Ethernet Port |
| Gain | 23 dBi |
| Max Power Output | 25 dBm |
| Max Power Consumption | 7W |
| Power Supply | 24V, 0.3A Gigabit PoE Adapter |
Product details
ULTRA-LIGHTWEIGHT DESIGN WITH PROPRIETARY AIRMAX AC CHIPSET AND DEDICATED MANAGEMENT WI-FI FOR EASY UISP MOBILE APP SUPPORT AND FAST SETUP. THIS AIRMAX AC CPE FEATURES ADJUSTMENT FLEXIBILITY IN THREE AXES FOR VERSATILE MOUNTING OPTIONS.
LITEBEAM | |
|---|---|
| Dimensions | 358 x 271.95 x 272.50 mm (14.09 x 10.71 x 10.73") |
| Weight | Without Mount: 800 g (1.76 lb), With Mount 980 g (2.16 lb) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Gain | 23 dBi |
| Max. Power Output | 25 dBm |
| Max. Power Consumption | 7W |
| Power Supply | 24V, 0.3A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 275 N @ 200 km/h (61.8 lbf @ 125 mph) |
| OPERATING FREQUENCY (MHZ) | |
| Worldwide | 5150-5875 |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150-5250 5250-5350 5240-5725 5725-5850 |
| MANAGEMENT RADIO (MHZ) | |
| Worldwide | 2412 - 2472 |
| US/CA | 2412 - 2462 |
Supplied & supported by PrinterBullet
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Need help choosing?
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Interface | 10/100/1000 Ethernet Port |
| Gain | 23 dBi |
| Max Power Output | 25 dBm |
| Max Power Consumption | 7W |
| Power Supply | 24V, 0.3A Gigabit PoE Adapter |
| Operating Temperature | -40 to 70° C |
| Weight Without Mount | 800 g |
| Wind Survivability | 200 km/h |
