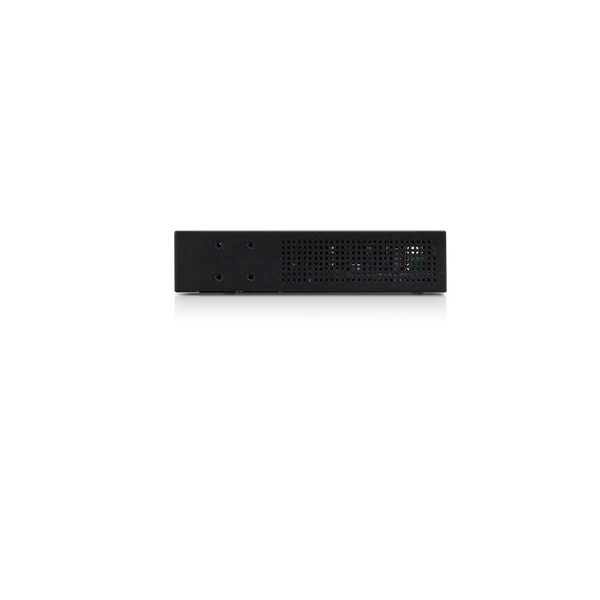

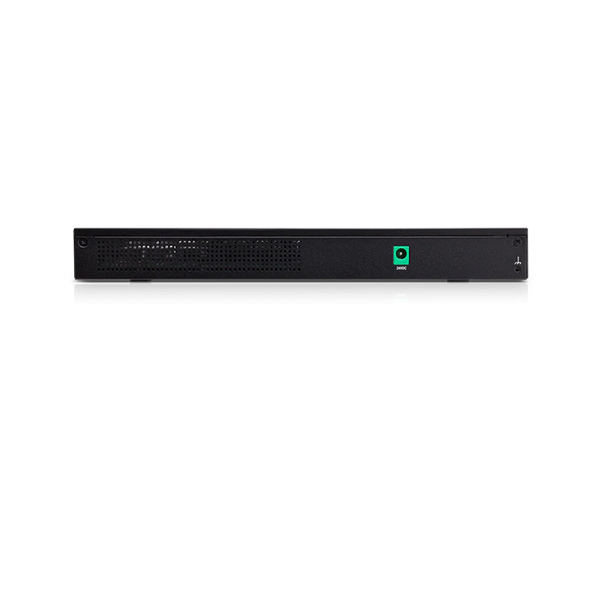

Ubiquiti Networks 12-Port EdgeRouter 12 Advanced Network Router
Ubiquiti Networks 12-Port EdgeRouter 12 Advanced Network Router -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Ports | 10 Ethernet Ports, 2 SFP Ports |
| Processor | 4-Core 1 GHz MIPS64 |
| Memory | 1 GB DDR3 RAM |
| Storage | 4 GB eMMC, 8 MB SPI NOR |
| Max Power Consumption | 20W |
Product details
The EdgeRouter 12P is a high performance Gigabit Router with 24V 2-Pair PoE output on each port. With increased performance over the previous generation of routers, the EdgeRouter 12P delivers up to 3.4 million pps for 64-byte packets. Ten Gigabit Ethernet ports offer copper connectivity, while two SFP ports offer fiber connectivity. The EdgeRouter 12P supports Layer-2 switching and scalable configuration using EdgeOS or UISP.
| EdgeRouter 12P | |
|---|---|
| Dimensions | 268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22") |
| Weight | 700 g (1.54 lb) |
| Max. Power Consumption | 20W (Excludes PoE Output) |
| Power Method | External AC/DC Power Adapter, 12W (24VDC, 2.5A) (Included) |
| Power Supply | External AC/DC Adapter |
| Supported Voltage Range | 9 - 30VDC |
| Button | Reset |
| LEDs System Data Ports SFP Data Port | Power PoE, Speed/Link/Activity Link/Activity |
| Processor | 4-Core 1 GHz MIPS64 |
| System Memory | 1 GB DDR3 RAM |
| On-Board Flash Storage | 4 GB eMMC, 8 MB SPI NOR |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Interfaces Management Networking | (1) RJ45 Serial Port, (10) Ethernet Ports (Default Port 0) (10) 10/100/1000 RJ45 Ports, (2) 1 Gbps SFP Ports |
| Operating Temperature | -10 to 40° C (14 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE with 24VDC Power Adapter | |
| PoE Interfaces | (10) 24V Passive PoE Ports, 2-Pair (Pins 4, 5+; 7, 8-) |
| Passive PoE Max. Wattage per Port | 17W (24V) |
| Passive PoE Voltage Range | 24V: 20 to 30V |
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Ports | 10 Ethernet Ports, 2 SFP Ports |
| Processor | 4-Core 1 GHz MIPS64 |
| Memory | 1 GB DDR3 RAM |
| Storage | 4 GB eMMC, 8 MB SPI NOR |
| Max Power Consumption | 20W |
| Operating Temperature | -10 to 40° C |
| Dimensions | 268.1 x 136.5 x 31.1 mm |
| Weight | 700 g |
