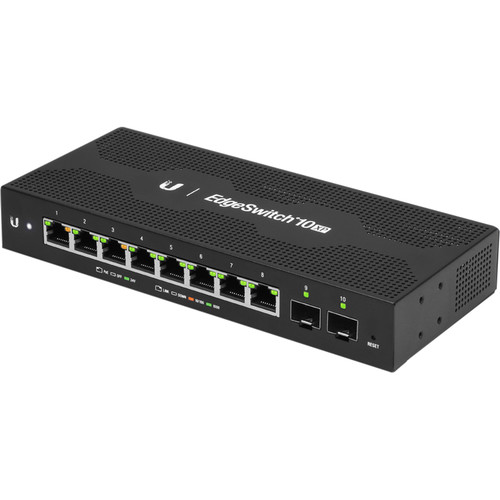

Ubiquiti Networks EdgeSwitch 10XP 10-Port Gigabit PoE Switch
Buy Ubiquiti Networks EdgeSwitch 10XP 10-Port Gigabit PoE Switch, Ubiquiti from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quality...
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Ports | (8) 10/100/1000 Mbps RJ45 Ports, (2) 1 Gbps SFP Ports |
| PoE Output | 24V passive PoE |
| Throughput | 10 Gbps |
| Switching Capacity | 20 Gbps |
| Power Consumption | 8W |
Product details
Optimized for WISP deployments, the EdgeSwitch® 10XP is a managed PoE switch with SFP ports. Eight Gigabit RJ45 ports offer copper connectivity with 24V PoE output, while two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control using a redesigned UI. Management is also available through UISP.
Features:
- (8) 10/100/1000 Mbps ethernet ports and (2) SFP ports
- Supports 24V passive PoE output on all RJ45 ports
- Powered by external AC/DC adapter
- DC jack supports battery backup with EdgePower™ (sold separately)
- Desk, wall, and rackmount options*
* Rackmount sold separately
| EdgeSwitch 10XP | |
|---|---|
| Dimensions | 207 x 31.1 x 90 mm (8.15 x 1.22 x 3.54") |
| Weight | 500 g (1.10 lb) |
| Total Non-Blocking Throughput | 10 Gbps |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Max. Power Consumption (Excluding PoE Output) | 8W |
| Power Method | 24VDC, 2.5A |
| Supported Voltage Range | 9 - 30VDC, 5A |
| Power Supply | 24VDC, 2.5A Power Adapter (Included) |
| LEDs System RJ45 Data Ports SFP Data Ports | Status PoE, Link/Speed/Activity Link/Activity |
| Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports |
| Management Interface | Ethernet In-Band |
| Certifications | CE, FCC, IC |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -10 to 50° C (14 to 122° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Ports | (8) 10/100/1000 Mbps RJ45 Ports, (2) 1 Gbps SFP Ports |
| PoE Output | 24V passive PoE |
| Throughput | 10 Gbps |
| Switching Capacity | 20 Gbps |
| Power Consumption | 8W |
| Operating Temperature | -10 to 50° C |
| Dimensions | 207 x 31.1 x 90 mm |
| Weight | 500 g |
