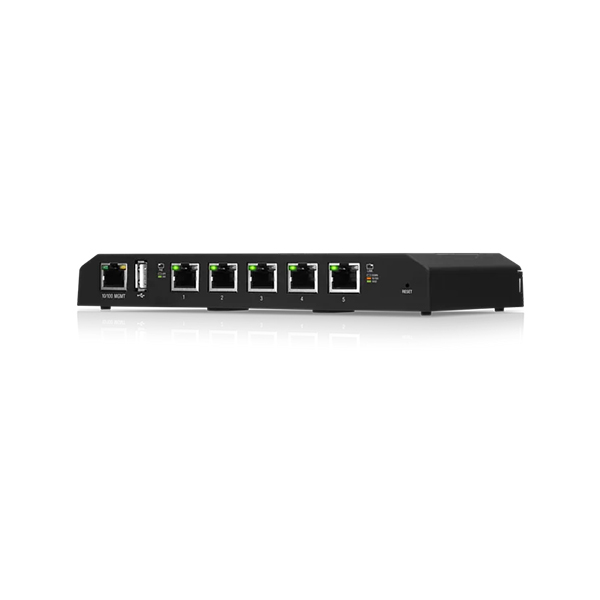

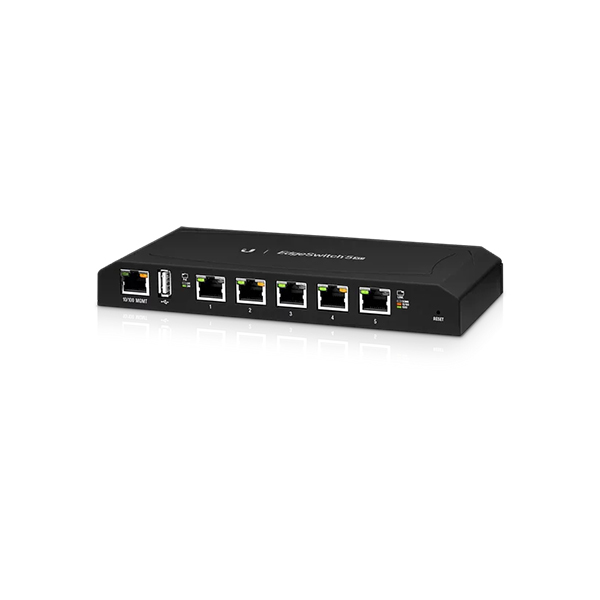

Ubiquiti Networks ES-5XP EdgeSwitch 5-Port Gigabit 24V PoE
Buy Ubiquiti Networks ES-5XP EdgeSwitch 5-Port Gigabit 24V PoE, Ubiquiti from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quality Se...
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Ports | 5 Gigabit PoE Ports |
| PoE Voltage | 24V |
| Power Input | 24VDC, 2.5A |
| Max Power Consumption | 60W |
| Max PoE Per Port | 11.5W |
Product details
Introducing the Advanced Power over Ethernet Switches, EdgeSwitch™ XP from Ubiquiti. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect your PoE devices, simply enable PoE in the easy-touse EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non‑PoE devices can be connected.
- 5 Gigabit PoE Ports
- 24V Configurable Passive PoE
- EdgeSwitch XP Configuration Interface
- Wall-Mountable
Features:
| EdgeSwitch 5XP | |
|---|---|
| Dimensions | 197 x 87.5 x 27.3 mm (7.76 x 7.28 x 1.61") |
| Weight | 250 g (8.82 oz) |
| Power Input | 24VDC, 2.5A Power Adapter (Included) |
| Max. Power Consumption | 60W |
| PoE Out Voltage Range | 22-24VDC |
| Max. PoE Wattage Per Data Port | 11.5W |
| ESD Rating | ±24 kV Air/Contact |
| PoE Method | Passive |
| Button | Reset |
| USB Port | 2.0 Type A (Reserved for Future Use) |
| Processor | MIPS 24K, 400 MHz |
| System Memory | 64 MB |
| Code Storage | 8 MB |
| PoE Configurable Per Port Management Port Data Ports | N/A Off/24V |
| LEDs Per Port Management Port Data Ports | Power/Link PoE, Speed/Link/Activity |
| Networking Interfaces Management Port Data Ports | (1) 10/100 Ethernet Port (5) 10/100/1000 Ethernet Ports |
| Operating Humidity | 90% Noncondensing |
| Operating Temperature | -25 to 55° C (-13 to 131° F) |
| Certifications | CE, FCC, IC |
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Ports | 5 Gigabit PoE Ports |
| PoE Voltage | 24V |
| Power Input | 24VDC, 2.5A |
| Max Power Consumption | 60W |
| Max PoE Per Port | 11.5W |
| Dimensions | 197 x 87.5 x 27.3 mm |
| Weight | 250 g |
| Operating Temperature | -25 to 55° C |
