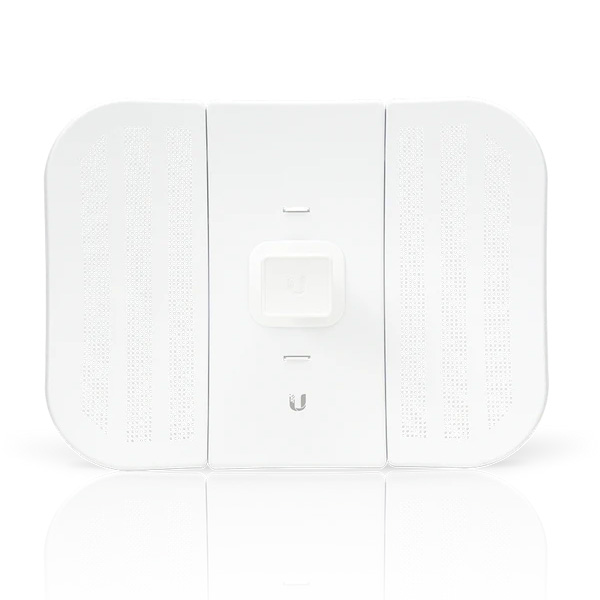

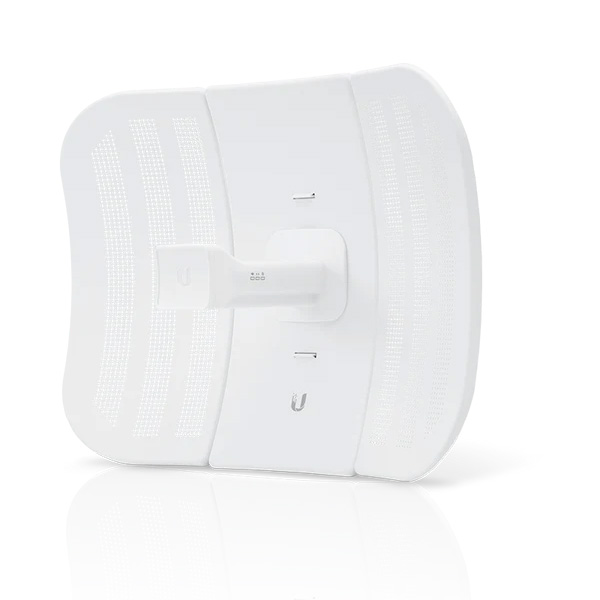

Ubiquiti Networks LBE-M5-23 LiteBeam M5 with InnerFeed Technology
Ubiquiti Networks LBE-M5-23 LiteBeam M5 with InnerFeed Technology -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Operating Frequency | Worldwide: 5150 - 5875 MHz |
| Output Power | 25 dBm |
| Antenna Gain | 23 dBi |
| Dimensions | 362 x 267 x 184 mm |
| Weight | 750 g |
Product details
- Custom Ubiquiti® airMAX® Processor
- High-Gain Antenna with Proprietary InnerFeed™ Technology
- Innovative Snap-Lock Assembly for Quick Installation

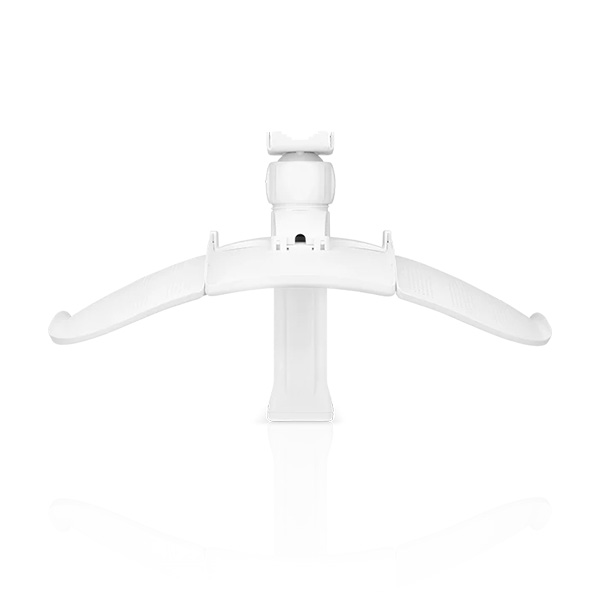

- Convenient Ball Joint Design for Flexible Mounting and Aiming
- Lightweight and Compact Design
- Energy Efficient Wireless Bridge
Each of these models was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds.
Features:
| Physical / Electrical / Environmental | |
|---|---|
| Dimensions (No Mount) | 362 x 267 x 184 mm (14.25 x 10.51 x 7.24") |
| Weight (No Mount) | 750 g (24.11 oz) |
| Mounting Kit | Pole Mounting Kit (Included) |
| Max. Power Consumption | 4W |
| Power Supply | 24V, 0.2A PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 |
| ETSI Specification | EN 302 326 DN2 |
| ESD/EMP Protection | ± 24 KV Contact / Air |
| System Information | |
| Processor Specs | Atheros MIPS 74Kc, 533 MHz |
| Memory | 64 MB |
| Networking Interface | (1) 10/100 Ethernet Port |
| Antenna Information | |
| Operating Frequency | Worldwide: 5150 - 5875 MHz USA: 5725 - 5850 MHz |
| Output Power | 25 dBm |
| Gain | 23 dBi |
| Max. VSWR | 1.5:1 |
| Regulatory / Compliance Information | |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Operating Frequency | Worldwide: 5150 - 5875 MHz |
| Output Power | 25 dBm |
| Antenna Gain | 23 dBi |
| Dimensions | 362 x 267 x 184 mm |
| Weight | 750 g |
| Max Power Consumption | 4W |
| Operating Temperature | -40 to 70° C |
| Processor | Atheros MIPS 74Kc, 533 MHz |
