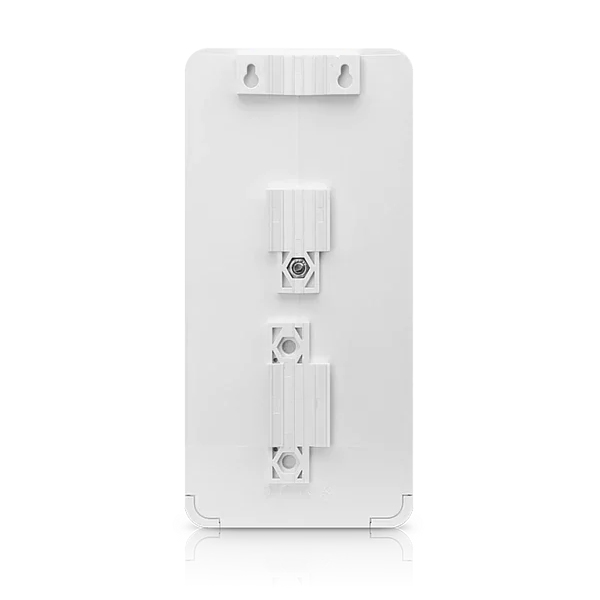

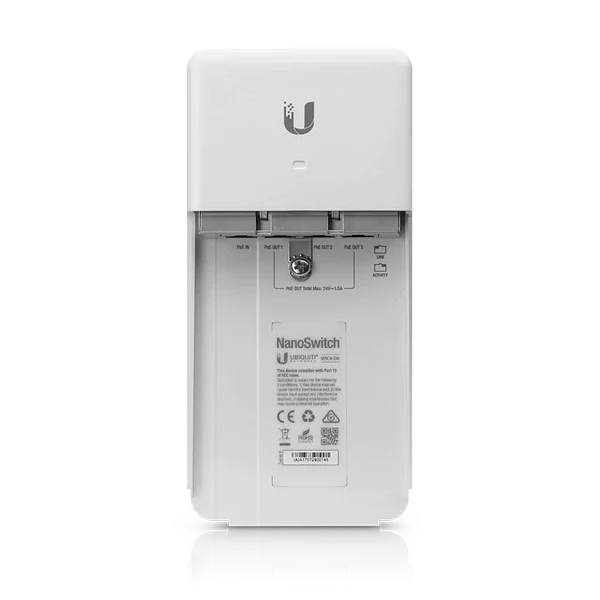

Ubiquiti Networks NanoSwitch N-SW Outdoor 4-Port PoE Passthrough Switch
Ubiquiti Networks NanoSwitch N-SW Outdoor 4-Port PoE Passthrough Switch -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Ports | 4 Gigabit Ethernet RJ45 |
| PoE Power Output | 24W per port |
| Total Line Rate | 4 Gbps |
| Power Consumption | 1.5W |
| Power Method | Passive 24V PoE |
Product details
It is powered by 24V Passive PoE and provides up to 24W of power on three PoE out ports. The NanoSwitch is designed for outdoor deployment and supports up to 4 Gbps total, non-blocking line rate.

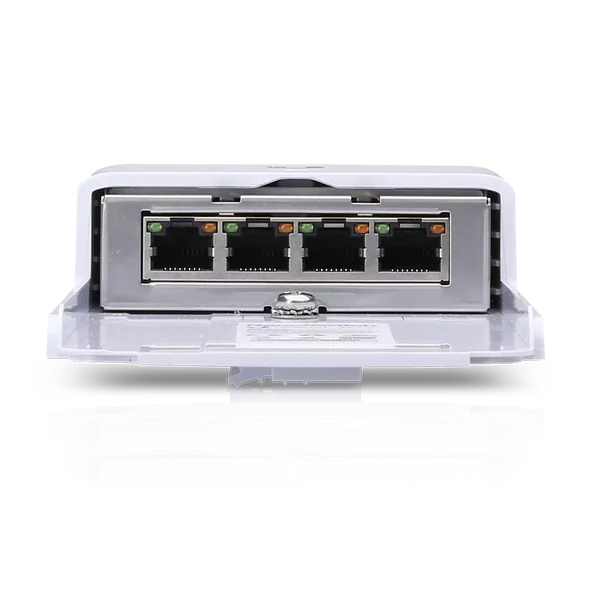

- (1) Gigabit 24V Passive PoE In Port
- (3) Gigabit 24V Passive PoE Out Ports
- Outdoor, Weather-Resistant Enclosure
Features:
| Mechanical | |
|---|---|
| Dimensions | 196 x 934 x 32 mm ( 7.73 x 3.68 x 1.28 ") |
| Weight | 269 g (9.5 oz) |
| Enclosure Characteristics | White Polycarbonate |
| Hardware | |
| Processor | RTL8367N-VB |
| On-Board Flash Storage | 4Kbits |
| Total Non-Blocking Line Rate | 4Gbps |
| TYP. Power Consumption | 1.5W |
| Power Method | Passive 24V PoE-in |
| Supported Voltage Range | Passive 24V PoE-in |
| Networking Interfaces | (4) 10/100/1000 Mbps Ethernet RJ45 |
| PoE Interfaces | Passive 24V PoE-in |
| Max PoE+ Wattage per Port by PSE | 24V@1A per port / Total [email protected] for three ports |
| Passive PoE Max wattage per port | 24W per port / Total 36W for three ports |
| Operating Temperature | -30C ~ 70C |
| Operating Humidity | 5 to 95% Non-Condensing |
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Ports | 4 Gigabit Ethernet RJ45 |
| PoE Power Output | 24W per port |
| Total Line Rate | 4 Gbps |
| Power Consumption | 1.5W |
| Power Method | Passive 24V PoE |
| Dimensions | 196 x 934 x 32 mm |
| Weight | 269 g |
| Operating Temperature | -30°C to 70°C |
