Ubiquiti Networks UAP-AC-M-PRO UniFi AC Mesh Pro AP Dual-Band Access Point | UAP-AC-Mesh-PRO
Buy Ubiquiti Networks UAP-AC-M-PRO UniFi AC Mesh Pro AP Dual-Band Access Point | UAP-AC-Mesh-PRO, Ubiquiti from Printer Bullet - Everything for office. Fast & F...
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| WiFi Standards | 802.11a/b/g/n/ac |
| Bands | Dual-band (5 GHz 3x3 MIMO, 2.4 GHz 802.11n) |
| Aggregate Throughput | 1.75 Gbps |
| Ethernet Ports | (2) 10/100/1000 Gigabit RJ45 |
| Power Method | 802.3af PoE |
Product details
- 802.11ac Wave 1 WiFi technology
- 5 GHz (3x3 MIMO) band with a 1.3 Gbps throughput rate
- 2.4 GHz (802.11n) band with a 450 Mbps throughput rate
- Powered with 802.3af PoE*
- (2) GbE RJ45 ports
Dual-band, 802.11ac Wave 1 access point with an omnidirectional super antenna and 3x3 MIMO functionality that can reach a 1.75 Gbps aggregate throughput rate.

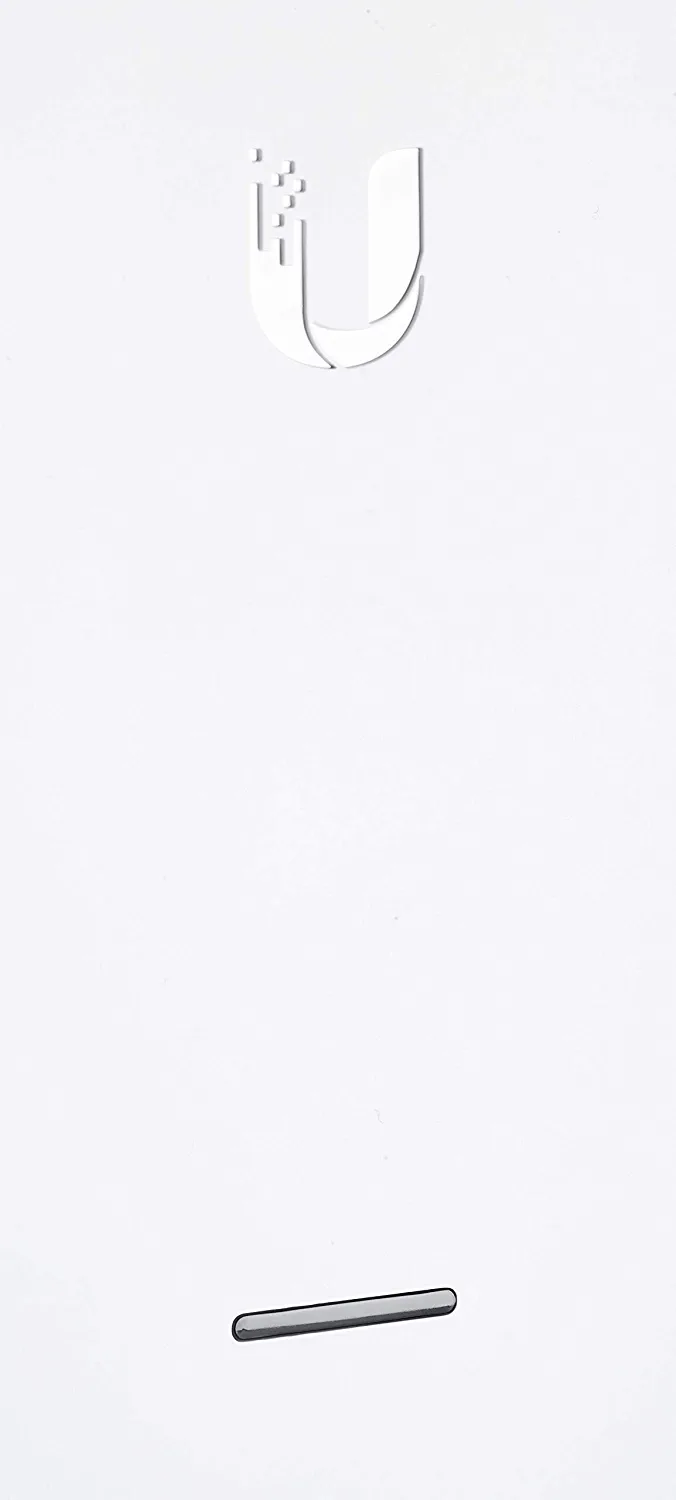

The Access Point AC Mesh Pro (UAP AC Mesh Pro) is a high-performance, outdoor-ready, dual-band, 802.11ac WiFi access point than can reach a 1.75 Gbps aggregate throughput rate with its 5 GHz (3x3 MIMO) and 2.4 GHz (802.11n) bands. The UAP AC Mesh Pro also features a proprietary, omnidirectional super antenna to provide exceptional 360° coverage, as well as symmetrical long-range transmission up to 183 meters. This access point is powered with 802.3af PoE and is equipped with (2) GbE RJ45 ports to support multiple high-speed LAN connections. The UAP AC Mesh Pro can be set up in minutes and fully managed with the UAP Network web application or mobile app.
Features:
| Mechanical | |
|---|---|
| Dimensions | 343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37") |
| Weight | 633 g (1.40 lb) |
| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Ports | (2) 10/100/1000 Ethernet |
| Buttons | Reset |
| Antennas | 3 Dualband antennas |
| Wi-Fi Standards | 802.11a/b/g/n/ac |
| Power Method | 802.3af PoE |
| Power Supply | PoE Injector 48VDC -0.5A Gigabit |
| Maximum Power Consumption | 9W |
| Max TX Power | 22 dBm |
| BSSID | Up to Four per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |

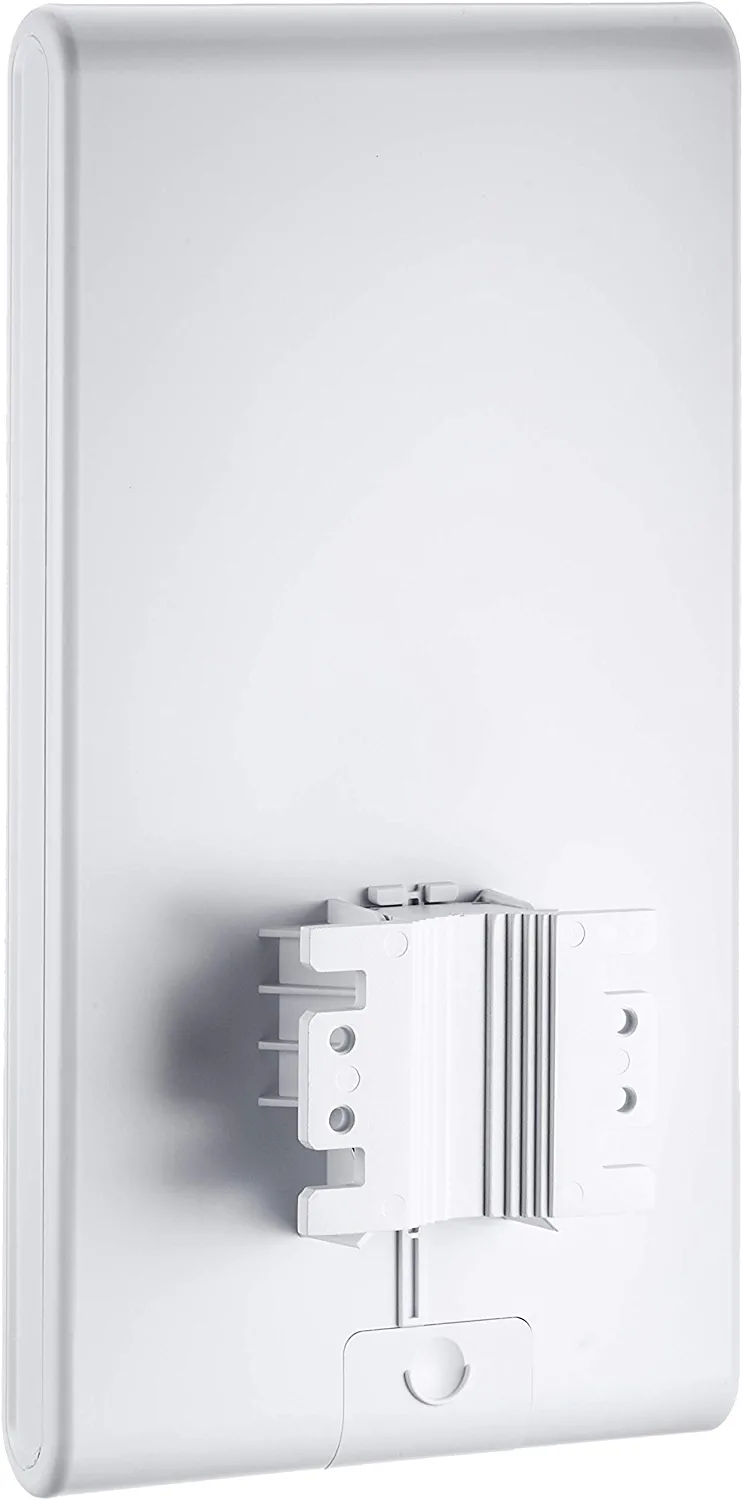

| Mounting | Wall/Pole (Pole Kit Included) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 100+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| WiFi Standards | 802.11a/b/g/n/ac |
| Bands | Dual-band (5 GHz 3x3 MIMO, 2.4 GHz 802.11n) |
| Aggregate Throughput | 1.75 Gbps |
| Ethernet Ports | (2) 10/100/1000 Gigabit RJ45 |
| Power Method | 802.3af PoE |
| Operating Temperature | -40 to 70° C |
| Dimensions | 343.2 x 181.2 x 60.2 mm |
| Weight | 633 g |
