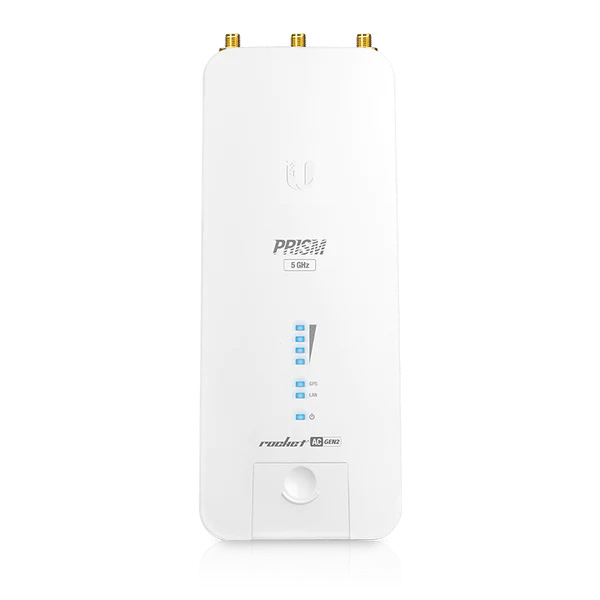

Ubiquiti RP-5AC-GEN2 Rocket 5AC airPrism generation 2 Basestation
Ubiquiti RP-5AC-GEN2 Rocket 5AC airPrism generation 2 Basestation -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Frequency | 5 GHz |
| Data Throughput | 450+ Mbps |
| Dimensions | 88 x 40 x 230 mm |
| Weight | 400 g |
| Ethernet Port | 1x 10/100/1000 |
Product details
High-performance 5 GHz Point-to-Point (PtP) bridge with integrated dish reflector. Provides up to 450+ Mbps data throughput.
The Rocket 5AC Prism Gen2 features revolutionary airPrism RF filtering technology, proprietary airMAX ac chipset, and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. Deploy the Rocket 5AC Prism Gen2 for PtP or PtMP links in high-noise environments.
Features:
- Custom Ubiquiti® airMAX AC Processor
- Proprietary airPrism® Active RF Filtering Technology
- GPS for Superior Co-Location Performance
- 5 GHz Wide Band Operating Frequency
- Point-to-MultiPoint Links to airMAX ac Clients
- Robust Die Cast Aluminum Casing
- Dedicated Management Radio
| ROCKET PRISM | |
|---|---|
| Dimensions | 88 x 40 x 230 mm (3.47 x 1.58 x 9.06″) |
| Weight | 400 g (14.11 oz) |

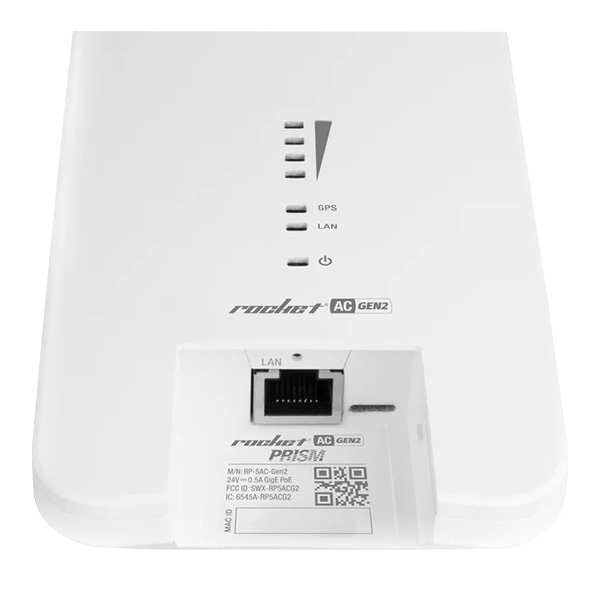

| Networking Interface | (1) 10/100/1000 Ethernet Port |
| LEDs | (4) Signal Strength, GPS, Power, LAN |
| Enclosure Characteristics | Die-Cast Aluminum with White Powder Coating |
| Max. Power Consumption | 9.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Processor | MIPS 74Kc |
| Memory | 128 MB DDR2 SDRAM |
| Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Frequency | 5 GHz |
| Data Throughput | 450+ Mbps |
| Dimensions | 88 x 40 x 230 mm |
| Weight | 400 g |
| Ethernet Port | 1x 10/100/1000 |
| Max Power Consumption | 9.5W |
| Operating Temperature | -40 to 80°C |
| Memory | 128 MB DDR2 SDRAM |
Related products
You recently viewed
Frequently asked questions
How much does the Ubiquiti RP-5AC-GEN2 Rocket 5AC airPrism generation 2 Basestation cost?
This product is quoted per project. Send us your requirements and we will prepare a quotation.
Is this product available in Malaysia?
Yes — available to order. Supplied and installed nationwide by RYZEN ESOLUTIONS (M) SDN. BHD..
Who manufactures the Ubiquiti RP-5AC-GEN2 Rocket 5AC airPrism generation 2 Basestation?
It is manufactured by Ubiquiti. We supply genuine units with manufacturer warranty.
Do you provide installation and support?
Yes — we design, install, configure and support this product as part of a complete solution. Ask us about maintenance packages.
