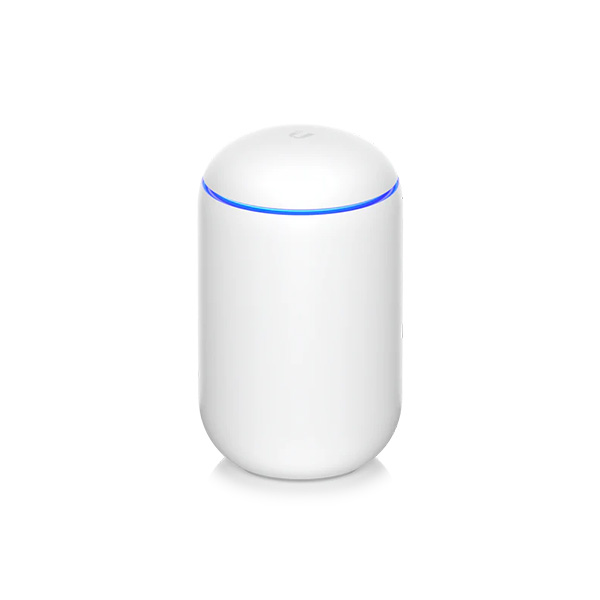

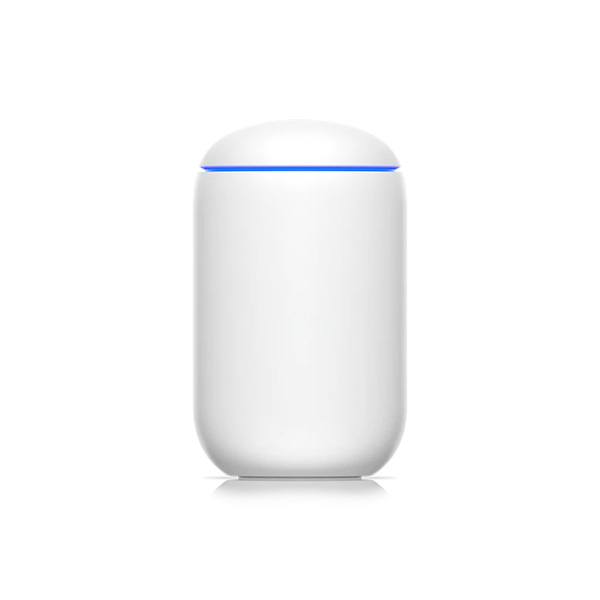

Ubiquiti the Dream Machine (UDM)

Product details

Designed for the UAP Network application, the UDM offers an intuitive platform for home and enterprise users to build and manage small-scale wired or WiFi networks, monitor device activity, and explore the world of UAP.



Features:

• Dual-band Wave 2 access point (802.11ac, 4x4)
• Managed, 4-Port Gigabit switch
• Advanced security gateway with internet threat management and deep packet inspection
• Pre-installed UAP Network application
• Powered by a fast, 1.7 GHz quad-core processor
• Allows you to easily scale your deployment by connecting additional UAP devices
•


  Mechanical
  Dimensions	Ø 110 x 184.2 mm (Ø 4.33 x 7.25")
  Weight	1.05 kg (2.32 lb)

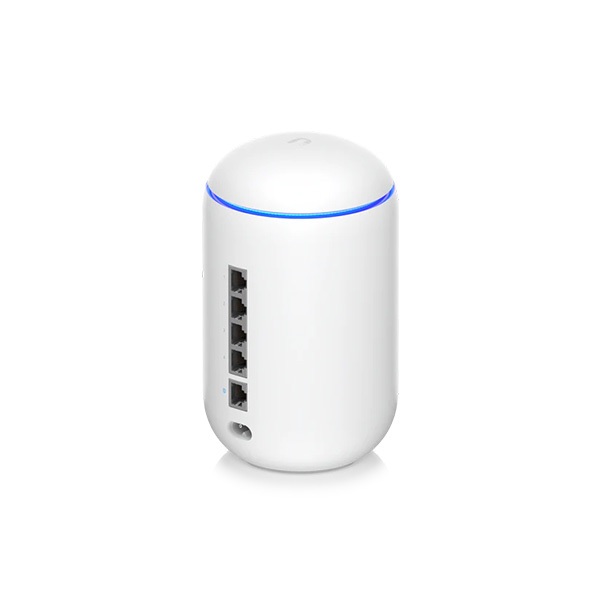

  Networking Interfaces	(4) LAN 10/100/1000 RJ45 Ports (1) WAN 10/100/1000 RJ45 Port
  Buttons	Reset
  IDS/IPS Throughput	850 Mbps
  Processor	Arm Cortex-A57 Quad-Core at 1.7 GHz
  System Memory	2 GB DDR RAM
  On-Board Flash Storage	16 GB
  Maximum Power Consumption	26W
  Supported Voltage Range	100 - 240VAC
  Power Method	AC Power Cord
  Power Supply	Internal AC/DC Power Adapter (24V, 0.6A, 100 - 240VAC)
  Power Save	Supported
  Beamforming	Supported
  TX Power* 2.4 GHz 5 GHz	23 dBm 26 dBm
  Antenna	(1) Dual-Band, Quad-Polarity Antenna
  Antenna Gain 2.4 GHz 5 GHz	3 dBi 4.5 dBi
  Wi-Fi Standards	802.11 a/b/g/n/ac/ac-wave2
  Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
  BSSID	Up to 8 per Radio
  Operating Temperature	-10 to 45° C (14 to 113° F)
  Operating Humidity	5 to 95% Noncondensing
  Certifications	CE, FCC, IC
