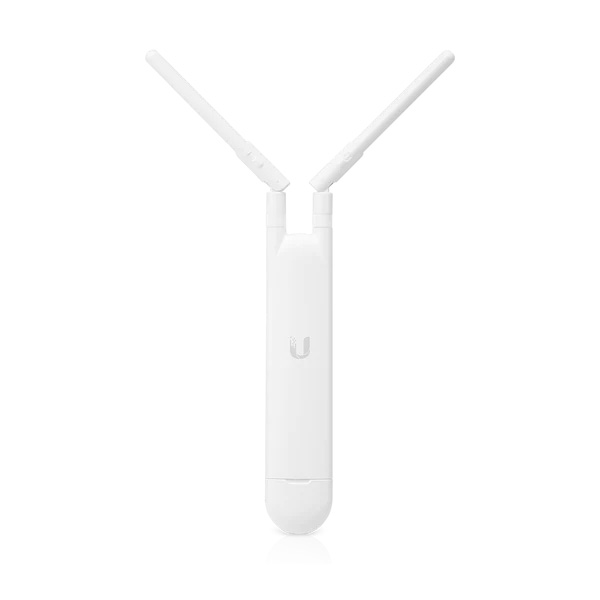

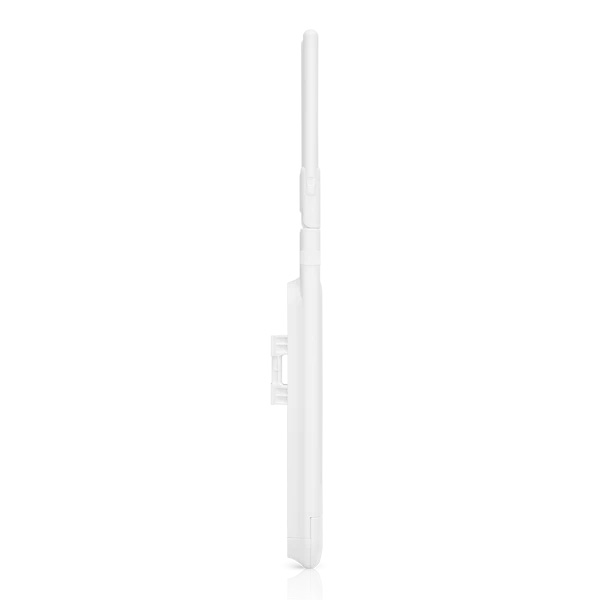

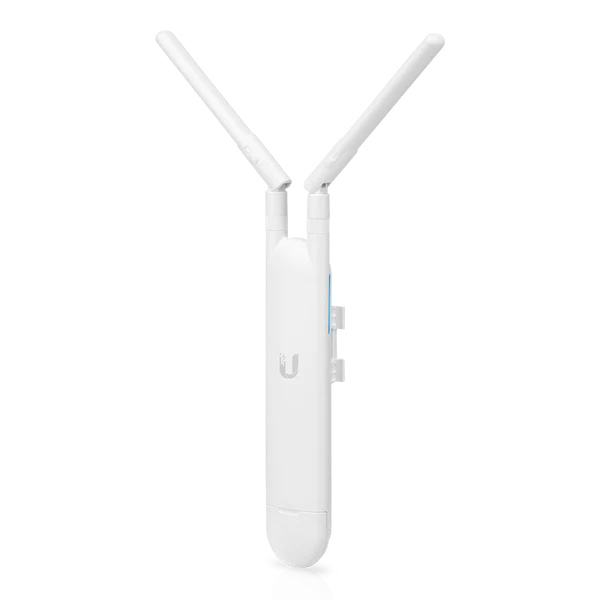

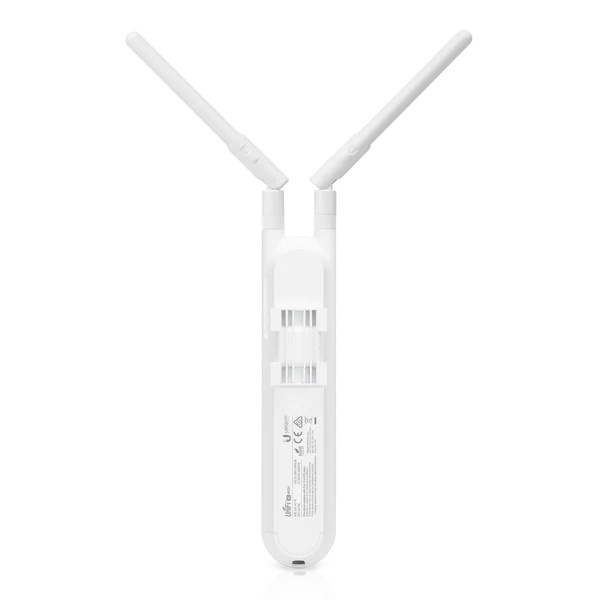

Ubiquiti UAP AC Mesh High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate
Ubiquiti UAP AC Mesh High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| WiFi Standard | 802.11ac Wave 1 |
| Throughput Rate | 1.1+ Gbps aggregate |
| MIMO Configuration | 2x2 |
| 5 GHz Throughput | 867 Mbps |
| 2.4 GHz Throughput | 300 Mbps |
Product details
- 802.11ac Wave 1 WiFi technology
- Dual omnidirectional antennae with 2x2 MIMO functionality
- 5 GHz band with an 867 Mbps throughput rate
- 2.4 GHz band with a 300 Mbps throughput rate
- (2) RP-SMA connectors for customized pattern shaping
- Powered with 802.3af PoE* or 24V passive PoE

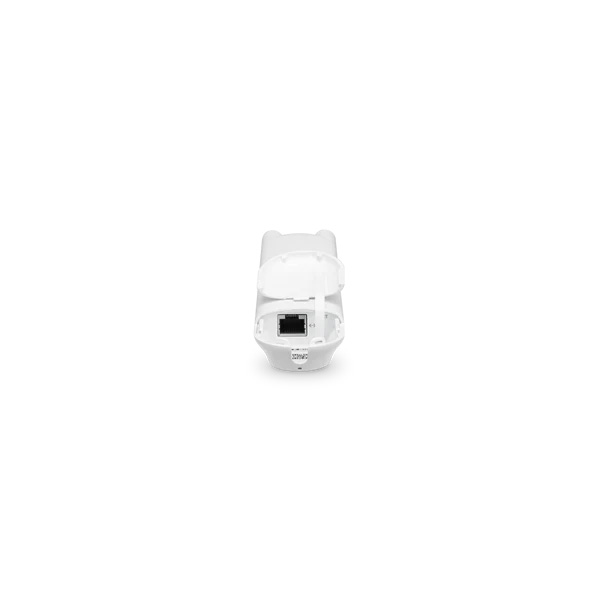

- (1) GbE RJ45 port
The Access Point AC Mesh (UAP AC Mesh) is a high-performance, outdoor-ready, dual-band, 802.11ac WiFi access point than can reach a 1.1+ Gbps aggregate throughput rate with its 5 GHz and 2.4 GHz bands. The UAP AC Mesh features two, omnidirectional WIFi antennas (2x2 MIMO) to provide robust and extensive wireless coverage 360° coverage, as well as (2) RP-SMA connectors that can be used in tandem with the antennae for customized pattern shaping. This access point is powered with either 802.3af PoE or 24V passive PoE and is equipped with (1) GbE RJ45 port for high-speed LAN connectivity. The UAP AC Mesh can be set up in minutes and fully managed with the UAP Network web application or mobile app.
Features:
| Mechanical | |
|---|---|
| Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35") |
| Weight | 152 g (5.36 oz) with Antennas |
| Networking Interface | 2x2 WiFi dual band / Ethernet Gigabit |
| Ports | (1) 10/100/1000 Ethernet |
| Buttons | Reset |
| Antennas | 2 Dualband antennas |
| Wi-Fi Standards | 802.11a/b/g/n/ac |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return);802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)(Supported Voltage Range: 44 to 57VDC) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter* |
| Maximum Power Consumption | 8.5W |
| Max TX Power | 20 dBm |
| BSSID | Up to Four per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |
| Mounting | Wall/Pole/Fast-Mount (Kits Included) |
| Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 100+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| WiFi Standard | 802.11ac Wave 1 |
| Throughput Rate | 1.1+ Gbps aggregate |
| MIMO Configuration | 2x2 |
| 5 GHz Throughput | 867 Mbps |
| 2.4 GHz Throughput | 300 Mbps |
| Ethernet Port | 1x GbE RJ45 |
| Power Consumption | 8.5W |
| Operating Temperature | -30 to 70° C |
