Ubiquiti UAP-IW-HD | Access point | UniFi, MU-MIMO AC WAVE 2, 5x RJ45 1000Mb/s
Buy Ubiquiti UAP-IW-HD | Access point | UniFi, MU-MIMO AC WAVE 2, 5x RJ45 1000Mb/s, Ubiquiti from Printer Bullet - Everything for office. Fast & Free Home Deliv...
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Model | UAP-IW-HD |
| Type | Access Point |
| Standard | 802.11ac WiFi |
| Ports | 5x GbE RJ45 |
| Throughput | 2+ Gbps aggregate |
Product details
- 5 GHz (4x4 MU-MIMO) band with a 1.733 Gbps throughput rate
- 2.4 GHz (2x2 MIMO) band with a 300 Mbps throughput rate
- 200+ concurrent client capacity
- Powered by 802.3af PoE*

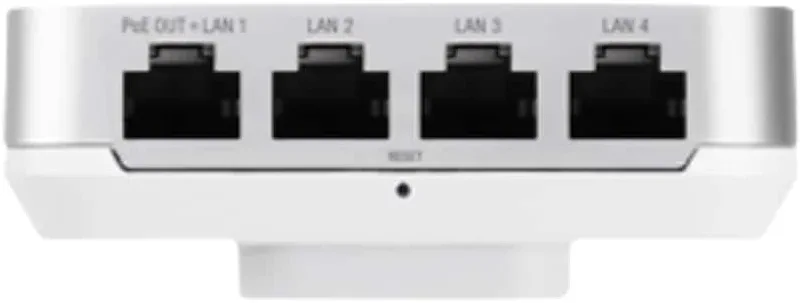

- (5) GbE RJ45 ports, including (1) for configurable PoE passthrough (Port 1)

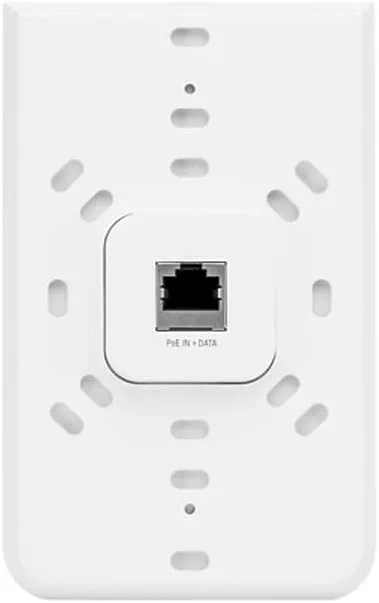

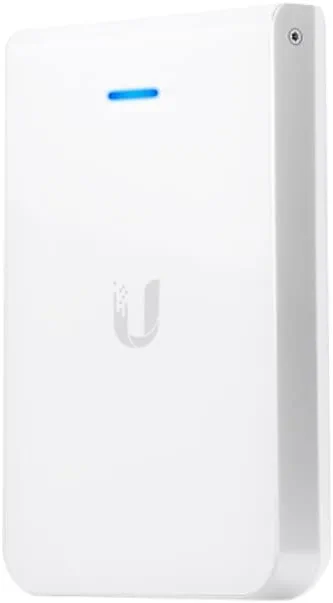

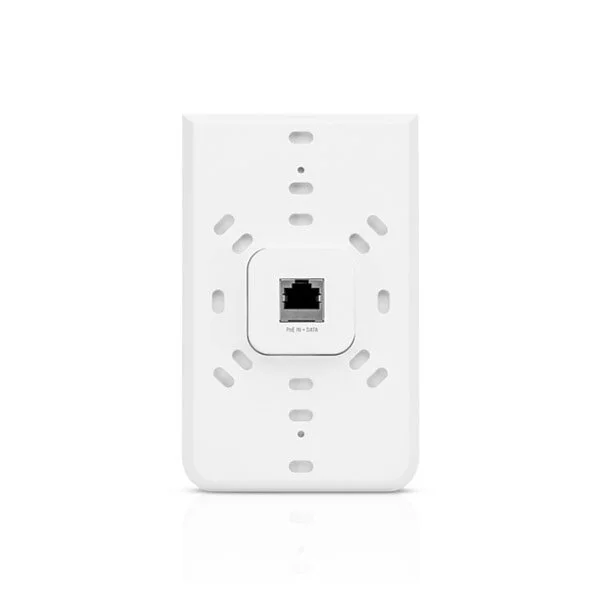

The Access Point In-wall HD (UAP IW HD) is a dual-band, 802.11ac WiFi access point that can be plugged into any non-AC wall outlet. The UAP IW HD can reach a 2+ Gbps aggregate throughput rate with its 5 GHz (4x4 MU-MIMO) and 2.4 GHz (2x2 MIMO) bands, which allows it to support over 200 concurrently connected clients. This access point is powered by 802.3af PoE* and is equipped with (5) GbE RJ45 ports, including one for configurable 48V PoE passthrough. The UAP IW HD is the perfect plug-and-play access point for those looking for an easy-to-use, inconspicuous way to broaden their wireless coverage. It can be set up in minutes and fully managed with the UAP Network web application or mobile app.
Features:
| Mechanical | |
|---|---|
| Dimensions | 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01") |
| Weight | 210 g (7.41 oz) |
| Networking Interface | (5) 10/100/1000 Ethernet Ports |
| Buttons | Reset |
| Power Method | 802.3af PoE 802.3at PoE+ |
| Supported Voltage Range | 44 to 57VDC |
| Power Supply | UAP Switch (PoE) |
| PoE Out | 48V Passthrough (Pins +1, 2; -3, 6) |
| Power Save | Supported |
| Beamforming | Supported |
| Maximum Power Consumption with PoE Passthrough | 11W 23W (* Requires 802.3at PoE+ switch) |
| TX Power 2.4 GHz 5 GHz | 23 dBm 26 dBm |
| Dual-Band Antennas | (2) Single-Port, Single-Polarity Dual-Band Antennas, 2.4 GHz: 1.8 dBi Each, 5 GHz: 3.4 dBi Each |
| Single-Band Antennas | (2) Single-Port, Dual-Polarity, Single-Band Antennas, 5 GHz: 6 dBi Each |
| Wi-Fi Standards | 802.11 a/b/g/n/r/k/v/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| BSSID | Up to 8 per Radio |
| Mounting | 1-Gang Electrical Wall Box (Not Included) |
| Operating Temperature | -10 to 60° C (14 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 200+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Model | UAP-IW-HD |
| Type | Access Point |
| Standard | 802.11ac WiFi |
| Ports | 5x GbE RJ45 |
| Throughput | 2+ Gbps aggregate |
| Concurrent Clients | 200+ |
| Power Method | 802.3af PoE |
