Ubiquiti Wireless Access Point Unifi UAP-AC-LR Long-range, dual-band, 802.11ac Wave 1 access point with a 1.2+ Gbps aggregate throughput rate
Buy Ubiquiti Wireless Access Point Unifi UAP-AC-LR Long-range, dual-band, 802.11ac Wave 1 access point with a 1.2+ Gbps aggregate throughput rate, Ubiquiti from...
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Standard | 802.11ac Wave 1 |
| Throughput | 1.2+ Gbps aggregate |
| Bands | 5 GHz and 2.4 GHz |
| Transmission Range | 183 meters (600 feet) |
| Interface | 1 GbE RJ45 port |
Product details
- 802.3ac Wave 1 WiFi technology
- 5 GHz band with 867 Mbps throughput rate
- 2.4 GHz band with a 450 Mbps throughput rate
- Signal transmission up to 183 meters (600 feet)
- (1) GbE RJ45 port
- Powered by 802.3at PoE* or 24V passive PoE

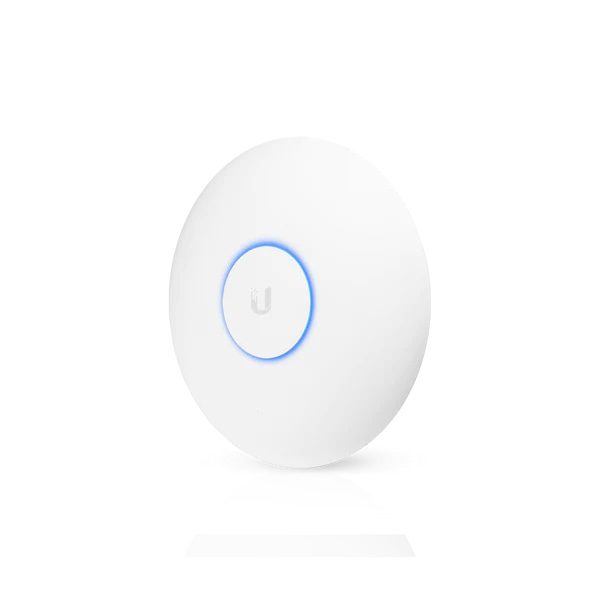

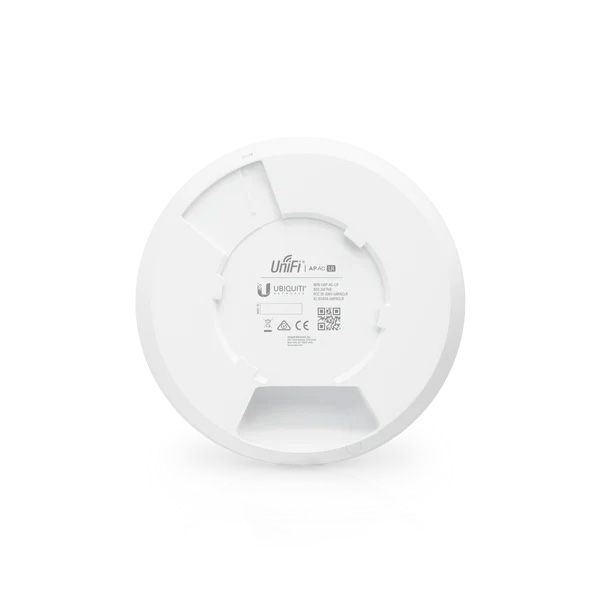

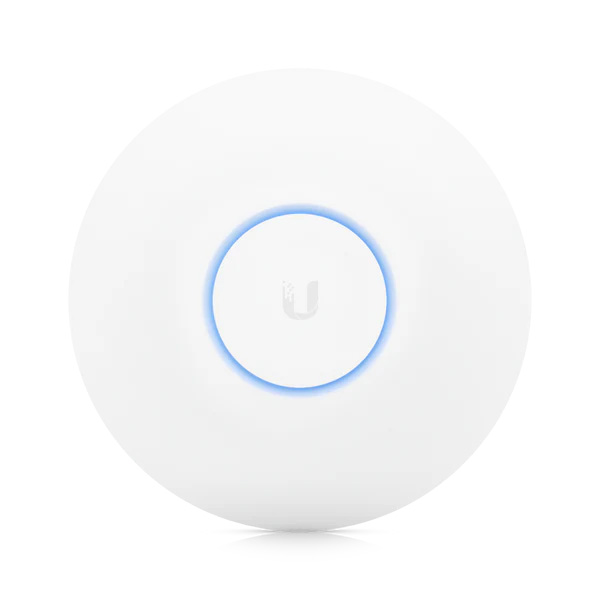

The Access Point AC Long-range (UAP AC LR) is a high-performance, indoor 802.11ac WiFi access point that utilizes Wave 1 technology to reach a 1.2+ Gbps aggregate throughput rate with its 5 and 2.4 GHz bands. The UAP AC LR also has an impressively long transmission range of up to 183 meters (600 feet), allowing you to establish and sustain quality connectivity over greater distances. This access point is powered by either 802.3af PoE or 24 V passive PoE, and is equipped with (1) GbE RJ45 port for high-speed LAN connectivity. The UAP AC LR can be set up in minutes and fully managed with the UAP Network web application or mobile app.
Features:
| Mechanical | |
|---|---|

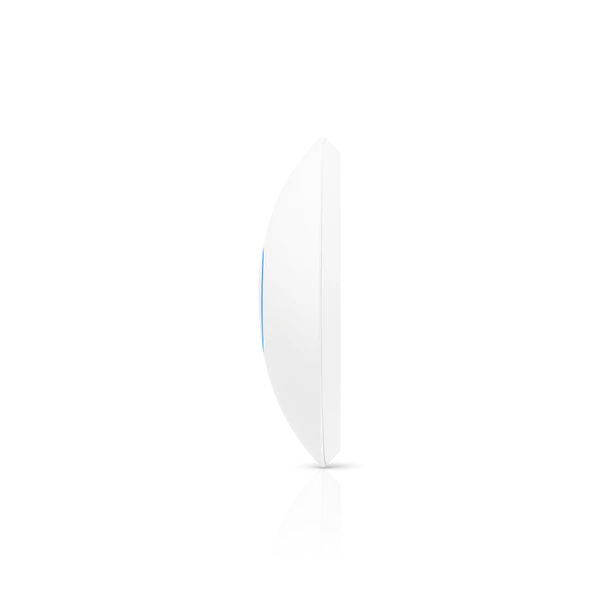

| Dimensions | 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70") |
| Weight | 240 g (8.5 oz), With Mounting Kits 315 g (11.1 oz) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Buttons | Reset |
| Power Method | 802.3af/A PoE 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter |
| Power Save | Supported |
| Maximum Power Consumption | 6.5W |
| Maximum TX Power | 2.4 GHz: 24 dBm 5 GHz: 22 dBm |
| Antennas | (1) Dual-Band Antenna, Tri-Polarity, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/r/k/v/ac |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | Up to 8 per Radio |

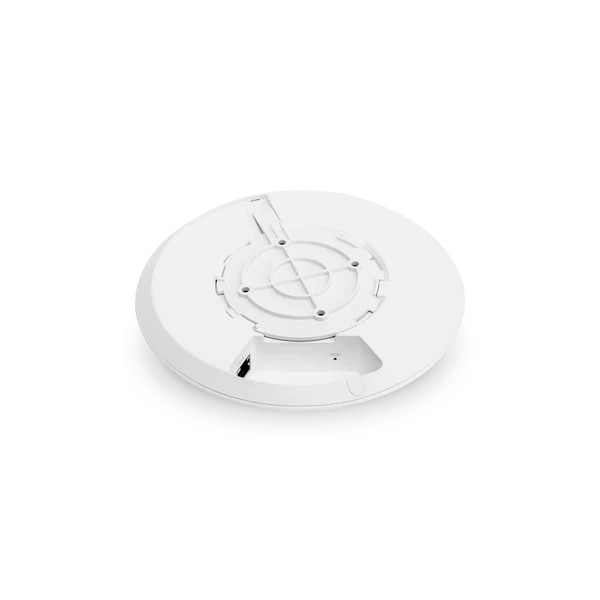

| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 250+ |
| Supported Data Rates (Mbps) | |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Standard | 802.11ac Wave 1 |
| Throughput | 1.2+ Gbps aggregate |
| Bands | 5 GHz and 2.4 GHz |
| Transmission Range | 183 meters (600 feet) |
| Interface | 1 GbE RJ45 port |
| Power Method | 802.3af PoE or 24V passive PoE |
| Maximum Power Consumption | 6.5W |
| Concurrent Clients | 250+ |
You recently viewed
Frequently asked questions
How much does the Ubiquiti Wireless Access Point Unifi UAP-AC-LR Long-range, dual-band, 802.11ac Wave 1 access point with a 1.2+ Gbps aggregate throughput rate cost?
This product is quoted per project. Send us your requirements and we will prepare a quotation.
Is this product available in Malaysia?
Yes — available to order. Supplied and installed nationwide by RYZEN ESOLUTIONS (M) SDN. BHD..
Who manufactures the Ubiquiti Wireless Access Point Unifi UAP-AC-LR Long-range, dual-band, 802.11ac Wave 1 access point with a 1.2+ Gbps aggregate throughput rate?
It is manufactured by Ubiquiti. We supply genuine units with manufacturer warranty.
Do you provide installation and support?
Yes — we design, install, configure and support this product as part of a complete solution. Ask us about maintenance packages.
