Ubiquiti USW‑Flex Layer 2, PoE switch with (5) GbE RJ45 ports, including (4) 802.3at PoE+ ports and (1) 802.3bt PoE++ input
Buy Ubiquiti USW‑Flex Layer 2, PoE switch with (5) GbE RJ45 ports, including (4) 802.3at PoE+ ports and (1) 802.3bt PoE++ input, Ubiquiti from Printer Bullet -...
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Ports | 5 GbE RJ45 ports |
| PoE Output Ports | 4x 802.3at PoE+ |
| PoE Input | 1x 802.3bt PoE++ |
| Max PoE Per Port | 25W |
| Total PoE Power Budget | 46W |
Product details
- (1) GbE, 802.3bt PoE++ RJ45 input
- (4) GbE, 802.3at PoE+ RJ45 ports
- Up to a 46W total PoE supply*
- Weatherproof design

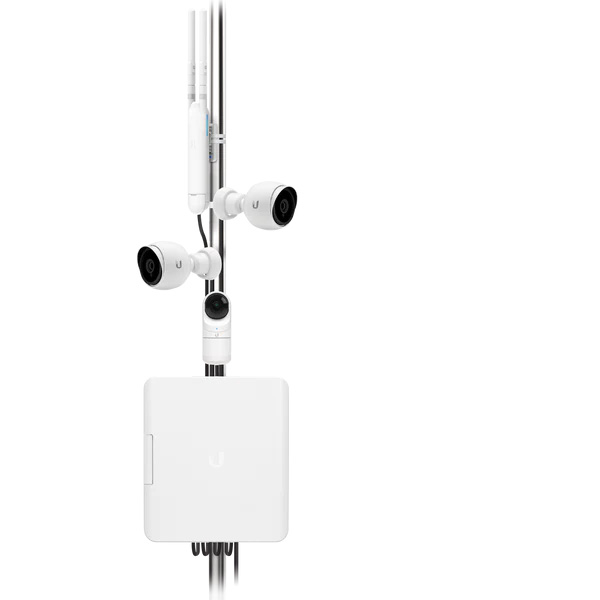

- Multiple mounting options
The Switch Flex (USW Flex) is a fully managed, Layer 2 switch with (5) GbE RJ45 ports, including (4) GbE, 802.3at PoE+ ports and (1) 802.3bt PoE++ input. Each of the USW Flex's PoE ports can provide up to 15 W of power to your UAP access points and PoE devices. When powered by a 802.3bt PoE++ switch [e.g., USW Pro 48 PoE, USW Pro 24 PoE, US XG 6 PoE, and USW Industrial switches (all sold separately)], the USW Flex can yield a 46W total PoE supply. The USW Flex sports weatherproof housing and offers a variety of mounting options. This switch can also be monitored or configured from anywhere with the powerful, intuitive UAP Network web application and mobile app.
Features:
*When powered with a PoE++ switch or a 60W PoE injector (sold separately).
Managed with the UAP Network application: Version 5.10.3 and later
| USW-Flex | |
|---|---|
| Dimensions | 122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10") |
| Weight | 230 g (8.11 oz) |
| Networking Interfaces | (5) 10/100/1000 Mbps RJ45 Ports |
| Management Interface | Ethernet In-Band |
| PoE Out (Ports 2-5) | 802.3at (Pins 1, 2+; 3, 6-) |
| Max Power Consumption (Excluding PoE Output) | 5W |
| Max PoE Wattage Per Port | 25W |
| Total PoE Power Budget Powered by 802.3af Powered by 802.3at Powered by 802.3bt Powered by PoE Adapter (Enabled in Controller) | 8W 20W 46W 46W |
| Voltage Range 802.3af 802.3at/bt | 44 - 57V 50 - 57V |
| LEDs System RJ45 Data Ports | Status PoE; Link/Speed/Activity |
| ESD/EMP Protection | ± 16kV Air, ± 16kV Contact |
| Operating Temperature 46W PoE Output 25W PoE Output | -40 to 55° C (-40 to 131° F) -40 to 65° C (-40 to 149° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Power Method (Port 1) | |
| PoE Type 802.3af/at (Pins 1, 2+; 3, 6-) 802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) 50V/60W PoE Adapter* | Recommended PoE Source USW-24-PoE (sold separately) USW-Pro-24-PoE (sold separately) PoE Injector, POE-50-60W-WH or POE-50-60W (sold separately) |
| USW-Flex-Utility** | |
| Dimensions (with Mount) | 249 x 218 x 60 mm (9.80 x 8.58 x 2.36") |
| Weight (with Mount) | 740 g (26.10 oz) |
| USW-Flex-Utility 60W PoE Adapter | |
| Dimensions | 118.5 x 63 x 34.7 mm (4.66 x 2.48 x 1.36") |
| Weight | 206 g (7.27 oz) |
| Output Voltage | 54V, 1.11A |
| Rated Voltage | 100-240VAC |
| Input Current | 1.5A (Max.) |
| Efficiency | > 86% |
| Output Ripple | 200mVpp |
| Line Regulation | < 1% |
| Load Regulation | < 3% |
| 4-Pair Powering | Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8- |
| Operating Temperature | -20 to 60 ̊ C (-4 to 140 ̊ F) |
| Storage Temperature | -30 to 70 ̊ C (-22 to 158 ̊ F) |
| Operating Humidity | 5 to 90%, Noncondensing |
| Surge Immunity | 4kV Difference and Common Mode |
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Ports | 5 GbE RJ45 ports |
| PoE Output Ports | 4x 802.3at PoE+ |
| PoE Input | 1x 802.3bt PoE++ |
| Max PoE Per Port | 25W |
| Total PoE Power Budget | 46W |
| Operating Temperature | -40 to 55°C (46W PoE); -40 to 65°C (25W PoE) |
| Dimensions | 122.5 x 107.1 x 28.0 mm |
| Weight | 230 g |
