Ubiquiti USW-Pro-24-POE Layer 3, PoE switch with (24) GbE RJ45 ports, including (16) 802.3at PoE+ ports and (8) 802.3bt PoE++ ports, and (2) 10G SFP+ ports
Ubiquiti USW-Pro-24-POE Layer 3, PoE switch with (24) GbE RJ45 ports, including (16) 802.3at PoE+ ports and (8) 802.3bt PoE++ ports, and (2) 10G SFP+ ports -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Model | USW-Pro-24-POE |
| Layer | Layer 3 |
| GbE RJ45 Ports | 24 |
| PoE+ Ports | 16 |
| PoE++ Ports | 8 |
Product details
- (1) 1.3" LCM color touchscreen with AR switch management
- (16) GbE, 802.3at PoE+ RJ45 ports
- (8) GbE, 802.3bt PoE++ RJ45 ports
- (2) 10G SFP+ ports
- (1) USP RPS DC input
- 400W total PoE supply
- Near-silent cooling
- Layer 3 switching features

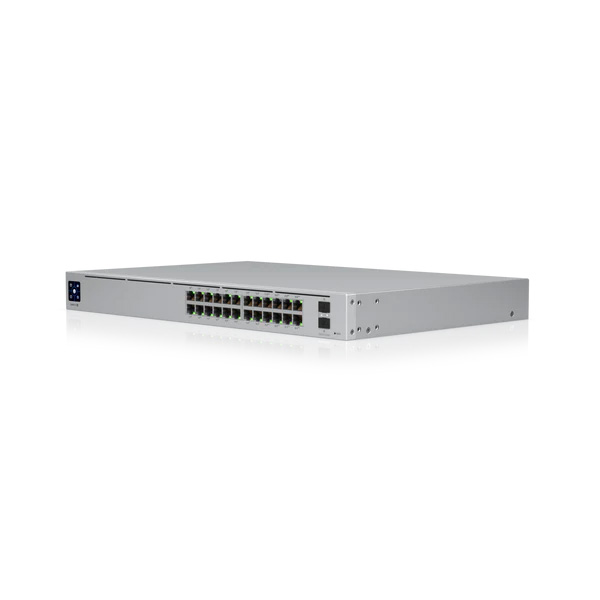

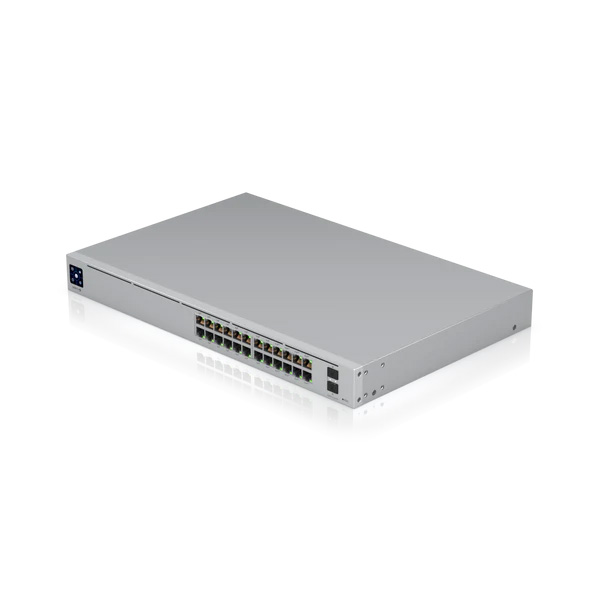

The Switch Pro 24 PoE (USW Pro 24 PoE) is a fully managed switch with (16) GbE, 802.3at PoE+ RJ45 ports, (8) GbE, 802.3bt PoE++ RJ45 ports, and (2) 10G SFP+ ports. The USW Pro 24 PoE combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The USW Pro 24 PoE is the ideal access layer switch for any UAP system. It combines up to 400W of PoE power with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UAP Network web application and mobile app.
Features:
Managed with the UAP Network application: Version 5.10.5 and later
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72") |
| Weight With Rackmount Brackets | 4.30 kg (9.48 lb) 4.39 kg (9.68 lb) |
| Interfaces Networking Management | (24) 10/100/1000 RJ45 Ports (2) 1/10G SFP+ Ethernet Ports Ethernet In-Band |
| Total Non-Blocking Throughput | 44 Gbps |
| Switching Capacity | 88 Gbps |
| Forwarding Rate | 65.472 Mpps |
| Power Method Universal Input USP RPS DC Input | 100-240VAC/50-60 Hz 52VDC, 7.69A; 11.5VDC, 2.61A |
| Power Supply | AC/DC, Internal, 450W |
| Supported Voltage Range | 100 to 240VAC |
| Max. Power Consumption (Excluding PoE Output) | 50W |
| LEDs System RJ45 Data Ports SFP+ Data Ports | Status PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| Total Available PoE | 400W |
| PoE Interfaces Ports 1-16 Ports 17-24 | POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-) 60W PoE++ IEEE 802.3af/at/bt (Pins 1, 2+; 3, 6-) (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
| Max. PoE Wattage per Port by PSE 802.3at 802.3bt | 32W 64W |
| Voltage Range 802.3af Mode | 44-57V |
| Voltage Range 802.3at Mode | 50-57V |
*Background noise level: 27.5 dBa
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Model | USW-Pro-24-POE |
| Layer | Layer 3 |
| GbE RJ45 Ports | 24 |
| PoE+ Ports | 16 |
| PoE++ Ports | 8 |
| 10G SFP+ Ports | 2 |
| Total PoE Supply | 400W |
| Switching Capacity | 88 Gbps |
