Ubiquiti USW-Lite-8-PoE Switch Lite with 8-Port POE 802.3at PoE+ 8 Port UBNT Network USW
Ubiquiti USW-Lite-8-PoE Switch Lite with 8-Port POE 802.3at PoE+ 8 Port UBNT Network USW -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Ports | 8 GbE RJ45 ports (4 PoE+) |
| PoE Supply | 52W total |
| Line Rate | 8 Gbps |
| Power Consumption | 8W |
| Power Adapter | External 54V/60W |
Product details

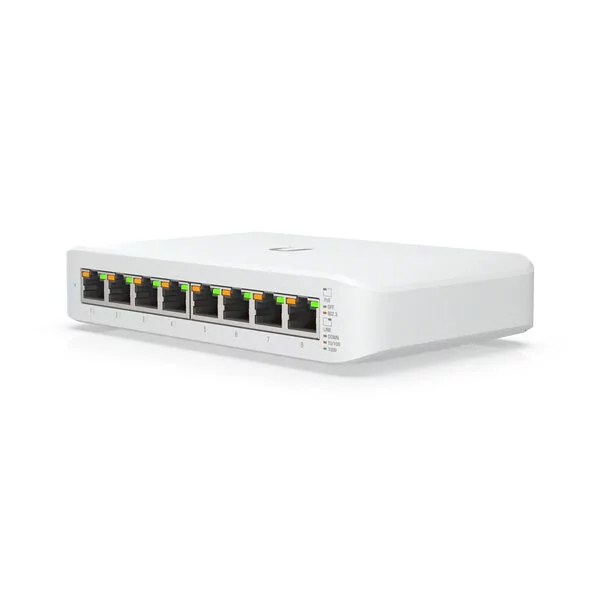

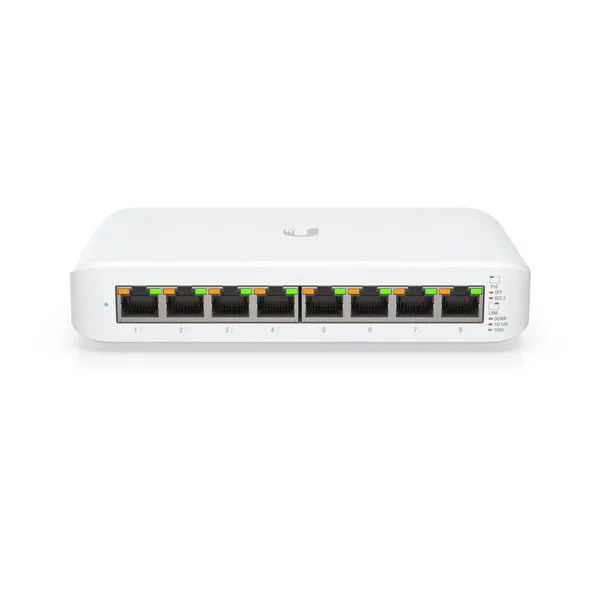

The Switch Lite 8 PoE (USW Lite 8 PoE) is a fully managed switch with (8) GbE RJ45 ports, including (4) 802.3at PoE+ ports, and a 52W total PoE supply for your UAP access points and other PoE devices. The USW Lite 8 PoE also offers an extensive suite of Layer 2 switching protocols, and can be monitored or configured from anywhere with the powerful, intuitive UAP Network web application and mobile app.
Features:
- (4) GbE, 802.3at PoE+ ports
- (4) GbE RJ45 ports
- 52W total PoE supply
- Fanless, silent cooling
- External, 60W power adapter

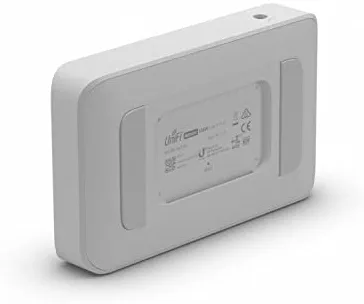

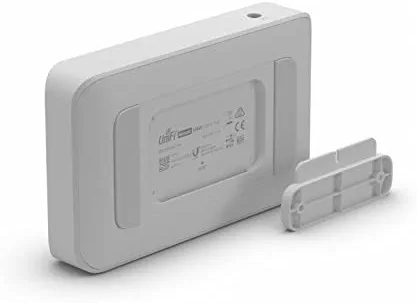

- Wall-mountable (kit included)
| Mechanical | |
|---|---|
| Dimensions | 99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25") |
| Weight | 450 g (15.87 oz) |
| Hardware | |
| Total Non-Blocking Line Rate | 8 Gbps |
| Max. Power Consumption | 8W |
| Power Method | 54VDC, 1.1A Power Adapter |
| Power Supply | External 54V/60W Power Adapter |
| Supported Voltage Range | DC 50V to 57V |
| Networking Interfaces | (8) 10/100/1000 Mbps Ethernet RJ45 Ports |
| PoE Interfaces | (4) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Mangement Interface | Ethernet In-Band |
| Max. PoE+ Wattage per Port by PSE | 30W |
| Modes | SMB Layer 2 PoE Gigabit Ethernet Switch |
| Operating Temperature | -15 to 40° C (5 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) Power, Blue/White Flashing White: Bootup in Progress Flashing Blue: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | Green: 1G, Amber: 10/100 Mbps |
| PoE | Amber: IEEE 802.3af/at |
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Ports | 8 GbE RJ45 ports (4 PoE+) |
| PoE Supply | 52W total |
| Line Rate | 8 Gbps |
| Power Consumption | 8W |
| Power Adapter | External 54V/60W |
| Dimensions | 99.6 x 163.7 x 31.7 mm |
| Weight | 450 g |
| Operating Temperature | -15 to 40°C |
