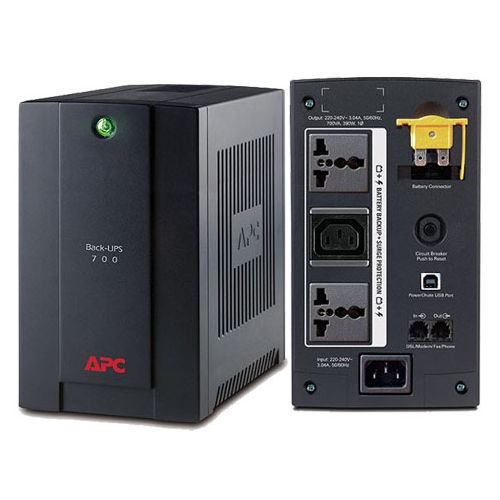

APC BX700U-MS UPS (700VA, 230V, AVR) image
APC · UPS

APC BX700U-MS UPS (700VA, 230V, AVR)

APC Back-UPS BX700U-MS 700VA line-interactive UPS with AVR, ideal for home offices and small businesses in Malaysia.

  • 700VA/390W power capacity for essential equipment
  • Automatic Voltage Regulation stabilises fluctuating mains power
  • Battery backup keeps devices running during outages
  • USB charging port for convenient device charging
  • Designed for 230V Malaysian power environments
MYR 629.00 — buy online, or request a project quotation
✓ Available to order · supplied & installed in Malaysia
Request Quotation WhatsApp Ask a question
  • Genuine unit through the authorised channel — manufacturer warranty
  • Itemised quotation within 1 working day, B2B invoicing
  • Delivery nationwide — installation available for enterprise gear
Key specifications
Type UPS
Capacity 700 VA
Real power 390 W
Topology Line-interactive
Form Tower
Full specifications ↓

Product details

APC BX700U-MS UPS

700VA | 230V | AVR

Warranty
- 2 year Manufacturer Limited Warranty (APC Service Center)



  SPECIFICATIONS

Specifications
Model BX700U-MS
Output Output power capacity:
390 Watts / 700 VA

Max Configurable Power (Watts):
390 Watts / 700 VA

Nominal Output Voltage:
230V

Output Frequency (sync to mains):
50/60 Hz +/-1 Hz

Output Frequency (not synced):
50/60 Hz +/-1 Hz

Topology:
Line Interactive

Waveform type:
Stepped approximation to a sinewave

Output Connections:
(1) IEC 320 C13 (Battery Backup)

Transfer Time:
4ms typical : 6ms maximum
Input Nominal Input Voltage:
230V

Input frequency:
50/60 Hz +/- 3 Hz (auto sensing)

Input Connections:
IEC-320 C14, NEMA 5-15P

Cord Length:
1.22 meters

Input voltage range for main operations:
140 - 300 V

Number of Power Cords:
2

Type of Input Protection Required:
3-pole breaker
Batteries & Runtime Battery type:
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time:
6 hour(s)

Replacement Battery:
APCRBC110

Battery Volt-Amp-Hour Capacity:
81
Communications & Management Interface Port(s):
USB

Control panel:
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators

Audible Alarm:
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering Surge energy rating:
273 Joules

Data Line Protection:
RJ-11 Modem/Fax protection
Physical Maximum Height:
200 mm , 20.0 CM

Maximum Width:
115 mm , 11.5 CM

Maximum Depth:
256 mm , 25.6 CM

Net Weight:
6.0 KG

Shipping weight:
6.8 KG

Shipping Height:
275 mm , 27.5 CM

Shipping Width:
295 mm , 29.5 CM

Shipping Depth:
340 mm , 34.0 CM

Master Carton Units:
2.0

Master Carton Weight:
13.7
Environmental Operating Environment:
0 - 40 °C

Operating Relative Humidity:
0 - 95 %

Operating Elevation:
0-3000 meters

Storage Temperature:
-15 - 40 °C

Storage Relative Humidity:
0 - 95 %

Storage Elevation:
0-9000 meters

Audible noise at 1 meter from surface of unit:
45.0 dBA
Conformance Standard warranty:
2 years repair or replace
Sustainable Offer Status RoHS: Compliant

REACH: Contains No SVHCs
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*
Supplied & supported by PrinterBullet

Engineering by our services division, Ryzen ESolutionsPower protection & high availability →

Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

012-282 2340 WhatsApp Request Quotation

Specifications

Storage Media Specs
TypeUPS
UPS Specs
Capacity700 VA
Real power390 W
TopologyLine-interactive
FormTower
Network card slotNo
Battery replaceableYes
General
BrandAPC
ModelBX700U-MS
UPS TypeLine-Interactive
Automatic Voltage Regulation (AVR)Yes
RegionMalaysia (MS Series)
Power
Output Power Capacity (VA)700 VA
Output Power Capacity (Watts)390 W
Input Voltage230 V
Input Frequency50 Hz
Connectivity
USB Charging PortYes
