MikroTik CRS354-48P-4S+2Q+RM | Switch | 48x RJ45 1000Mb/s, 4x SFP+, 2x QSFP
Buy MikroTik CRS354-48P-4S+2Q+RM | Switch | 48x RJ45 1000Mb/s, 4x SFP+, 2x QSFP, Mikrotik from Printer Bullet - Everything for office. Fast & Free Home Delivery...
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Ethernet Ports | 48x RJ45 1000Mb/s |
| SFP+ Ports | 4x 10G SFP+ |
| QSFP+ Ports | 2x 40G QSFP+ |
| Throughput | 168 Gbps |
| Switching Capacity | 336 Gbps |
Product details

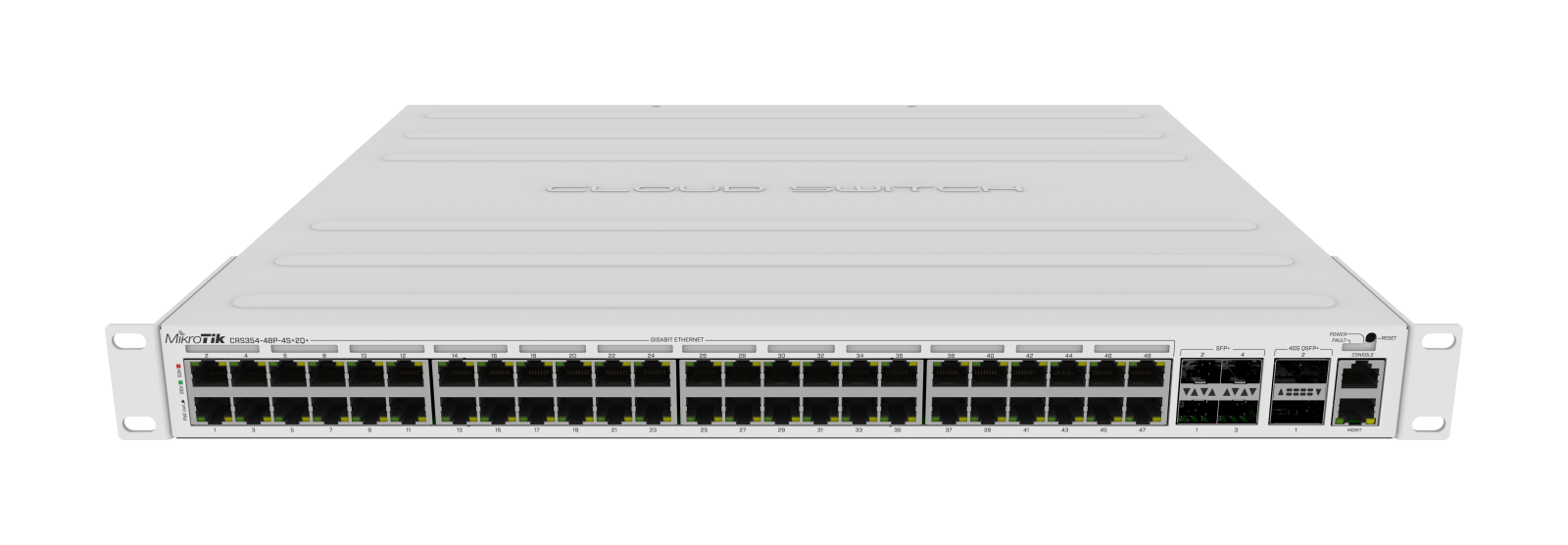

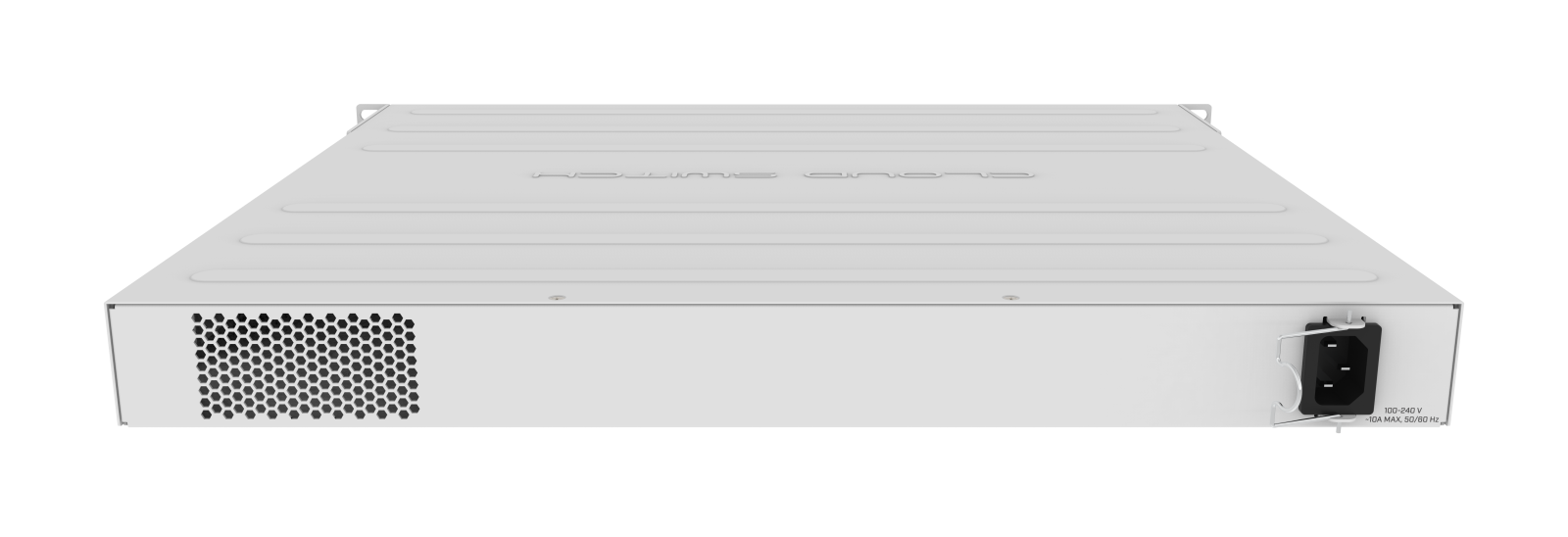

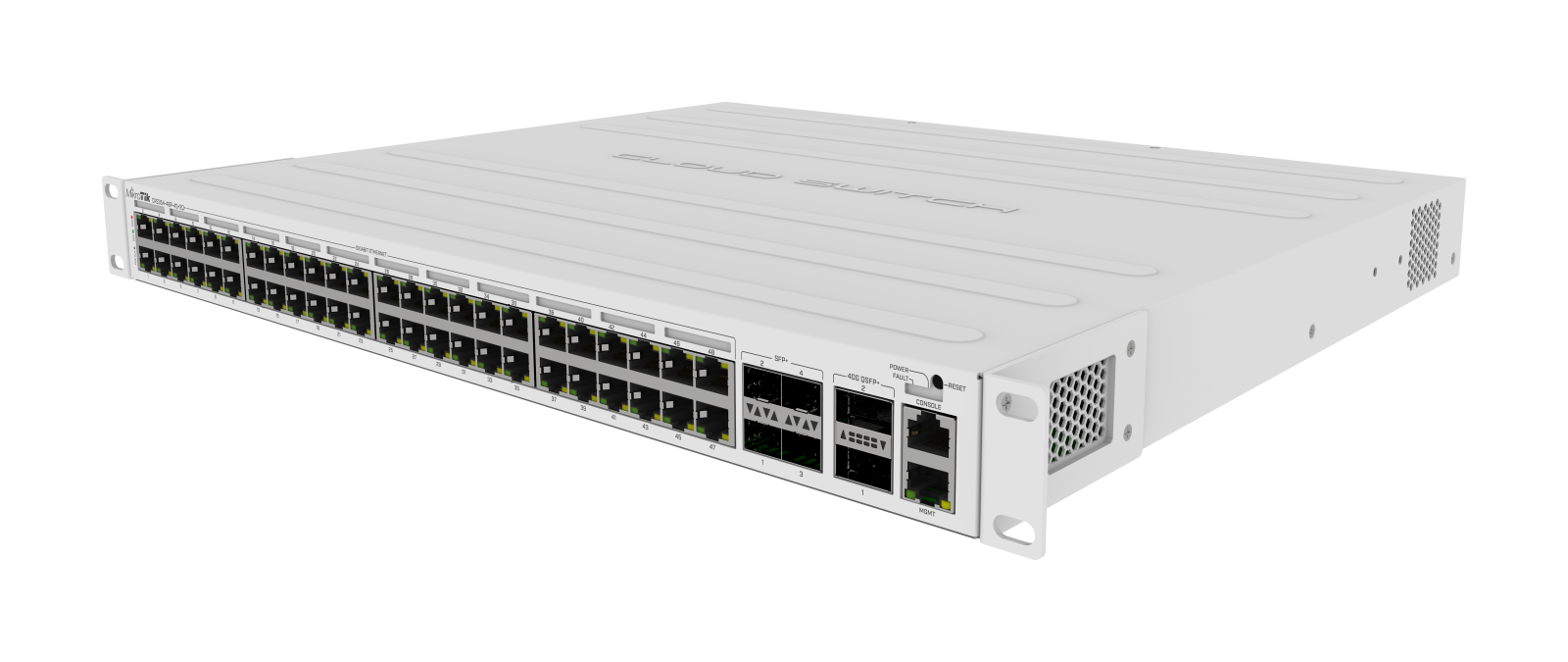

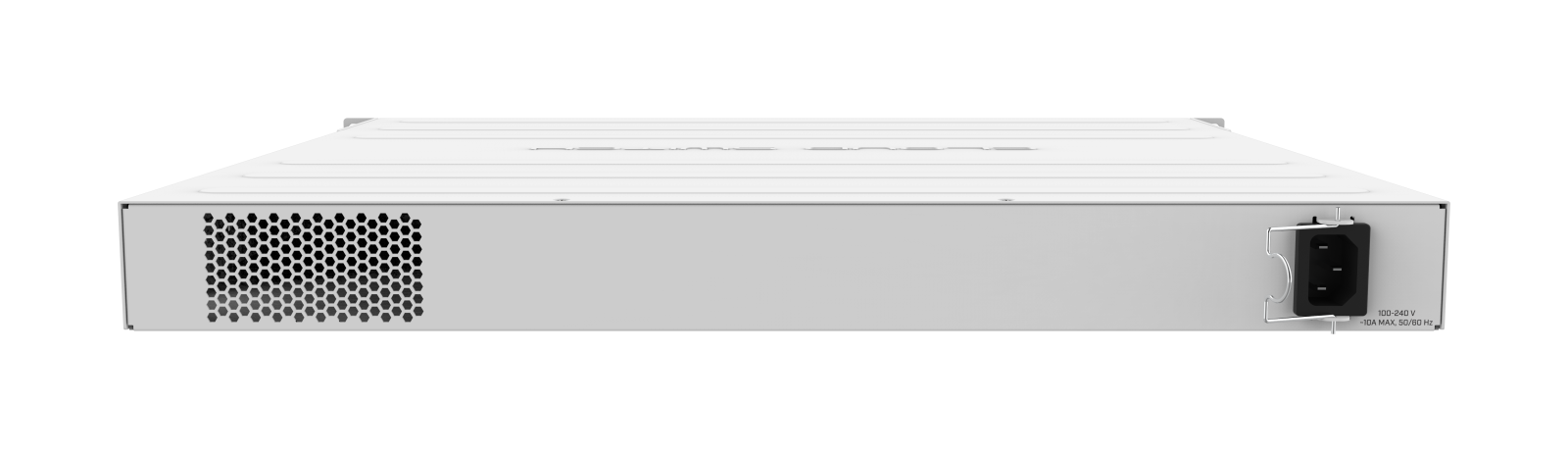

If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.
This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management.
CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will make the perfect addition to a professional setup.
The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
SPECIFICATIONS
| Details | |
|---|---|
| Product code | CRS354-48P-4S+2Q+RM |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 443 x 382 x 44 mm |
| RouterOS license | 5 |
| Operating System | SwOS / RouterOS (Dual boot) |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| Suggested price | $899.00 |
POWERING
| Details | |
|---|---|
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Max power consumption | 800 W |
| Max power consumption without attachments | 85 W |
| Cooling type | 4 fans |
POE-OUT
| Details | |
|---|---|
| PoE-out ports | Ether1-Ether48 |
| PoE out | 802.3af/at |
| Max out per port output (input 18-30 V) | 1000 mA |
| Max out per port output (input 30-57 V) | 570 mA |
| Total output current | 27A at 26V OR 13.2A at 53V |
| Total output power | 700W |
ETHERNET
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
| 10/100/1000 Ethernet ports | 48 |
FIBER
| Details | |
|---|---|
| SFP+ ports | 4 |
| Number of 40G QSFP+ ports | 2 |
PERIPHERALS
| Details | |
|---|---|
| Serial console port | RJ45 |
OTHER
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
CERTIFICATION & APPROVALS
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Ethernet Ports | 48x RJ45 1000Mb/s |
| SFP+ Ports | 4x 10G SFP+ |
| QSFP+ Ports | 2x 40G QSFP+ |
| Throughput | 168 Gbps |
| Switching Capacity | 336 Gbps |
| Power Supply | 750 W |
| CPU frequency | 650 MHz |
| RAM | 64 MB |
