MikroTik CRS354-48G-4S+2Q+RM | Switch | 48x RJ45 1000Mb/s
Buy MikroTik CRS354-48G-4S+2Q+RM | Switch | 48x RJ45 1000Mb/s, Mikrotik from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quality Ser...
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Ethernet Ports | 48x 1000Mb/s RJ45 |
| SFP+ Ports | 4x 10G |
| QSFP+ Ports | 2x 40G |
| Throughput | 168 Gbps |
| Switching Capacity | 336 Gbps |
Product details
If you are looking for a single switch that will put your network setup ahead of the curve without costing a fortune, look no further. The new CRS354-48G-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in demanding and busy environments. With this product we aim to set a new price-performance bar – get more features while spending way less! <

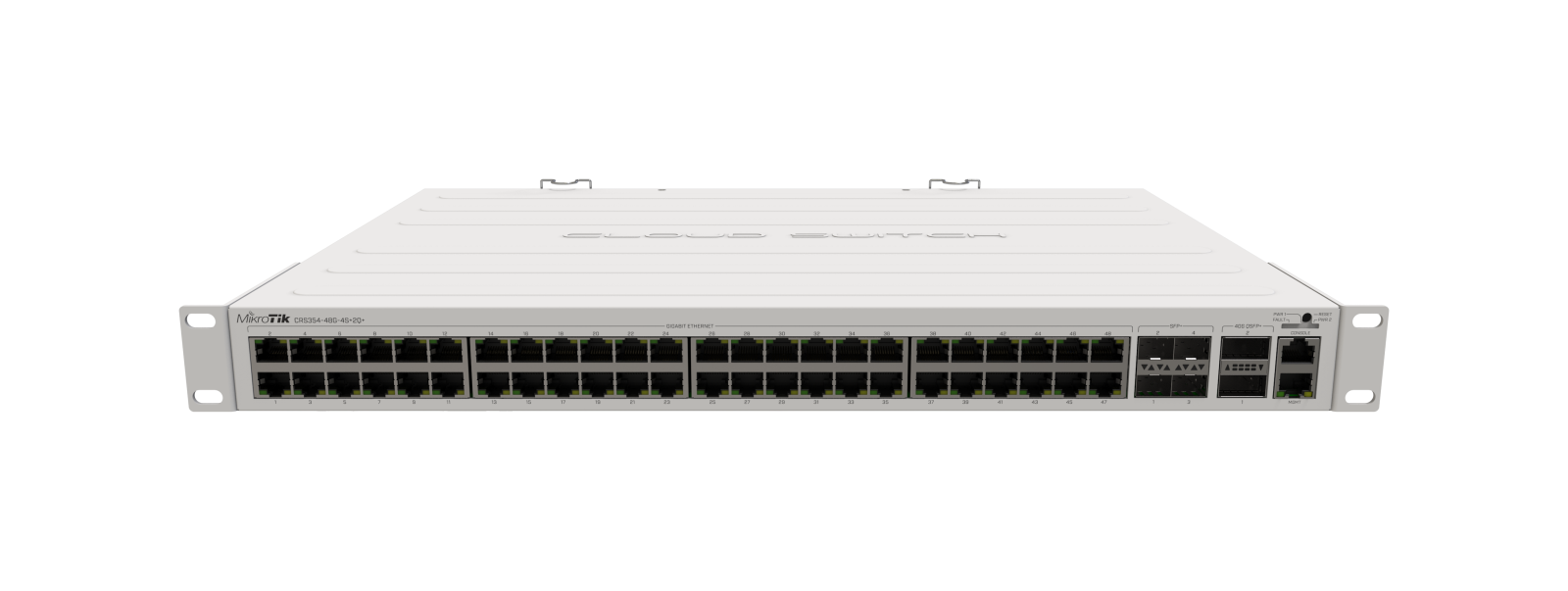

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mbps.
SPECIFICATIONS
| Details | |
|---|---|
| Product code | CRS354-48G-4S+2Q+RM |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 297 x 443 x 44 mm |
| RouterOS license | 5 |
| Operating System | SwOS / RouterOS (Dual boot) |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
POWERING
| Details | |
|---|---|

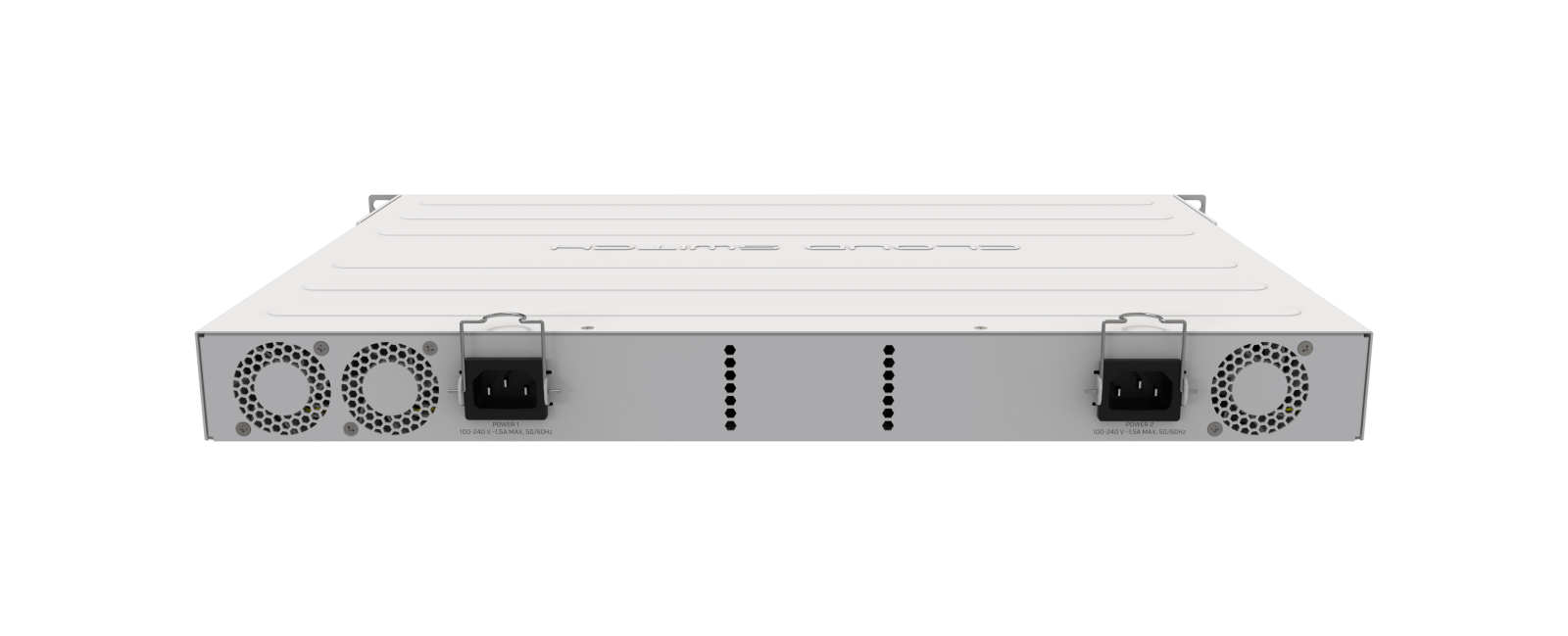

| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 60 W |
| Max power consumption without attachments | 50 W |
| Cooling type | 3 fans |
ETHERNET
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
| 10/100/1000 Ethernet ports | 48 |
FIBER
| Details | |
|---|---|
| SFP+ ports | 4 |
| Number of 40G QSFP+ ports | 2 |
PERIPHERALS
| Details | |
|---|---|
| Serial console port | RJ45 |
OTHER
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
CERTIFICATION & APPROVALS
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Ethernet Ports | 48x 1000Mb/s RJ45 |
| SFP+ Ports | 4x 10G |
| QSFP+ Ports | 2x 40G |
| Throughput | 168 Gbps |
| Switching Capacity | 336 Gbps |
| CPU | QCA9531 |
| RAM | 64 MB |
| Power Consumption | 60 W |
