MikroTik CRS328-24P-4S+RM | Switch | 24x RJ45 1000Mb/s, 4x SFP+
Buy MikroTik CRS328-24P-4S+RM | Switch | 24x RJ45 1000Mb/s, 4x SFP+, Mikrotik from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quali...
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Ports | 24x RJ45 1000Mb/s, 4x SFP+ |
| Speed | 1 Gbps (Ethernet), 10 Gbps (SFP+) |
| Architecture | ARM 32bit |
| RAM | 512 MB |
| Storage | 16 MB FLASH |
Product details

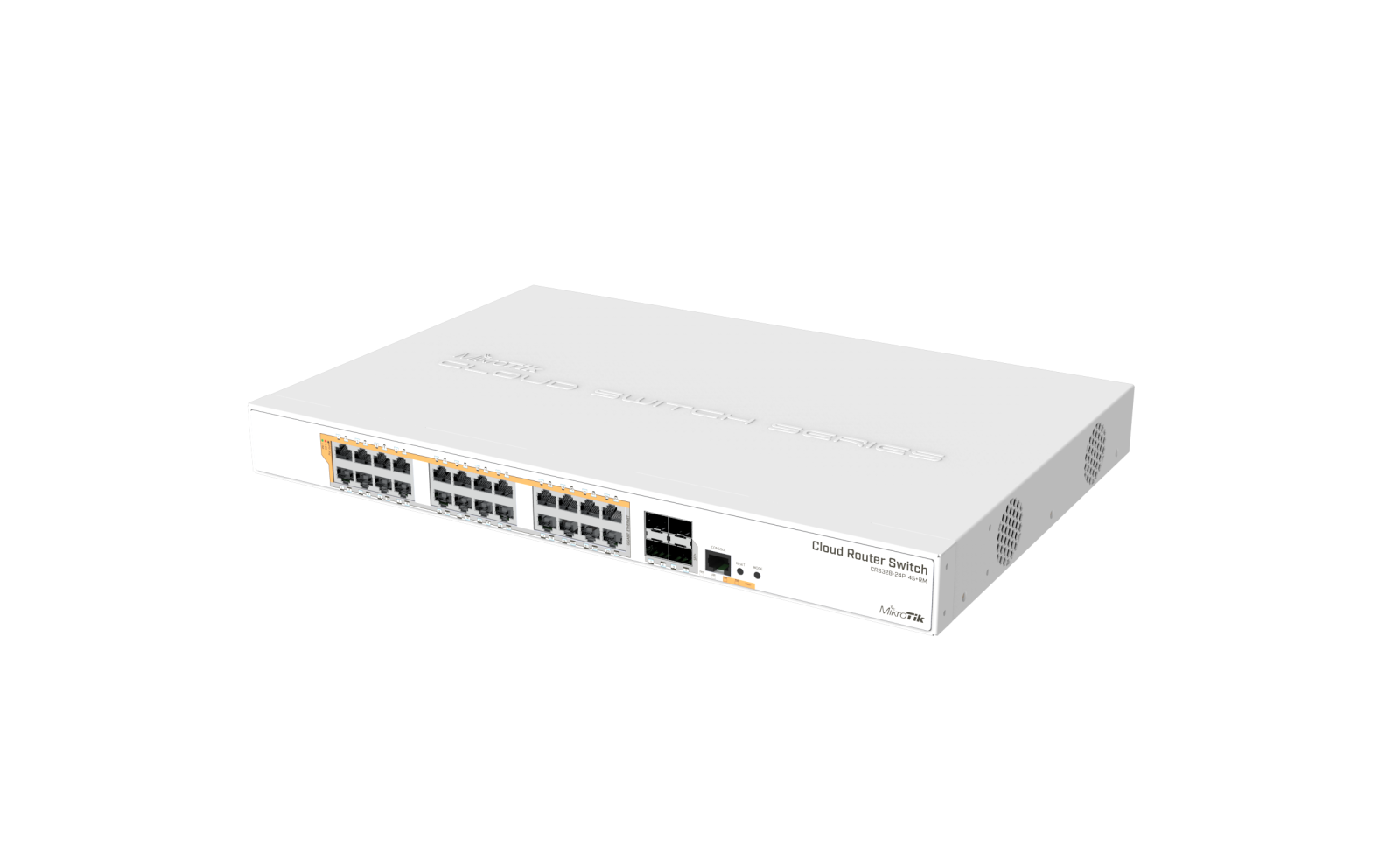

CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).
CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.
SPECIFICATIONS
| Details | |
|---|---|
| Product code | CRS328-24P-4S+RM |
| Architecture | ARM 32bit |
| CPU | 98DX3236 |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Dimensions | 443 x 300 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 512 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| Suggested price | $445.00 |
POWERING
| Details | |
|---|---|
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Max power consumption | 494 W |
| Max power consumption without attachments | 44 W |
| Cooling type | 2 |
POE-OUT
| Details | |
|---|---|
| PoE-out ports | Ether1-Ether24 |
| PoE out | 802.3af/at |
| Max out per port output (input 18-30 V) | 1000 mA |
| Max out per port output (input 30-57 V) | 450 mA |
| Max total out (A) | 20 A |
ETHERNET
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 24 |
FIBER
| Details | |
|---|---|
| SFP+ ports | 4 |
PERIPHERALS
| Details | |
|---|---|
| Serial console port | RJ45 |
OTHER
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Mode button | Yes |
CERTIFICATION & APPROVALS
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP00 |
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Ports | 24x RJ45 1000Mb/s, 4x SFP+ |
| Speed | 1 Gbps (Ethernet), 10 Gbps (SFP+) |
| Architecture | ARM 32bit |
| RAM | 512 MB |
| Storage | 16 MB FLASH |
| Power Supply | 100-240 V AC 500 W |
| Dimensions | 443 x 300 x 44 mm |
| Operating system | RouterOS / SwitchOS |
