MikroTik CRS328-4C-20S-4S+RM | Switch | 24x SFP, 4x SFP+, 4x RJ45 1000Mb/s
MikroTik CRS328-4C-20S-4S+RM | Switch | 24x SFP, 4x SFP+, 4x RJ45 1000Mb/s -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Product Code | CRS328-4C-20S-4S+RM |
| Architecture | ARM 32bit |
| CPU nominal frequency | 800 MHz |
| RAM | 512 MB |
| SFP Ports | 20 |
Product details
The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.

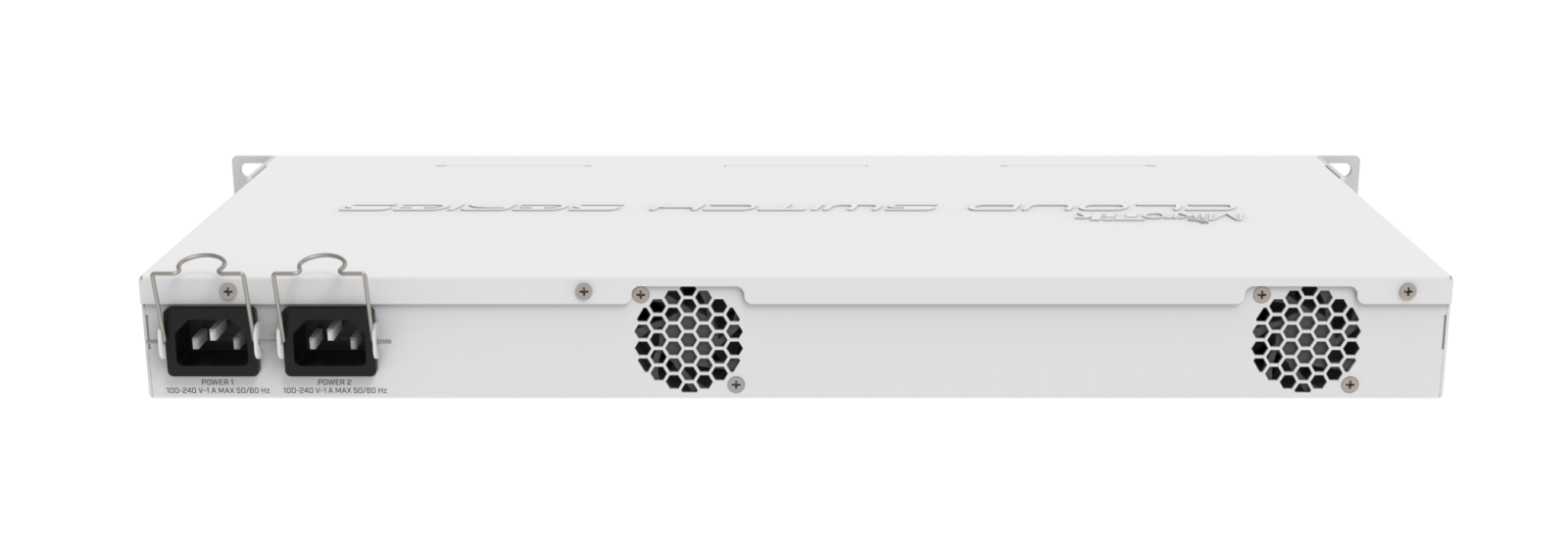

The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.
SPECIFICATIONS
| Details | |
|---|---|
| Product code | CRS328-4C-20S-4S+RM |
| Architecture | ARM 32bit |
| CPU | 98DX3236 |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Dimensions | 443 x 194 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 512 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
POWERING
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 43 W |
| Cooling type | 2 |
ETHERNET
| Details | |
|---|---|
| Ethernet Combo ports | 4 |
FIBER
| Details | |
|---|---|
| SFP ports | 20 |
| SFP+ ports | 4 |
PERIPHERALS
| Details | |
|---|---|
| Serial console port | RJ45 |
OTHER
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
CERTIFICATION & APPROVALS
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Product Code | CRS328-4C-20S-4S+RM |
| Architecture | ARM 32bit |
| CPU nominal frequency | 800 MHz |
| RAM | 512 MB |
| SFP Ports | 20 |
| SFP+ Ports | 4 |
| Ethernet Combo ports | 4 |
| Max Power Consumption | 43 W |
