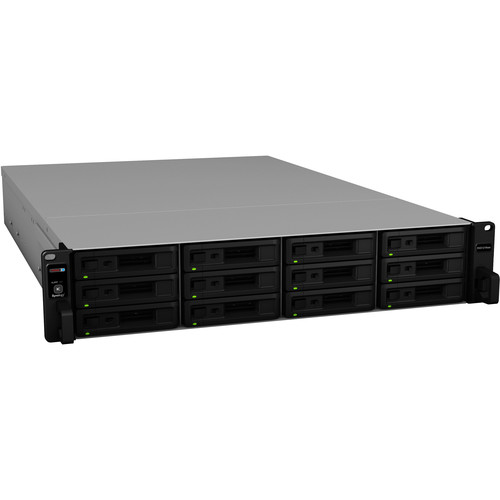

Synology RXD1219sas 12-Bay Storage Expansion Unit
Buy Synology RXD1219sas 12-Bay Storage Expansion Unit, Synology from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quality Service
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Form factor | Rackmount |
Product details
Key Features
- For Synology Servers
- 2 x 3.5 / 2.5" SAS Drive Bays
- 2 x Mini-SAS In Ports
- 2 x Mini-SAS Out Ports
- Hot-Swappable Drive Bays
- Rack-Mountable Design
- Redundant Power Supply
- Two SAS Modules
Applied Models | ||
|---|---|---|
| Supports creating volumes across different units | SA3200D | |
| Supports creating volumes on a single unit only | UC3200 | |
Storage | ||
| Drive Bays | 12 | |
| Compatible Drive Type* (See all supported drives) |
| |
| Maximum Internal Raw Capacity | 192 TB (16 TB drive x 12) (Capacity may vary by RAID types) | |
| Hot Swappable Drive* | ✓ | |
| Notes |
| |

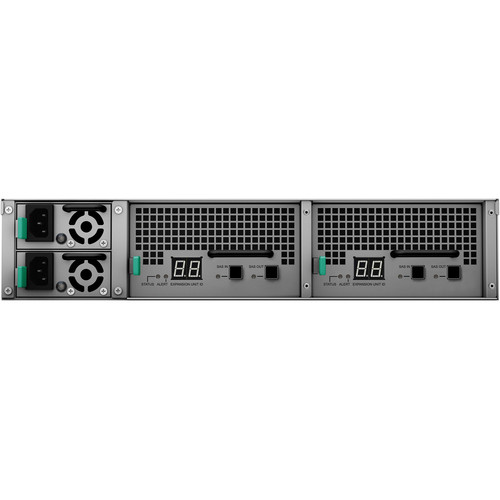

External Ports | ||
| SAS IN-port | 2 | |
| SAS OUT-port | 2 | |
Appearance | ||
| Size (Height x Width x Depth) | 88 mm x 430.5 mm x 692 mm | |
| Size (Height x Width x Depth) (with server ears) | 88 mm x 482 mm x 724 mm | |
| Weight | 18.2 kg | |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS-02) | |
| Notes | The rail kit is sold separately | |
Power | ||
| Power Supply Unit / Adapter | 500 W | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 299.79 W (Access) | |
| British Thermal Unit | 1022.93 BTU/hr (Access) | |
| Redundant Power Supply (for RP model) | ✓ | |
| Notes | Power consumption is measured when it is fully loaded with Seagate ST3600057SS hard drive(s). | |
Temperature | ||
| Operating Temperature | 0°C to 35°C (32°F to 95°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
Others | ||
| System Fan | 60 mm x 60 mm x 4 pcs | |
| Easy Replacement System Fan | ✓ | |
| Noise Level* | 60.9 dB(A) | |
| Notes | Noise Level Testing Environment: Fully loaded with Seagate ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology expansion unit at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%. | |
Certification | ||
| ||
Warranty | ||
| 5 Years | ||
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Environment & Packaging | ||
Environment | ||
| RoHS Compliant | ||
Packaging Content | ||
| ||
Optional Accessories | ||
