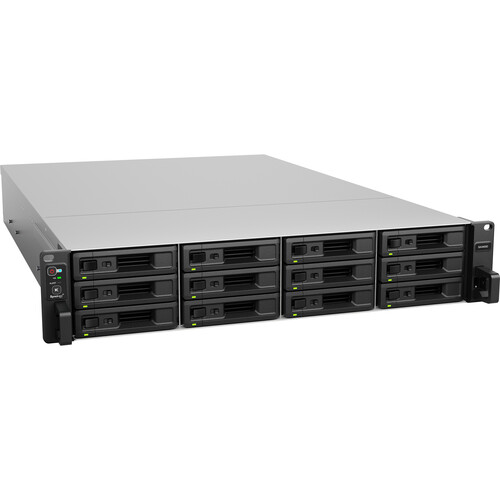

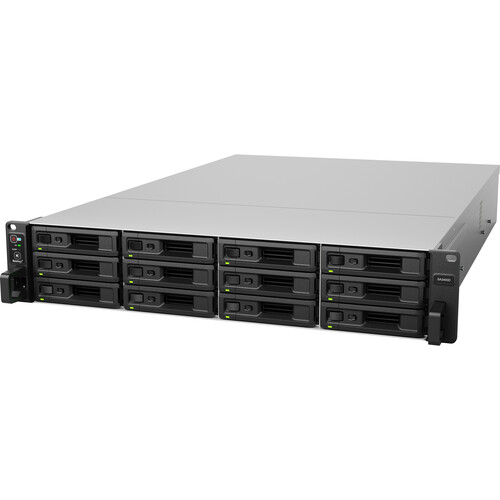

Synology SA3400D 12-Bay Active-Passive NAS Enclosure with Dual Controllers
Buy Synology SA3400D 12-Bay Active-Passive NAS Enclosure with Dual Controllers, Synology from Printer Bullet - Everything for office. Fast & Free Home Delivery....
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Form factor | Rackmount |
Product details
Key Features
- 12 x 3.5"/2.5" SAS Drive Bays
- 2 x 2.1 GHz Intel Xeon D-1541 8-Core CPU
- 16GB of DDR4 ECC RAM
- 2 x 10Gb Ethernet | 4 x Gigabit Ethernet
- 2 x Mini-SAS HD Expansion Ports
- 2 x PCIe 3.0 x8/x8 Slots
- RAID 0, 1, 5, 6, 10, Basic, F1, and JBOD
- Dual Redundant 500W Power Supplies
- AES-NI Hardware Encryption Engine
- Synology DiskStation Manager OS
Controller | ||
|---|---|---|
| Number of Controller Module | 2 | |
CPU | ||
| CPU Model | Intel Xeon D-1541 | |
| CPU Quantity | 1 (per controller) | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 8-core 2.1 (base) / 2.7 (turbo) GHz | |
| Hardware Encryption Engine (AES-NI) | ||
Memory | ||
| System Memory | 8 GB DDR4 ECC UDIMM (per controller) | |
| Memory Module Pre-installed | 8 GB (8 GB x 1) (per controller) | |
| Total Memory Slots | 4 (per controller) | |
| Maximum Memory Capacity | 64 GB (16 GB x 4) (per controller) | |
| Notes |
| |
Storage | ||
| Drive Bays | 12 | |
| Maximum Drive Bays with Expansion Unit | 36 (RXD1219sas x 2) | |
| Compatible Drive Type* (See all supported drives) |
| |
| Hot Swappable Drive* | ||
| Notes |
| |

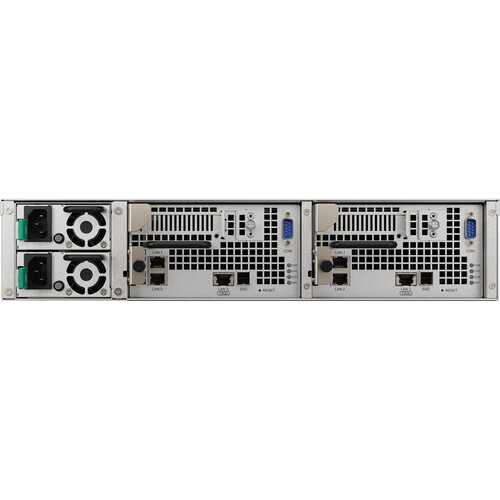

External Ports | ||
| RJ-45 1GbE LAN Port | 2 (with Link Aggregation / Failover support) (per controller) | |
| RJ-45 10GbE LAN Port | 1 (per controller) | |
| Expansion Port | 1 | |
| Notes | This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. | |
PCIe | ||
| PCIe Expansion | 1 x Gen3 x8 slot (x8 link) (per controller) | |
File System | ||
| Internal Drives |
| |
Appearance | ||
| Form Factor (RU) | 2U | |
| Size (Height x Width x Depth) | 88 mm x 482 mm x 724 mm | |
| Weight | 19.7 kg | |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS-02) | |
| Notes | The rail kit is sold separately | |
Others | ||
| System Fan | 60 mm x 60 mm x 2 pcs | |
| Fan Speed Mode |
| |
| Easy Replacement System Fan | ||
| Power Recovery | ||
| Noise Level* | 51.3 dB(A) | |
| Power Supply Unit / Adapter | 500 W | |
| Redundant Power Supply | ||
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 257.78 W (Access) | |
| British Thermal Unit | 879.58 BTU/hr (Access) | |
| Notes |
| |
Temperature | ||
| Operating Temperature | 0°C to 35°C (32°F to 95°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
Certification | ||
| ||
Warranty | ||
| 5 Years | ||
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Environment | ||
| RoHS Compliant | ||
Packaging Content | ||
| ||
Optional Accessories | ||
| ||
| Notes | Installing memory modules with differing capacities is not recommended. Check the Hardware Installation Guide of your Synology product for recommended memory configurations. | |
