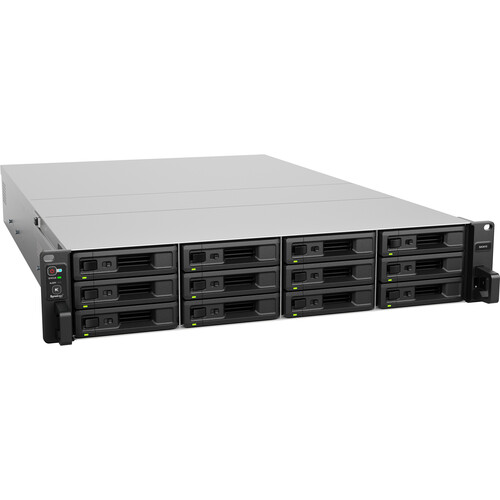

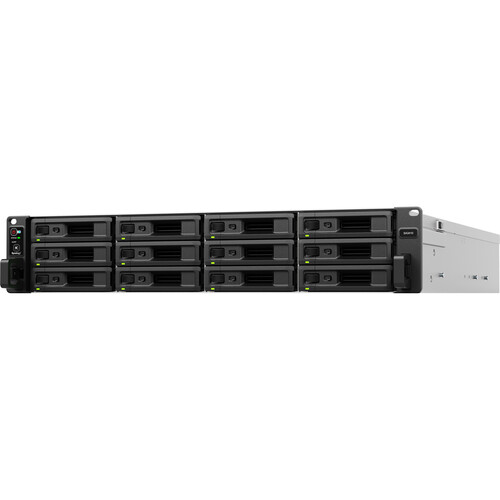

Synology SA3410 12-Bay NAS Enclosure
Synology · NAS & Storage

Synology SA3410 12-Bay NAS Enclosure

Synology SA3410 12-Bay NAS Enclosure - Key Features12 x 2.

Quote on request
✓ Available to order · supplied & installed in Malaysia
Request Quotation WhatsApp Ask a question
  • Genuine unit through the authorised channel — manufacturer warranty
  • Itemised quotation within 1 working day, B2B invoicing
  • Delivery nationwide — installation available for enterprise gear
Key specifications
Form factor Rackmount
Full specifications ↓

Product details

Key Features
  • 12 x 2.5"/3.5" SAS-3/SATA III Drive Bays
  • 2.1 GHz Intel Xeon D-1541 8-Core
  • 16GB of DDR4 ECC RAM
  • 2 x 10 Gigabit Ethernet Ports
  • 4 x Gigabit Ethernet Ports
  • 2 x USB-A 3.2 Gen 1 Ports
  • RAID 0, 1, 5, 6, 10, F1, Basic, and JBOD
  • Sequential Read Speeds up to 6200 MB/s
  • Sequential Write Speeds up to 3000 MB/s
  • AES 256-Bit Volume Encryption


CPU

CPU Model

SA3410: Intel Xeon D-1541

CPU Quantity

SA3410: 1

CPU Architecture

SA3410: 64-bit

CPU Frequency

SA3410: 8-core 2.1 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine (AES-NI)

SA3410: Yes

Memory

System Memory

SA3410: 16 GB DDR4 ECC RDIMM

Memory Module Pre-installed

SA3410: 16 GB (16 GB x 1)

Total Memory Slots

SA3410: 4

Maximum Memory Capacity

SA3410: 128 GB (32 GB x 4)

Notes

SA3410:

  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • Installing memory modules with differing capacities is not recommended. Check the Hardware Installation Guide of your Synology product for recommended memory configurations.

Storage

Drive Bays

SA3410: 12

Maximum Drive Bays with Expansion Unit

SA3410: 96 (RX1222sas x 7)

Compatible Drive Type* (See all supported drives)

SA3410:

  • 3.5" SAS HDD
  • 2.5" SAS SSD
  • 3.5" SATA HDD
  • 2.5" SATA SSD

Hot Swappable Drive*

SA3410: Yes

Notes

SA3410:

  • It is strongly recommended that you only install drives listed on your device's compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

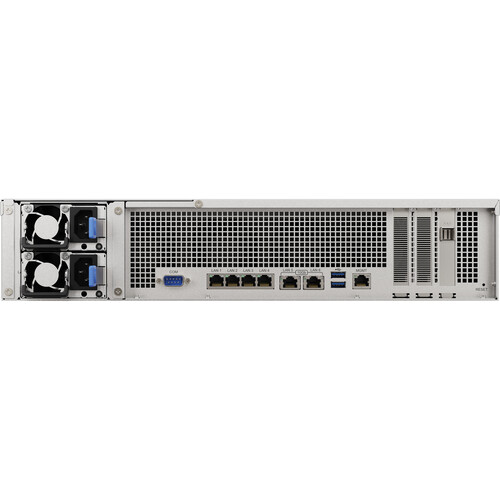

External Ports

RJ-45 1GbE LAN Port

SA3410: 4 (with Link Aggregation / Failover support)

RJ-45 10GbE LAN Port

SA3410: 2 (with Link Aggregation / Failover support)

Out-of-Band Management LAN Port

SA3410: 1

Max. number of LAN ports

SA3410: 15

USB 3.2 Gen 1 Port*

SA3410: 2

Expansion Port

SA3410: 1

Notes

SA3410:

  • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

PCIe Expansion

SA3410: 2 x Gen3 x8 slots (x8 link)

File System

Internal Drives

SA3410:

  • Btrfs
  • EXT4

External Drives

SA3410:

  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT

Appearance

Form Factor (RU)

SA3410: 2U

Size (Height x Width x Depth)

SA3410: 88 mm x 482 mm x 724 mm

Weight

SA3410: 14.5 kg

Rack Installation Support*

SA3410: 4-post 19" rack (Synology Rail Kit - RKS-02)

Notes

SA3410: The rail kit is sold separately

Others

System Fan

SA3410: 80 mm x 80 mm x 4 pcs

Fan Speed Mode

SA3410:

  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode

Easy Replacement System Fan

SA3410: Yes

Power Recovery

SA3410: Yes

Noise Level*

SA3410: 49.8 dB(A)

Scheduled Power On / Off

SA3410: Yes

Wake on LAN / WAN

SA3410: Yes

Power Supply Unit / Adapter

SA3410: 550 W

Redundant Power Supply

SA3410: Yes

AC Input Power Voltage

SA3410: 100V to 240V AC

Power Frequency

SA3410: 50/60 Hz, Single Phase

Power Consumption

SA3410: 136.15 W (Access)

58.48 W (HDD Hibernation)

British Thermal Unit

SA3410: 464.56 BTU/hr (Access)
199.54 BTU/hr (HDD Hibernation)

Notes

SA3410:

  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.

Temperature

Operating Temperature

SA3410: 0°C to 35°C (32°F to 95°F)

Storage Temperature

SA3410: -20°C to 60°C (-5°F to 140°F)

Relative Humidity

SA3410: 5% to 95% RH

Certification

SA3410:

  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • UL

Warranty

SA3410: 5 Years

Notes

SA3410: The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

SA3410: RoHS Compliant

Packaging Content

SA3410:

  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1

Optional Accessories

SA3410:

  • DDR4 ECC RDIMM: D4ER01-16G*/D4ER01-32G
  • Expansion Units: RX1222sas
  • 3.5" SAS HDD: HAS5300
  • 3.5" SATA HDD: HAT5300
  • 2.5" SATA SSD: SAT5210
