Ubiquiti AmpliFi Instant Home WiFi Router - AFI-INS-R
Ubiquiti AmpliFi Instant Home WiFi Router - AFI-INS-R -
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Dimensions | 99.5 x 97.8 x 33.05 mm |
| Weight | 0.215 kg |
| Max TX Power | 22 dBm |
| Speed | 2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps |
| Interface | Gigabit Ethernet WAN, Gigabit Ethernet LAN |
Product details

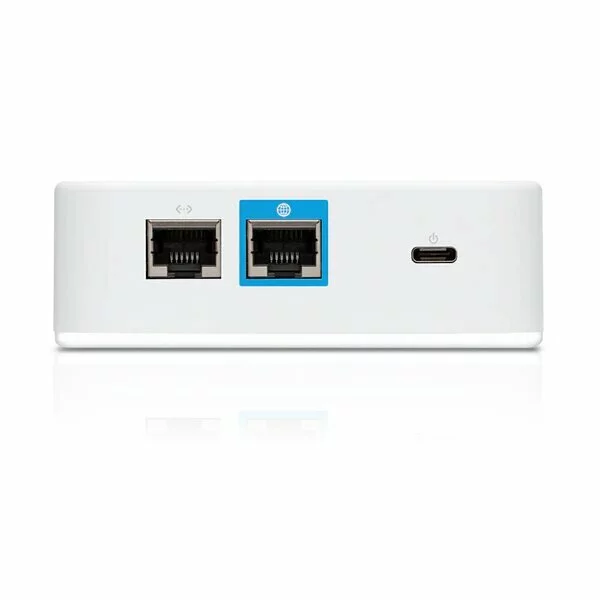

- The AmpliFi Instant Router features an easy-to-use touchscreen display, one Gigabit Ethernet port, a WAN port, and an Ethernet cable. The AmpliFi Router provides excellent coverage for standard-sized homes of approximately 2,000 sq ft. Expand as needed by adding MeshPoints to your mesh Wi-Fi system.
| Router Specifications | |
|---|---|
| Dimensions | 99.5 x 97.8 x 33.05 mm (3.92 x 3.85 x 1.30") |
| Weight | 0.215 kg (7.58 oz) |
| Max. TX Power | 22 dBm |
| Speeds | 2.4 GHz: 300 Mbps 5 GHz: 867 Mbps |
| Networking Interface | Wi-Fi (1) Gigabit Ethernet WAN (1) LAN |
| Max. Power Consumption | 9W |
| ESD/EMP Protection | ± 24kV Air/Contact |
| Buttons | Reset |
| Antennas | (1) Dual-Band Antenna, Single-Polarity |
| Display | 30.73 mm (1.21") Diagonal, 160 x 64, 142 ppi, Capacitive Touch, Grayscale |
| Wi-Fi Standards | 802.11ac |
| Power Save | Supported |
| Wireless Security | WPA2-PSK AES/TKIP |
| Operating Temperature | -10 to 55° C (14 to 131° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, CE, IC |
| Supported Data Rates (Mbps) | |
| 802.11ac | 13 Mbps to 866.7 Mbps (MCS0 - MCS9, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Supplied & supported by PrinterBullet
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Need help choosing?
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Dimensions | 99.5 x 97.8 x 33.05 mm |
| Weight | 0.215 kg |
| Max TX Power | 22 dBm |
| Speed | 2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps |
| Interface | Gigabit Ethernet WAN, Gigabit Ethernet LAN |
| Max Power Consumption | 9W |
| Display | 30.73 mm Diagonal, 160 x 64, Capacitive Touch, Grayscale |
| Wi-Fi Standards | 802.11ac |
Compare similar
Related products
Your research
You recently viewed
Frequently asked questions
How much does the Ubiquiti AmpliFi Instant Home WiFi Router - AFI-INS-R cost?
This product is quoted per project. Send us your requirements and we will prepare a quotation.
Is this product available in Malaysia?
Yes — available to order. Supplied and installed nationwide by RYZEN ESOLUTIONS (M) SDN. BHD..
Who manufactures the Ubiquiti AmpliFi Instant Home WiFi Router - AFI-INS-R?
It is manufactured by Ubiquiti. We supply genuine units with manufacturer warranty.
Do you provide installation and support?
Yes — we design, install, configure and support this product as part of a complete solution. Ask us about maintenance packages.
