Key specifications
Processor	Dual-Core 600 MHz, MIPS64 with Hardware Acceleration for Packet P
Dimensions	326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")
Weight	3.4 kg (7.50 lb)
Max Power Consumption	40W (Excludes PoE Output)
VDC Input	54VDC, 6A

Full specifications ↓

Product details

Ubiquiti Networks introduces the EdgePoint™, part of the EdgeMAX® platform. The first application-specific designed WISP control point, the EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile powering capabilities.

The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.

EP-R8
Dimensions With Wall-Mount	326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50") 326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15")
Weight With Wall-Mount	3.4 kg (7.50 lb) 3.8 kg (8.38 lb)
Enclosure Characteristics	Diecast Aluminum Alloy and Polycarbonate with UV Resistance
Max. Power Consumption	40W (Excludes PoE Output)
Power Input	(1) DC Terminal Block or (2) RJ45 (PoE In and eth0) (Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs)
Power Supply	Min. 54V / 0.8A (Excludes PoE Output Power)
VDC Input	54VDC, 6A
Passive PoE Input	(2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0 and PoE In (PoE In is DC Only, No Data)
Passive PoE Output	(2) 54V or 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth1 to eth2 (5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth3 to eth7
Power Monitoring	(1) DC Terminal Block, Input Power (2) RJ45, PoE In and eth0, Input Power
Supported Voltage Range	56 to 42VDC
Button	Reset
LEDs System eth0 eth1 to eth7 SFP	Power Speed/Link/Activity Speed/Link/Activity, PoE Speed/Link/Activity

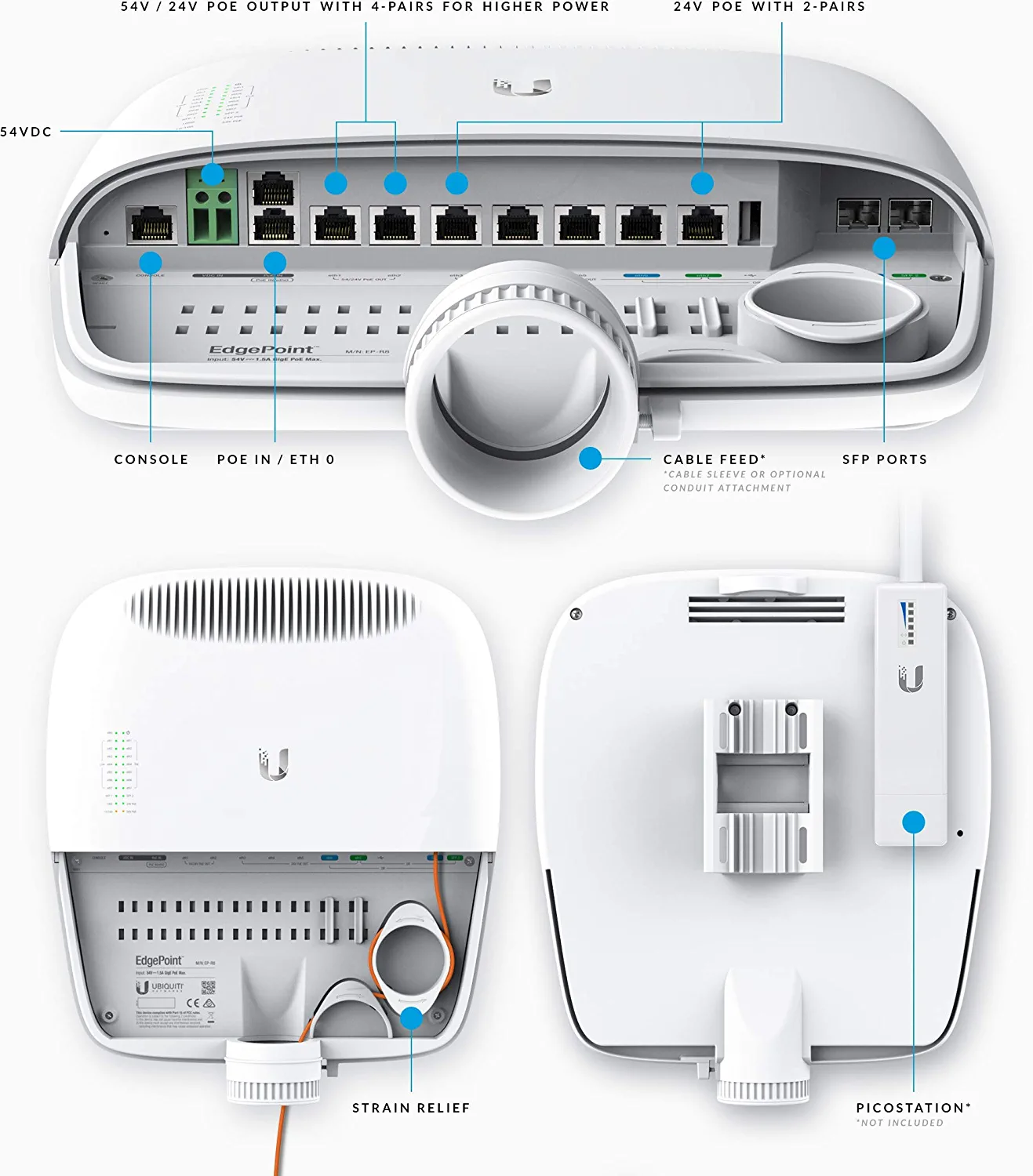

Ports Serial Console Port PoE In Port Data Ports	(1) RJ45 Serial Port (1) RJ45 Port (6) 10/100/1000 RJ45 Ports (2) 10/100/1000 RJ45/SFP Combination Ports
Processor	Dual-Core 600 MHz, MIPS64 with Hardware Acceleration for Packet Processing
System Memory	2 GB DDR3-1600 RAM
Code Storage	4 GB
Certifications	CE, FCC, IC
Pole/Wall Mount	Yes
Wind Loading	153 N @ 200 km/h (34 lbf @ 125 mph)
Wind Survivability	200 km/h (125 mph)
Operating Temperature	-40 to 65° C (-40 to 149° F)
Operating Humidity	10 to 90% Noncondensing

Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD

Delivery & professional installation
Configuration & migration
Manufacturer warranty handling
Annual maintenance & managed services (MSP)

Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

1700-81-8170 WhatsApp Request Quotation

Specifications

Printing & Imaging Specs
Processor	Dual-Core 600 MHz, MIPS64 with Hardware Acceleration for Packet P
Dimensions	326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")
Weight	3.4 kg (7.50 lb)
Max Power Consumption	40W (Excludes PoE Output)
VDC Input	54VDC, 6A
Data Ports	(6) 10/100/1000 RJ45 Ports, (2) 10/100/1000 RJ45/SFP Combination Ports
Enclosure Material	Diecast Aluminum Alloy and Polycarbonate with UV Resistance
Supported Voltage Range	56 to 42VDC
