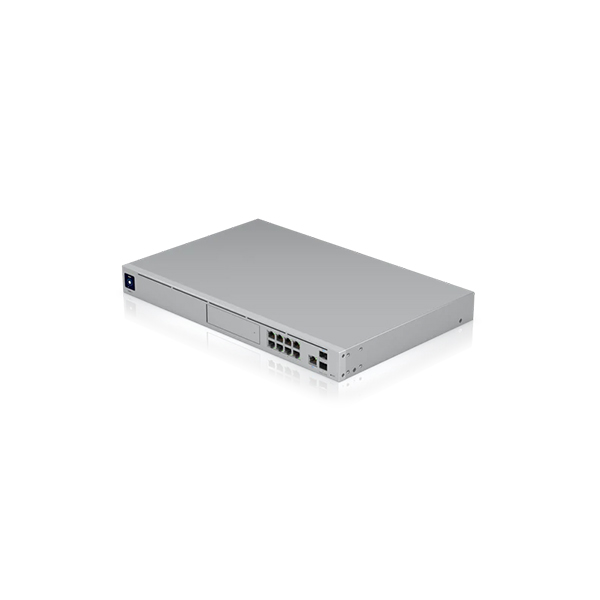

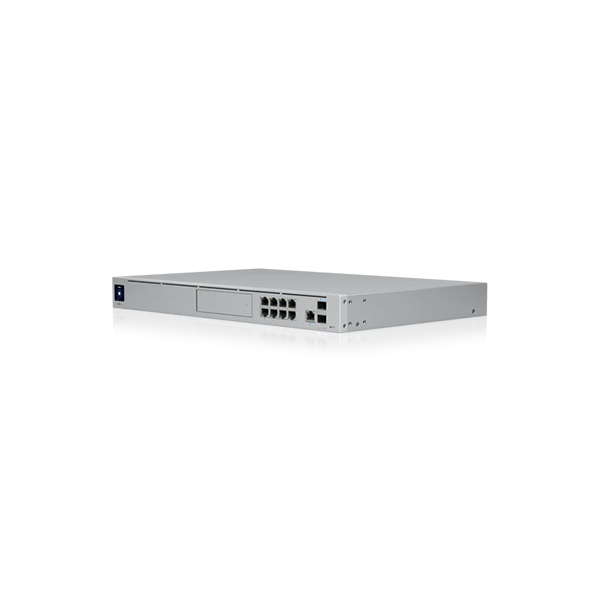

Ubiquiti Networks UniFi Dream Machine Pro All-In-One Enterprise Security Gateway & Network Appliance (UDM-PRO)
Ubiquiti Networks UniFi Dream Machine Pro All-In-One Enterprise Security Gateway & Network Appliance (UDM-PRO) -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Processor | Quad ARM Cortex-A57 Core at 1.7 GHz |
| System Memory | 4 GB DDR4 |
| Storage | 16 GB eMMC |
| LAN Ports | 8x 10/100/1000 RJ45 + 1x 1/10G SFP+ |
| WAN Ports | 1x 10/100/1000 RJ45 + 1x 1/10G SFP+ |
Product details
The UDM Pro is an all-in-one networking console that runs every UniFi OS application, like Network and Protect. It features a built-in security gateway, 10G SFP+ WAN support, an 8-port Gigabit switch, and network video recorder that supports compatible 3.5" hard disk drives (HDDs).
- Runs every UAP OS application, including the pre-installed UAP Network
- 8-port switch with 1GbE RJ45 and 10G SFP+ ports
- Integrated security gateway and UAP Protect-ready network video recorder that supports compatible 3.5" HDDs
- Enterprise-class internet threat management, deep packet inspection, and WiFi AI functionality
- Powered by a fast, 1.7 GHz quad-core processor
- 1U-sized, rack-mountable console
- Allows you to easily scale your deployment by connecting additional UAP devices
DIMENSIONS
- Width x Height x Depth:
- 442.4 x 43.7 x 285.6 mm
- (17.42 x 1.72 x 11.24")
- Weight: 3.90 kg (8.60 lb)
- With Mounting Kits:
- 3.99 kg (8.80 lb)
PACKAGE CONTENTS
- (2) Rackmount Brackets
- (8) Bracket Screws
- (4) Mounting Screws
- (4) Cage Nuts
- (1) Security Screw
- (4) 2.5" HDD Screws
- Power Cord
- (4) Rubber Feet
TECHNICAL SPECIFICATIONS
- (8) 10/100/1000 RJ45 LAN Ports
- (1) 10/100/1000 RJ45 WAN Port
- (1) 1/10G SFP+ LAN Port
- (1) 1/10G SFP+ WAN Port
- Ethernet In-Band
- (1) Bluetooth BLE
- Technical Information
- IDS/IPS Throughput: 3.5 Gbps *
- Processor: Quad ARM Cortex-A57 Core at 1.7 GHz
- System Memory: 4 GB DDR4
- On-Board Flash Storage: 16 GB eMMC
- * Measured with iPerf3.
- Operating Temperature: -10° to 40° C (14° to 104° F)
- Operating Humidity: 5 to 95% Noncondensing
- Max. Power Consumption: 33W
- Voltage Range: 100 to 240VAC
- Power Method: (1) Universal AC Input, 100-240VAC, 50/60 Hz
- Redundant Power: (1) RPS DC Input
- Power Supply: Internal 50W/12V
- ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
Certifications
- CE, FCC, IC
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Processor | Quad ARM Cortex-A57 Core at 1.7 GHz |
| System Memory | 4 GB DDR4 |
| Storage | 16 GB eMMC |
| LAN Ports | 8x 10/100/1000 RJ45 + 1x 1/10G SFP+ |
| WAN Ports | 1x 10/100/1000 RJ45 + 1x 1/10G SFP+ |
| IDS/IPS Throughput | 3.5 Gbps |
| Max Power Consumption | 33W |
| Dimensions | 442.4 x 43.7 x 285.6 mm |
Related products
You recently viewed
Frequently asked questions
How much does the Ubiquiti Networks UniFi Dream Machine Pro All-In-One Enterprise Security Gateway & Network Appliance (UDM-PRO) cost?
This product is quoted per project. Send us your requirements and we will prepare a quotation.
Is this product available in Malaysia?
Yes — available to order. Supplied and installed nationwide by RYZEN ESOLUTIONS (M) SDN BHD.
Who manufactures the Ubiquiti Networks UniFi Dream Machine Pro All-In-One Enterprise Security Gateway & Network Appliance (UDM-PRO)?
It is manufactured by Ubiquiti. We supply genuine units with manufacturer warranty.
Do you provide installation and support?
Yes — we design, install, configure and support this product as part of a complete solution. Ask us about maintenance packages.
