Ubiquiti Networks UniFi Switch PRO 48 | Gigabit Switch with Layer 3 Features and SFP+ (USW-Pro-48)
Buy Ubiquiti Networks UniFi Switch PRO 48 | Gigabit Switch with Layer 3 Features and SFP+ (USW-Pro-48), Ubiquiti from Printer Bullet - Everything for office. Fa...
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Ports (Gigabit RJ45) | 48 |
| Ports (10G SFP+) | 4 |
| Switching Capacity | 176 Gbps |
| Non-Blocking Throughput | 88 Gbps |
| Power Consumption | 60W |
Product details
- (1) 1.3" LCM color touchscreen with AR switch management
- (48) GbE RJ45 ports
- (4) 10G SFP+ ports
- (1) USP RPS DC input
- Near-silent cooling
- Layer 3 switching features

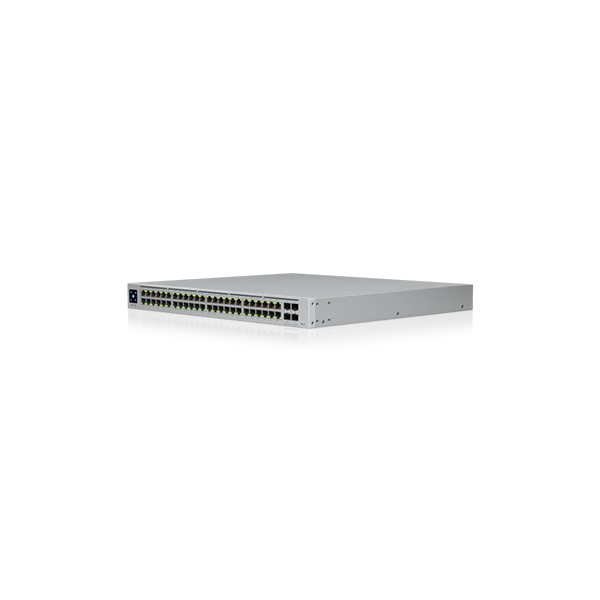

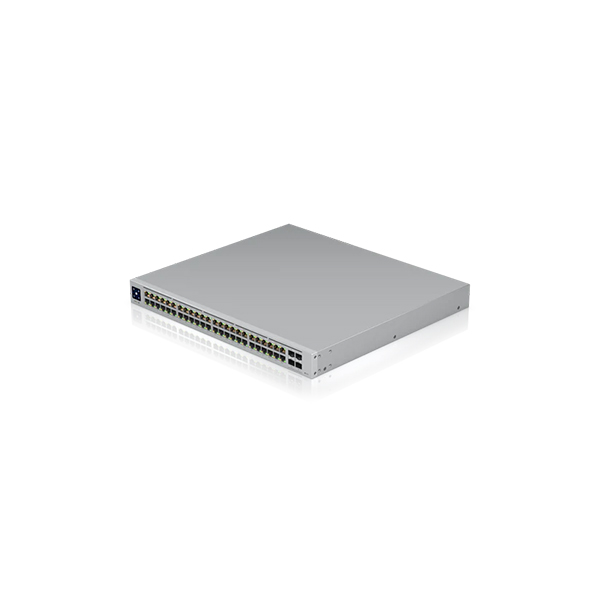

The Switch Pro 48 (USW Pro 48) is a fully managed switch with (48) GbE RJ45 ports and (4) 10G SFP+ ports. The USW Pro 48 combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The USW Pro 48 is an ideal aggregation and access layer switch for any UAP system. It combines innovative, near-silent cooling capability with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UAP Network web application and mobile app.
Features:
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72") |
| Weight With Brackets | 4.00 kg (8.82 lb) 4.09 kg (9.02 lb) |
| Interfaces Networking Management | (48) 10/100/1000 RJ45 Ports (4) 1/10G SFP+ Ethernet Ports Ethernet In-Band |
| Total Non-Blocking Throughput | 88 Gbps |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.944 Mpps |
| Power Method Universal Input USP RPS DC Input | 100-240VAC, 50/60 Hz 11.5VDC, 5.22A |
| Power Supply | AC/DC, Internal, 60W |
| Voltage Range | 100 to 240VAC |
| Max Power Consumption | 60W |
| LEDs RJ45 Data Ports SFP+ Data Ports | Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Ports (Gigabit RJ45) | 48 |
| Ports (10G SFP+) | 4 |
| Switching Capacity | 176 Gbps |
| Non-Blocking Throughput | 88 Gbps |
| Power Consumption | 60W |
| Operating Temperature | -5 to 45°C |
| Dimensions | 442.4 x 285.4 x 43.7 mm |
| Weight | 4.00 kg |
