Ubiquiti UMA-D the UAP Antenna, model UMA-D, is an optional mesh antenna designed to work with the Access Point Mesh and model UAP-AC-M
Ubiquiti UMA-D the UAP Antenna, model UMA-D, is an optional mesh antenna designed to work with the Access Point Mesh and model UAP-AC-M -
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Dimensions | 201.3*128*32.5 mm |
| Weight | 400g without mount, 480g with mount |
| Enclosure | Outdoor UV Stabilized Plastic |
| RF Connections | (2) RP-SMA |
| Supported Frequency Range | 2.4-2.5GHz, 5.1-5.9GHz |
Product details
- Outdoor Weather-Resistant Enclosure
- High Efficiency Directional Radiation Pattern
- Dual-Band, Dual-Polarity Optimized for 802.11ac

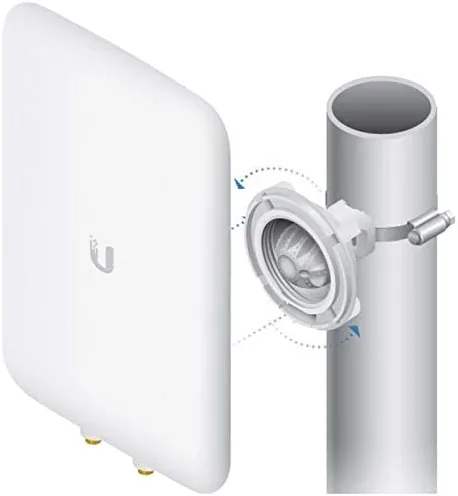

- Ball Joint 3-Axis Mount for Precise Aiming
- Wall/Poll Mount Included for Versatile Installation
With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping.
Features:
| UMA-D | |
|---|---|
| Dimensions | 201.3*128*32.5 mm |
| Weight | 400g without mount 480g with mount |
| Enclosure Characteristics | Outdoor UV Stabilized Plastic |

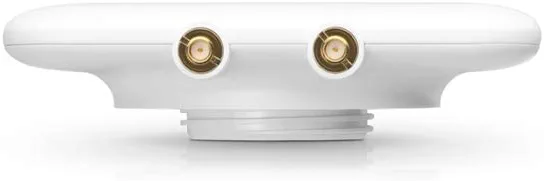

| RF Connections | (2) RP-SMA |
| Supported Frequency Range | 2.4-2.5GHz, 5.1-5.9GHz |
| 2.4GHz Band | |
| Gain | 10dBi |
| HPOL Beamwidth | 90 |
| VPOL Beamwidth | 90 |
| Elevation Beamwidth | 90 |
| Maximum VSWR | 2:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 25dB |
| 5GHz Band | |
| Gain | 15dBi |
| HPOL Beamwidth | 45 |
| VPOL Beamwidth | 45 |
| Elevation Beamwidth | 45 |
| Maximum VSWR | 2:1 |
| Polarization | Dual-linear |
| Cross-Pol Isolation | 30dB |
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Need help choosing?
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Dimensions | 201.3*128*32.5 mm |
| Weight | 400g without mount, 480g with mount |
| Enclosure | Outdoor UV Stabilized Plastic |
| RF Connections | (2) RP-SMA |
| Supported Frequency Range | 2.4-2.5GHz, 5.1-5.9GHz |
| 2.4GHz Gain | 10dBi |
| 5GHz Gain | 15dBi |
| Polarization | Dual-Linear |
