Ubiquiti USW-48 Layer 2 switch with (48) GbE RJ45 ports and (4) 1G SFP ports
Ubiquiti USW-48 Layer 2 switch with (48) GbE RJ45 ports and (4) 1G SFP ports -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Ethernet Ports | (48) 10/100/1000 Mbps |
| SFP Ports | (4) 1 Gbps |
| Non-Blocking Line Rate | 52 Gbps |
| Max Power Consumption | 40W |
| Dimensions | 442.4 x 285 x 43.7 mm |
Product details
- (1) 1.3" LCM color touchscreen with AR switch management
- (48) GbE RJ45 ports
- (4) 1G SFP ports
- Fanless, silent cooling

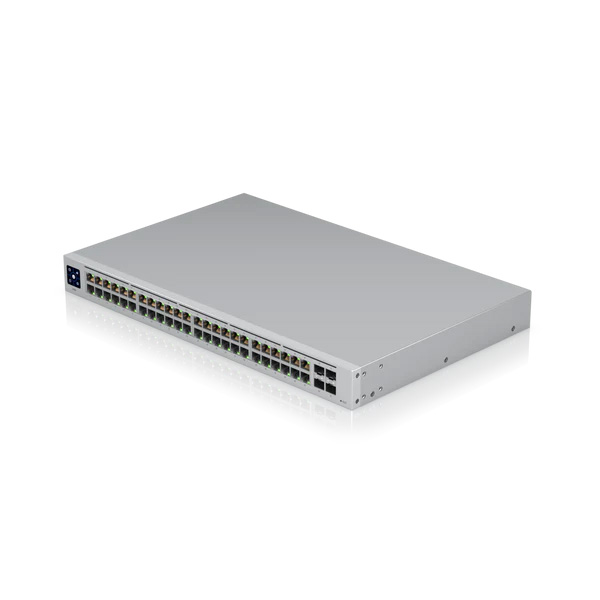

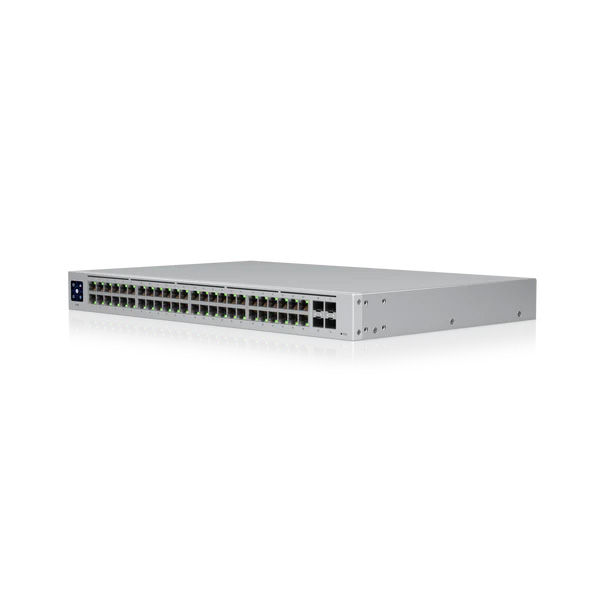

The Switch 48 (USW 48) is a fully managed, fanless switch with (48) GbE RJ45 ports and (4) 1G SFP ports. The versatile USW 48 provides Gigabit links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network. The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can also be monitored or configured from anywhere with the powerful, intuitive UAP Network web application and mobile app.
Features:
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72") |
| Weight | Without Mount: 3.9 kg (8.6 lb) With Mount: 3.99 kg (8.8 lb) |
| Enclosure Characteristics | SGCC Steel |
| Hardware | |
| Total Non-Blocking Line Rate | 52 Gbps |
| Max. Power Consumption | 40W |
| Forwarding Rate | 77.376 Mpps |
| Power Method | Universal AC Input: 100-240VAC, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| Supported Voltage Range | 100 - 240VAC |
| Networking Interfaces | (48) 10/100/1000 Mbps Ethernet RJ45 Ports (4) 1 Gbps SFP Ports |
| Management Interface | Ethernet In-Band |
| Modes | SMB Layer 2 Gigabit Ethernet Switch |
| Operating Temperature | -15 to 40° C (5 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | Green: 1G, Amber: 10/100 Mbps |
| SFP | Green: 1G |
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Ethernet Ports | (48) 10/100/1000 Mbps |
| SFP Ports | (4) 1 Gbps |
| Non-Blocking Line Rate | 52 Gbps |
| Max Power Consumption | 40W |
| Dimensions | 442.4 x 285 x 43.7 mm |
| Weight | 3.9 kg |
| Operating Temperature | -15 to 40° C |
| Interface | Ethernet In-Band |
