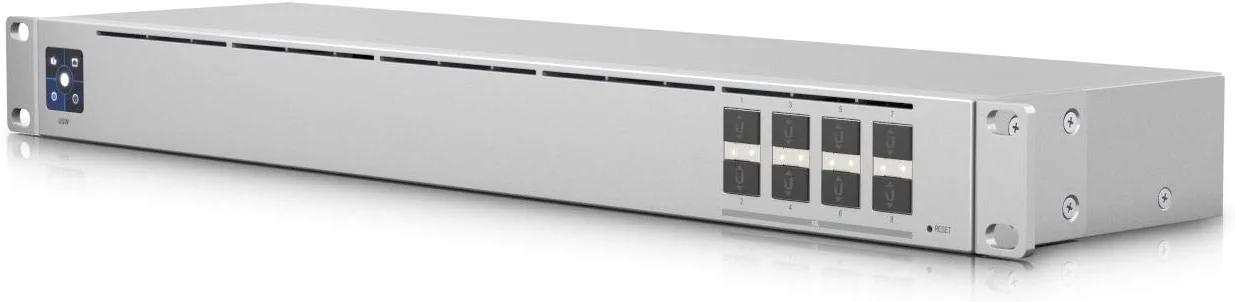

Ubiquiti USW-Aggregation Layer 2 switch with (8) 10G SFP+ ports
Ubiquiti USW-Aggregation Layer 2 switch with (8) 10G SFP+ ports -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Ports | (8) 10G SFP+ |
| Switching Capacity | 160 Gbps |
| Throughput | 80 Gbps |
| Forwarding Rate | 119.04 Mpps |
| Power Consumption | 30W |
Product details
- (1) 1.3" LCM color touchscreen with AR switch management
- (8) 10G SFP+ ports
- 160 Gbps switching capacity
- Fanless, near-silent cooling
The Switch Aggregation is a fully managed, Layer 2 switch with (8) 10G SFP+ ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 160 Gbps switching capacity and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. Additionally, with its 4.7" depth, it's easy to mount this compact, fanless switch in a SOHO rack cabinet. This switch can be monitored or configured from anywhere with the powerful, intuitive UAP Network web application and mobile app.
Features:
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72") |
| Weight Without Mount With Mount | 2.65 kg (5.84 lb) 2.74 kg (6.04 lb) |
| Enclosure Material | SGCC Steel |
| Hardware | |
| Total Non-Blocking Throughput | 80 Gbps |
| Switching Capacity | 160 Gbps |
| Forwarding Rate | 119.04 Mpps |
| Max. Power Consumption | 30W |
| Power Method | Universal AC Input: 100-240VAC, 50/60 Hz |
| Power Supply | AC/DC, Internal, 36W |
| Management Interface | Ethernet In-Band |
| Modes | SMB Layer 2 Gigabit Ethernet Switch |
| Max. Number of Supported SFP+ Modules | UACC-OM-MM-10G: 8 UACC-OM-SM-10G: 8 UACC-CM-RJ45-10G: 4 |
| ESD/EMP Protection | Air: ± 16kV, Contact: ± 12kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| LED | |
| System (1) Bootup Animation Firmware Upgrade Icon Steady White Steady Blue SFP+ | Bootup in Progress Firmware Upgrading Factory Defaults, Awaiting Adoption Device is Adopted White: 10G, 1G |
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Ports | (8) 10G SFP+ |
| Switching Capacity | 160 Gbps |
| Throughput | 80 Gbps |
| Forwarding Rate | 119.04 Mpps |
| Power Consumption | 30W |
| Dimensions | 442.4 x 120 x 43.7 mm |
| Weight | 2.65 kg |
| Operating Temperature | -5 to 40° C |
