Ubiquiti USW-Flex-Mini UniFi Switch Compact Gigabit 5-Port 802.3af/at PoE
Buy Ubiquiti USW-Flex-Mini UniFi Switch Compact Gigabit 5-Port 802.3af/at PoE, Ubiquiti from Printer Bullet - Everything for office. Fast & Free Home Delivery....
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Ports | 5 GbE RJ45 ports |
| PoE Input | 802.3af/at PoE |
| Dimensions | 107.16 x 70.15 x 21.17 mm |
| Weight | 150 g |
| Throughput | 5 Gbps |
Product details
- (1) GbE, 802.3af PoE RJ45 input
- (4) GbE RJ45 ports
- Compact, slim housing
- Can be powered with a 5V, 1A USB-C adapter*

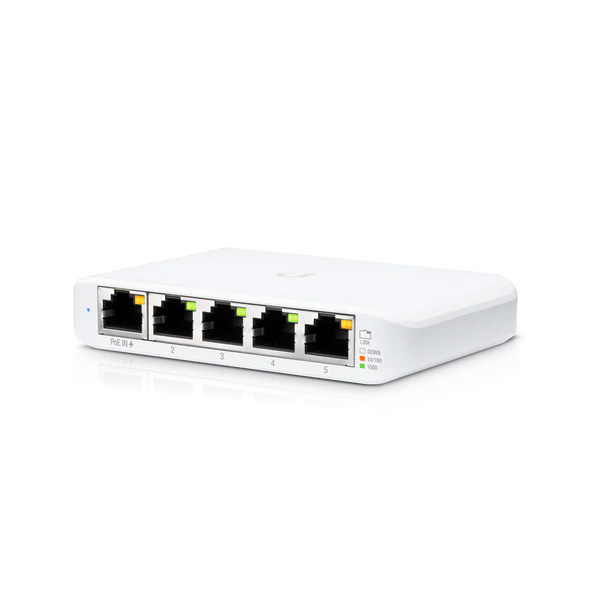

The Switch Flex Mini (USW Flex Mini) is a fully managed, Layer 2 switch with (5) GbE RJ45 ports, including (1) 802.3af PoE input. The USW Flex Mini can be powered with either PoE (via Port 1) or its included USB-C power adapter*. This switch can also be monitored or configured from anywhere with the powerful, intuitive USW Network web application and mobile app.
Features:
| Mechanical | |
|---|---|
| Dimensions | 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83") |
| Weight | 150 g (5.29 oz) |
| Interfaces Networking PoE In Management | (5) 10/100/1000 Mbps RJ45 Ports 802.3af/at PoE (Pins 1, 2+; 3, 6-) Ethernet In-Band |
| Total Non-Blocking Throughput | 5 Gbps |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 7.44 Mpps |
| Power Method | USB Type C, 5V 802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A) |
| Power Supply | 5V, 1A Power Adapter* |
| Voltage Range USB Type C 802.3af/at PoE | 4.7 - 5.3VDC 44 - 57VDC |
| Max. Power Consumption | 2.5W |
| LEDs System RJ45 Data Ports | Status Speed/Link/Activity |
| ESD/EMP Protection | ± 16kV Air, ± 12kV Contact |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
* Included only with the single-pack of the USW-Flex-Mini.
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Ports | 5 GbE RJ45 ports |
| PoE Input | 802.3af/at PoE |
| Dimensions | 107.16 x 70.15 x 21.17 mm |
| Weight | 150 g |
| Throughput | 5 Gbps |
| Switching Capacity | 10 Gbps |
| Max Power Consumption | 2.5W |
| Operating Temperature | -5 to 45°C |
